5.11 RC MONITOR AERIAL TRUCK INSTALLATION
When installing the electric RC monitor on an aerial device truck, refer
to section 5.11.2.1 or 5.11.2.2.

5.11.1 ELECTRONICS ENCLOSURE MOUNTING

Select proper enclosure location. Enclosure is designed to be surface
mounted and the size is 5-3/4" x 8-3/4" (146 x 222mm). Height of
enclosure is 2-1/4" (57mm). Refer to Figure 5.11.1 for mounting hole
dimensions.
5.11.2 ELECTRICAL WIRING
On aerial devices the installer will supply the required cables that run up the ladder or boom. Be sure to perform voltage drop
calculations to verify that the supply voltage will not fall below 11 volts during monitor operation.
5.11.2.1 LADDER INSTALLATION ELECTRICAL WIRING (-L MODELS)
The electronics enclosure converts discrete input signals into serial communications for controlling the monitor. The discrete input
signals can be from a joystick, toggle switches, relay contacts or Canbus output module. The electronic interface accepts +12/24
volt signals, but can be field changed to accept ground signals. See section 5.7.3.
The electronics enclosure is configured so that signals connected to the PRIMARY CONTROL cable will override any other
operator stations (see section 6.2.1).
See Figure 5.11.2.1 for wiring connections
NOTE: To avoid excessive voltage drop at monitor operator
station, cable selection is critical.
Voltage supplied to ELECTRONICS ENCLOSURE should not
fall below 11 volts when monitor is in operation.
©Copyright Task Force Tips, Inc. 2004-2005
Recommend Cable Gauge
Max Length
40 ft . . . . . . 14AWG
65 ft . . . . . . 12AWG
80 ft . . . . . . 2-14AWG
105 ft . . . . . . 10AWG
130 ft . . . . . 2-12AWG
Toggle Switch
Operator Station (Y4E-TS)
Sec 5.6

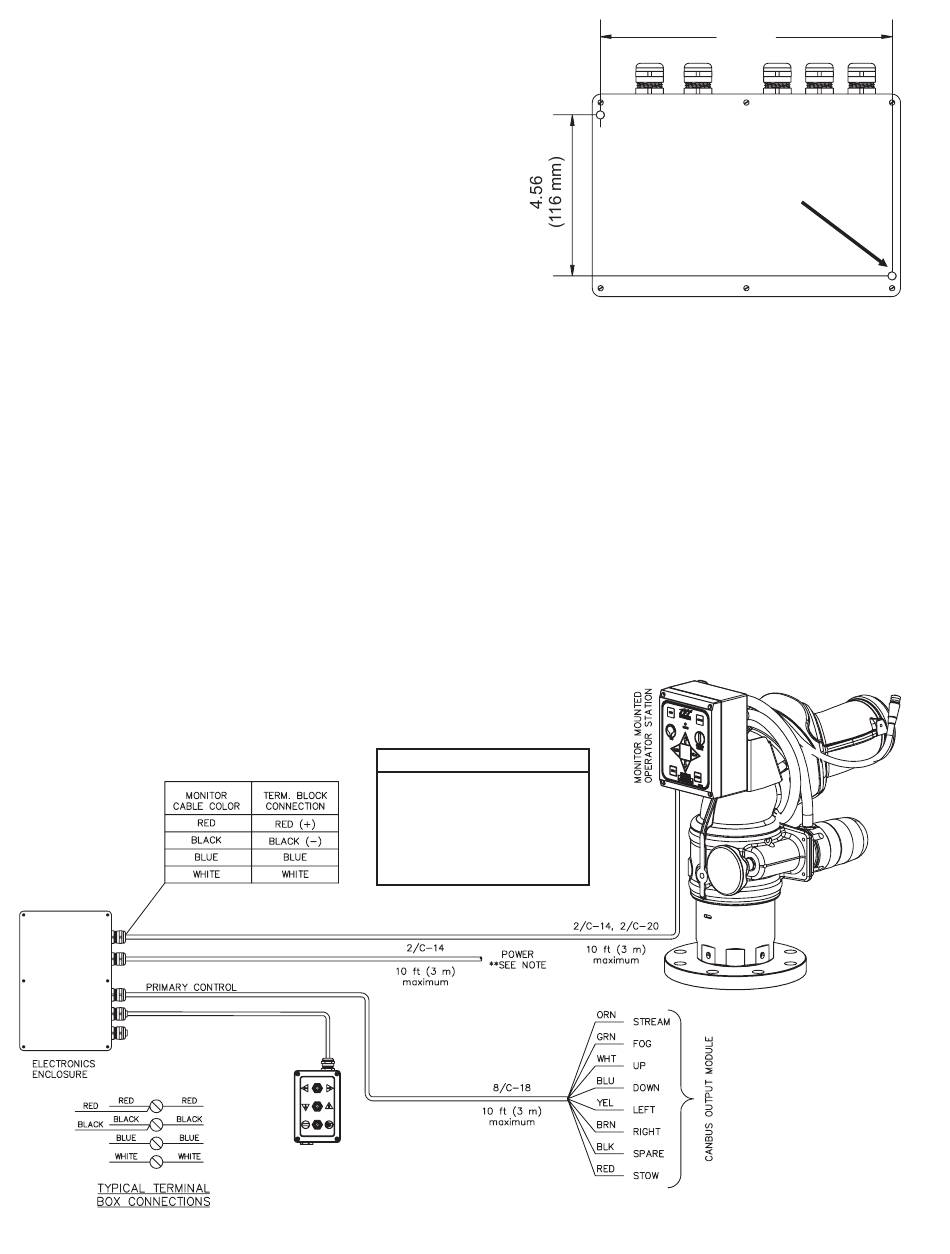

Figure 5.11.2.1
Electrical Components
(ladder installations)
MOUNT ENCLOSURE WITH
(2) 1/4-20 FASTENERS
TIGHTEN SECURELY
Gauge
24
8.25
(210 mm)
Fig 5.11.1
Electrical Enclosure
Mounting Hole Dimensions
