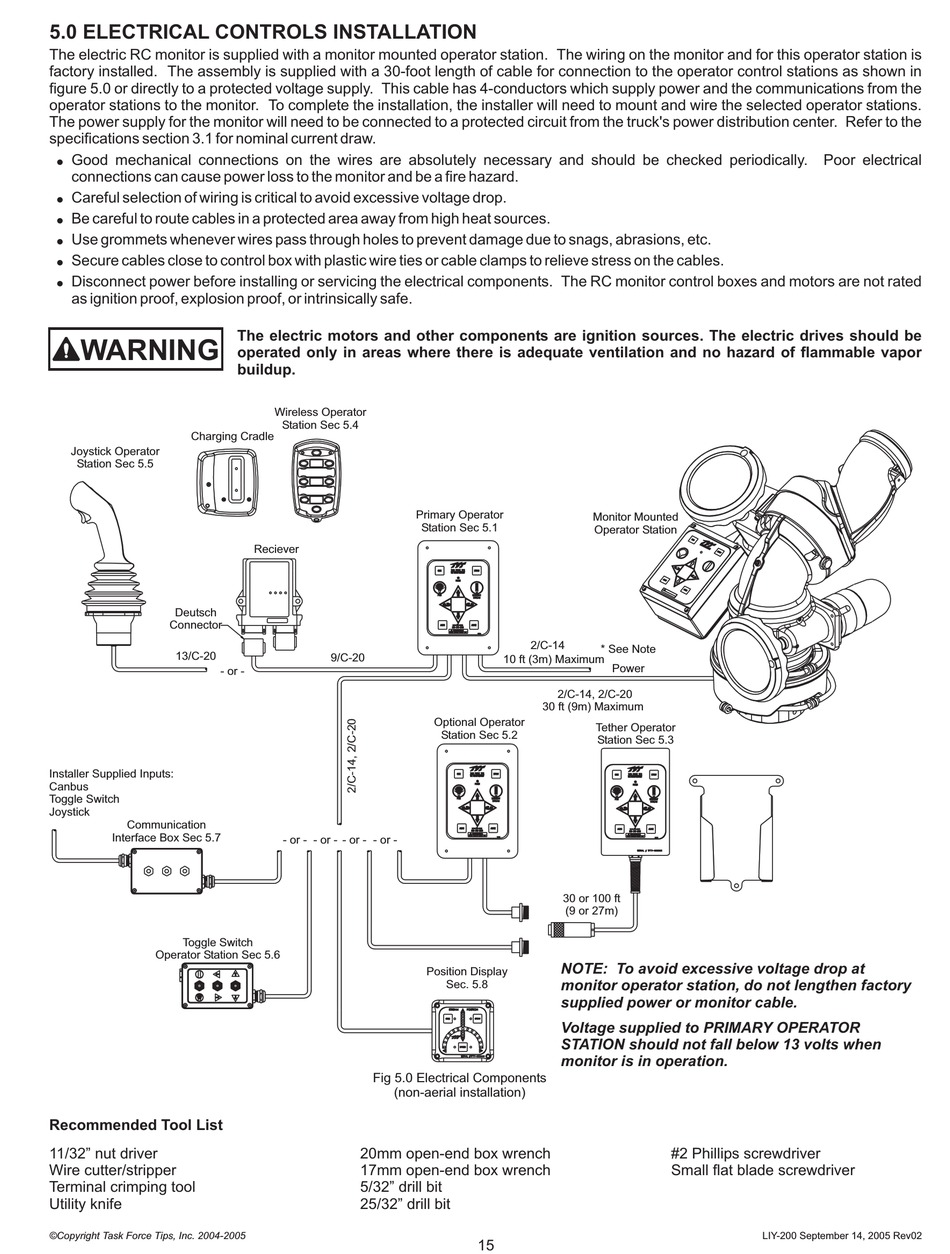

5.0 ELECTRICAL CONTROLS INSTALLATION
The electric RC monitor is supplied with a monitor mounted operator station. The wiring on the monitor and for this operator station is
factory installed. The assembly is supplied with a 30-foot length of cable for connection to the operator control stations as shown in
figure 5.0 or directly to a protected voltage supply. This cable has 4-conductors which supply power and the communications from the
operator stations to the monitor. To complete the installation, the installer will need to mount and wire the selected operator stations.
The power supply for the monitor will need to be connected to a protected circuit from the truck's power distribution center. Refer to the
specifications section 3.1 for nominal current draw.
!
Good mechanical connections on the wires are absolutely necessary and should be checked periodically.
connections can cause power loss to the monitor and be a fire hazard.
!
Careful selection of wiring is critical to avoid excessive voltage drop.
!
Be careful to route cables in a protected area away from high heat sources.
!
Use grommets whenever wires pass through holes to prevent damage due to snags, abrasions, etc.
!
Secure cables close to control box with plastic wire ties or cable clamps to relieve stress on the cables.
!
Disconnect power before installing or servicing the electrical components. The RC monitor control boxes and motors are not rated
as ignition proof, explosion proof, or intrinsically safe.
WARNING
Charging Cradle
Joystick Operator
Station Sec 5.5
Deutsch
Connector
13/C-20
- or -
Installer Supplied Inputs:
Canbus
Toggle Switch
Joystick
Communication
Interface Box Sec 5.7
Toggle Switch
Operator Station Sec 5.6
Recommended Tool List
11/32" nut driver
Wire cutter/stripper
Terminal crimping tool
Utility knife
©Copyright Task Force Tips, Inc. 2004-2005
The electric motors and other components are ignition sources. The electric drives should be
operated only in areas where there is adequate ventilation and no hazard of flammable vapor
buildup.
Wireless Operator
Station Sec 5.4
Reciever
9/C-20
- or - - or -
- or -
- or -
Fig 5.0 Electrical Components
(non-aerial installation)
20mm open-end box wrench
17mm open-end box wrench
5/32" drill bit
25/32" drill bit
Primary Operator
Monitor Mounted
Station Sec 5.1
2/C-14
10 ft (3m) Maximum
2/C-14, 2/C-20
30 ft (9m) Maximum
Optional Operator
Station Sec 5.2
30 or 100 ft
(9 or 27m)
NOTE: To avoid excessive voltage drop at
Position Display
Sec. 5.8
monitor operator station, do not lengthen factory
supplied power or monitor cable.
Voltage supplied to PRIMARY OPERATOR
STATION should not fall below 13 volts when
monitor is in operation.
15
Operator Station
* See Note
Power
Tether Operator
Station Sec 5.3
#2 Phillips screwdriver
Small flat blade screwdriver
LIY-200 September 14, 2005 Rev02
Poor electrical
