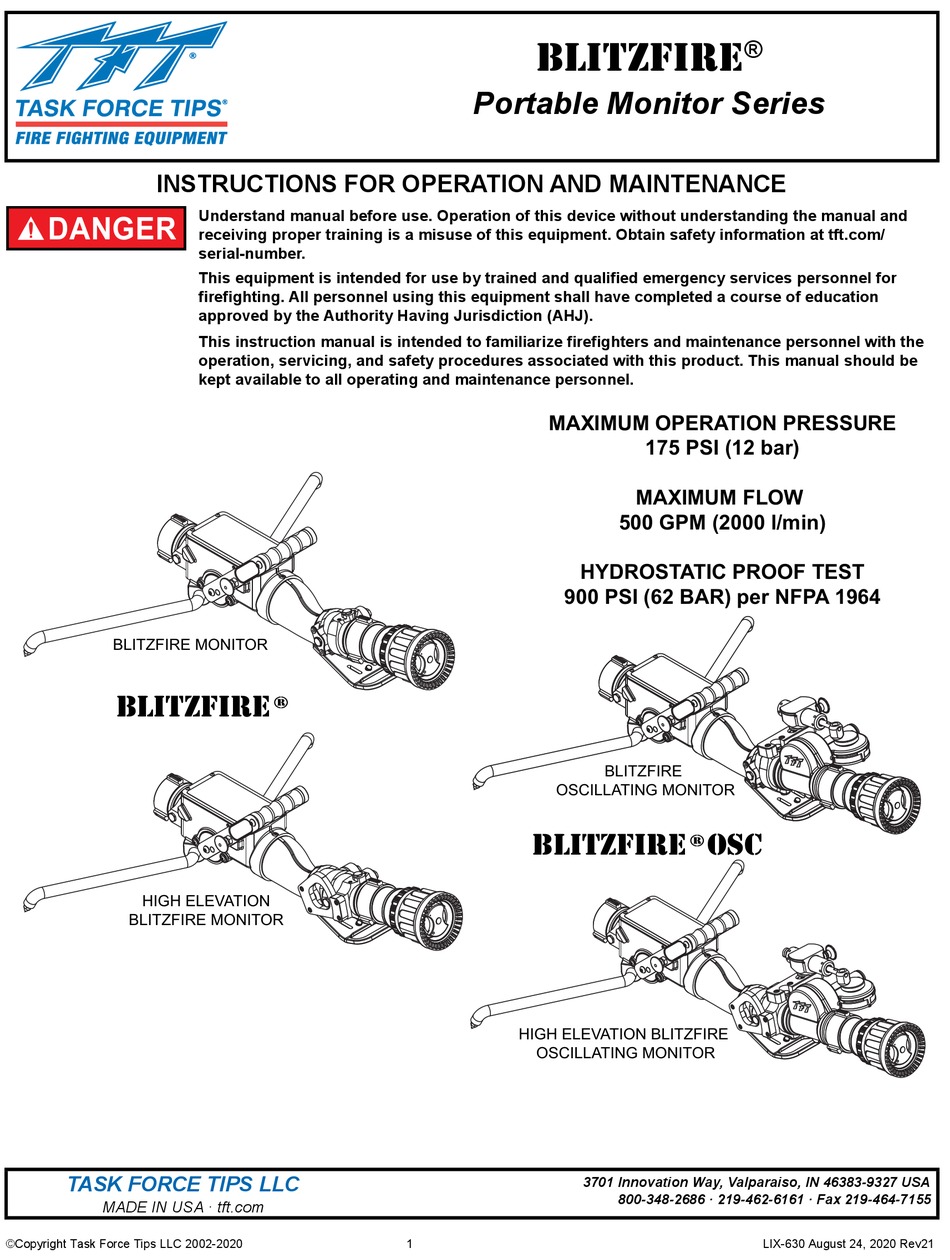

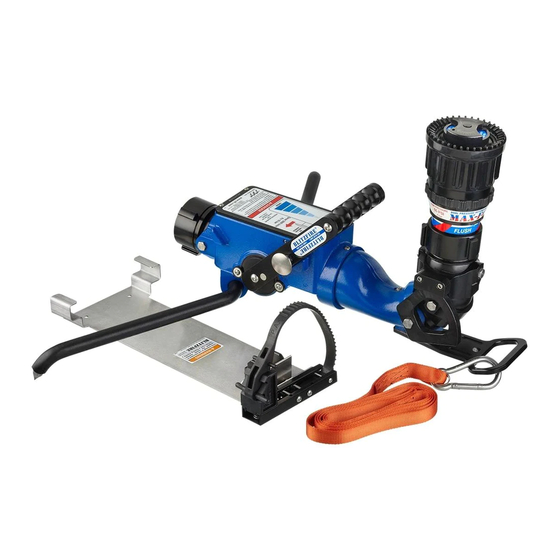

BLITZFIRE
®
Portable Monitor Series
INSTRUCTIONS FOR OPERATION AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
MAXIMUM OPERATION PRESSURE
175 PSI (12 bar)
MAXIMUM FLOW
500 GPM (2000 l/min)
HYDROSTATIC PROOF TEST
900 PSI (62 BAR) per NFPA 1964
BLITZFIRE MONITOR
®
BLITZFIRE
OSCILLATING MONITOR
®
HIGH ELEVATION
BLITZFIRE MONITOR
HIGH ELEVATION BLITZFIRE
OSCILLATING MONITOR
TASK FORCE TIPS LLC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2002-2020
1
LIX-630 August 24, 2020 Rev21
Advertisement
Table of Contents
Related Manuals for Task Force Tips BLITZFIRE Series
Summary of Contents for Task Force Tips BLITZFIRE Series
- Page 1 BLITZFIRE MONITOR HIGH ELEVATION BLITZFIRE OSCILLATING MONITOR TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21...
- Page 2 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2004-2020 LIX-530 Month DD, YYYY Rev15 LIX-640 - Instructions to Maintain Water Flow LIX-635 - BLITZFIRE XX-B when Safety Shut-Off Activates Storage Bracket ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21...
-
Page 3: Table Of Contents
8.3 OPERATION - OSCILLATOR 8.4 OSCILLATION SPEED AND COVERAGE 9.0 STORAGE 10.0 WARRANTY 11.0 MAINTENANCE 11.1 SERVICE TESTING 11.2 REPAIR 12.0 EXPLODED VIEW AND PARTS LISTS 13.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 4: Meaning Of Safety Signal Words
NFPA 1962, if dissimilar metals are left coupled together, an anti-corrosive lubricant should be applied to the connection and the coupling should be disconnected and inspected at least quarterly. To prevent mechanical damage, do not drop or throw equipment. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 5: General Information
Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of the equipment may be shortened due to the effects of corrosion, and is not covered under warranty. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 6: Various Models And Terms
Pivoting Inlet Folding Leg Carbide Tipped Spike Figure 3.4.1 3.4.2 OSCILLATOR Slider Block (to change sweep angle) Latching Pull Pin (to start and stop oscillation) Inlet Outlet Figure 3.4.2 ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 7: Operating Instructions
Sudden changes in valve position can cause pressure spikes (water hammer) and could lead to WARNING hose failure or an out of control monitor. Open and close the valve slowly to avoid water hammer. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 8: Safety Shut-Off Valve Operation
If the Safety Shut-Off Valve fails this test, return the monitor to Task Force Tips to restore proper functioning of the valve. Using the monitor without a properly functioning Safety Shut-Off valve is a misuse of the product. -
Page 9: Slow Close Feature
• Replace any spike if the tip diameter exceeds 1/16 inch (1.6 mm) Spikes are sharp and exposed. Use care around spikes to avoid injury and damage to clothing or CAUTION other property. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 10: Pivoting Inlet
Tighten the holding mechanism in small increments. Tighten only enough to compensate for the weight of the nozzle (and FoamJet, if applicable). Overtightening of the drag nut will cause damage or premature wear to the elevation holding mechanism. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 11: Flow Characteristics
• Slug loading (Loss of foam concentrate sends slugs of air and water into the nozzle) • Sudden release of built-up pressure in the hose when opening a nozzle ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 12: Pressure Loss
On a preconnected hoseline the BLITZFIRE may be carried using the valve handle, front handle/tie off point, or over the shoulder with the legs folded as illustrated. Figure 6.1 ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 13: Advancing With A Charged Hose
The holding ability of the spikes on soft surfaces such as sand, gravel and mud is generally poor. Other anchoring methods should be considered. Spike caught in a crack Figure 7.2 ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 14: Anchoring By Hooking Legs
If the strap is too short to reach a suitable anchor, it may be extended with strong rope or chain. Keep the distance between the monitor and anchor as short as possible. Remove all slack between the monitor and anchor before flowing water. Figure 7.4 ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 15: Osc Oscillating Unit
LIFT TO CHANGE SWEEP SETTING 40° PULL KNOB & TURN TO STOP OSCILLATION 30° 20° SLIDE TO CHANGE ANGLE SWEEP Figure 8.3 ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 16: Oscillation Speed And Coverage
Always properly deploy the monitor before flowing. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21... -
Page 17: Warranty
10.0 WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 18: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. - Page 19 This page intentionally left blank. ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21...
-
Page 20: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2002-2020 LIX-630 August 24, 2020 Rev21...
