Hardware and layout

4 Hardware and layout
The STM32F4DISCOVERY is designed around the STM32F407VGT6 microcontroller in a
100-pin LQFP package.
Figure 2
LINK/V2, pushbutton, LED, Audio DAC, USB, ST MEMS accelerometer, ST MEMS
microphone, and connectors).
Figure 3
8/42
illustrates the connections between the STM32F407VGT6 and its peripherals (ST-
and Figure 4 help you to locate these features on the STM32F4DISCOVERY.

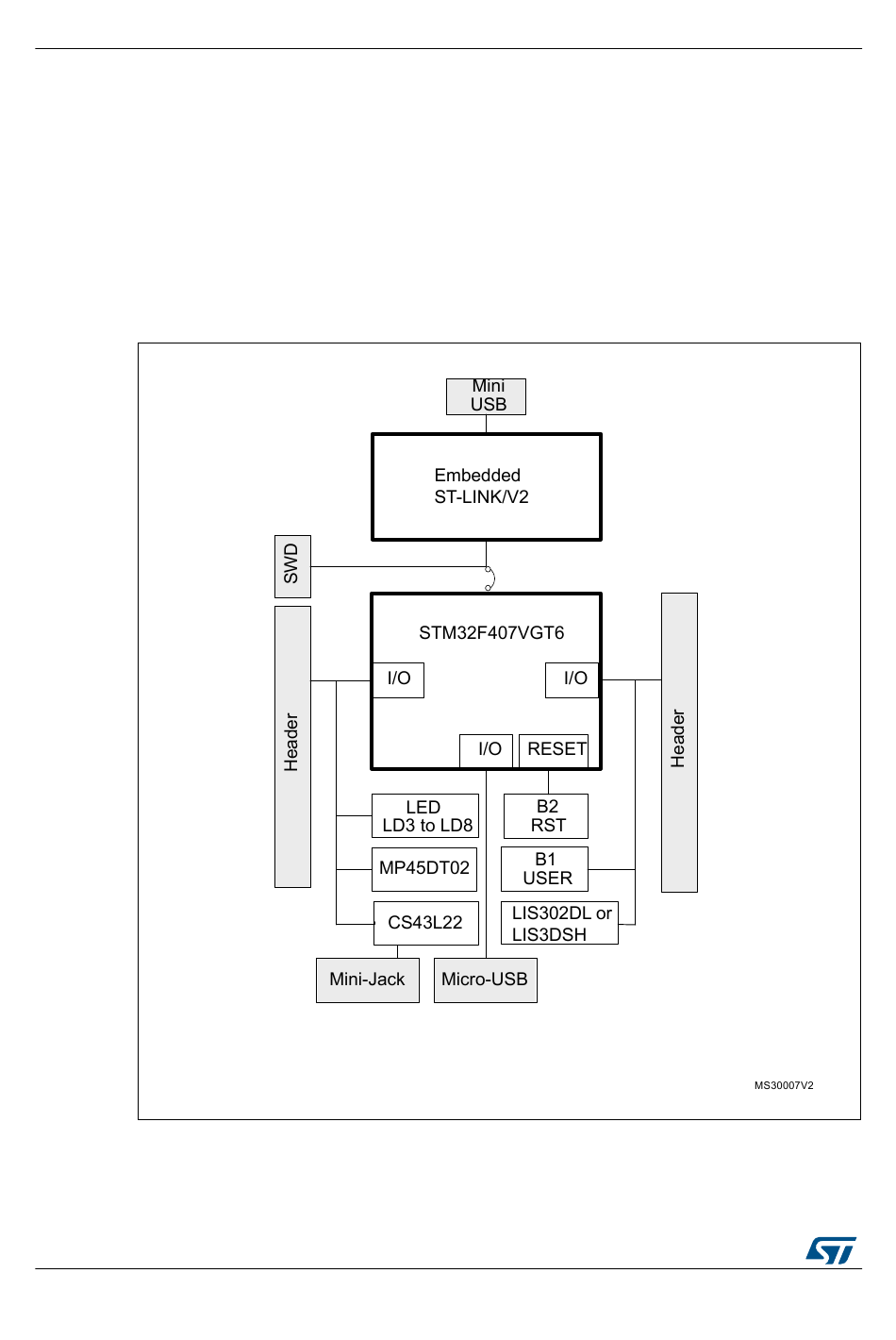

Figure 2. Hardware block diagram
