UM1472
4.2

Embedded ST-LINK/V2

The ST-LINK/V2 programming and debugging tool is integrated on the
STM32F4DISCOVERY. The embedded ST-LINK/V2 can be used in 2 different ways
according to the jumper states (see
• Program/debug the MCU on board,
•
Program/debug an MCU in an external application board using a cable connected to
SWD connector CN2.
The embedded ST-LINK/V2 supports only SWD for STM32 devices. For information about
debugging and programming features refer to user manual UM1075 (ST-LINK/V2 in-circuit
debugger/programmer for STM8 and STM32) which describes in detail all the ST-LINK/V2
features.
Jumper state
Both CN3 jumpers ON
Both CN3 jumpers OFF
Table 2):

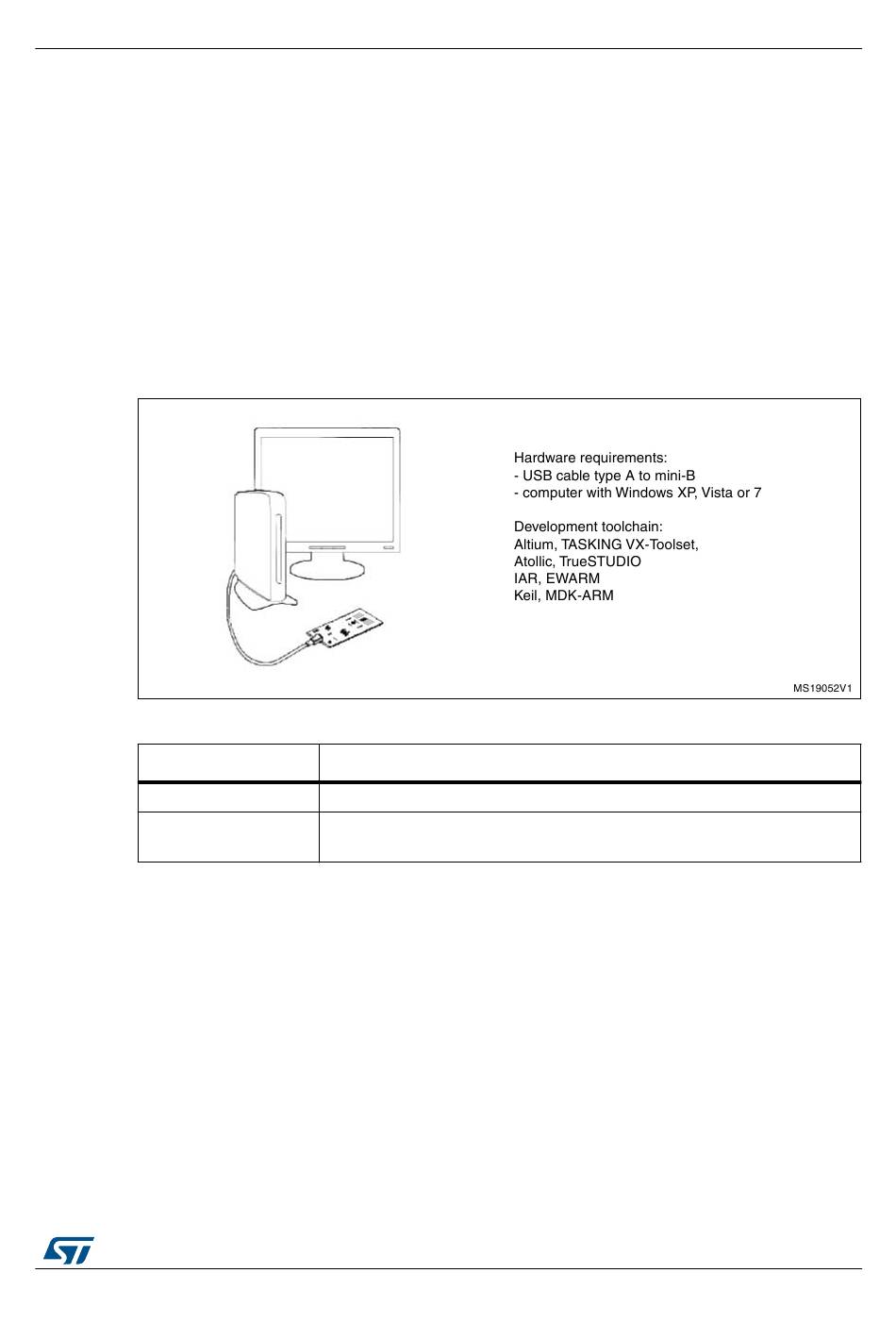

Figure 7. Typical configuration

Table 2. Jumper states

ST-LINK/V2 functions enabled for on board programming (default)
ST-LINK/V2 functions enabled for application through external CN2
connector (SWD supported)
DocID022256 Rev 4
Hardware and layout
Description
13/42
41
