Assembly Guide
Production Dates: September 2004 - Present
ATTENTION:
The part numbers listed in this guide may differ from the parts
required for your particular Source Four fixture. Part numbers for
fixtures change occasionally as parts are replaced or upgraded.
To ensure that you are ordering the proper part for your specific
fixture, please contact your ETC dealer, or ETC Customer Service
for assistance.
C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7061M2500-06.01 R e v A
A l l R i g h t s r e s e r v e d .
R e l e a s e d : A u g u s t 2 0 0 7
Advertisement
Table of Contents

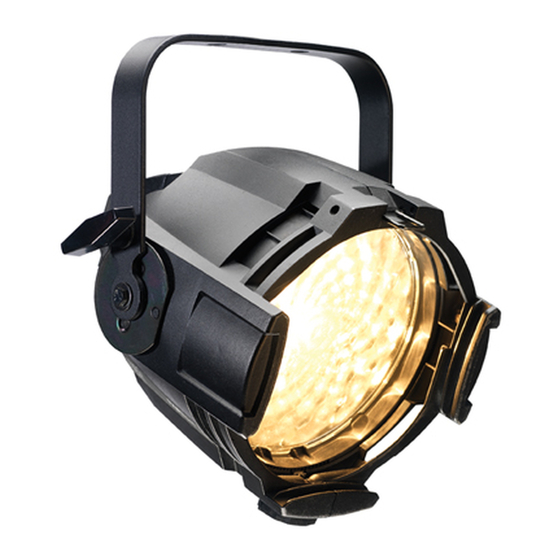

Related Manuals for ETC Source Four PAR EA
Summary of Contents for ETC Source Four PAR EA
- Page 1 To ensure that you are ordering the proper part for your specific fixture, please contact your ETC dealer, or ETC Customer Service for assistance. C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
-
Page 2: Table Of Contents
T a b l e o f C o n t e n t s Basic Assembly .........1 Lamp Socket Assembly . -
Page 3: Basic Assembly
Basic Assembly Figure 1 Reference Part Description Quantity Number Number Required 7061A2001 Lamp socket assembly, black 7061A2001-1 Lamp socket assembly, white 7061A3006 Bracket, yoke, black 7061A3006-1 Bracket, yoke, white HW5172 Bolt, hex, 1/4-20 x 1”, black zinc HW522 Washer, flat, 1/4, black zinc HW5125 Bolt, carriage, 5/16-18, black zinc HW5126... -
Page 4: Lamp Socket Assembly
Lamp Socket Assembly Figure 2 Reference Part Description Quantity Number Number Required 7060A3025 Screw, 1/4-20 x 1.55, knurled 7060A4019 Label, Fixture Warning 7061A3023 Burner, casting, black 7061A3023-1 Burner, casting, white 7061A3024 Strain relief, black 7061A3024-1 Strain relief, white 7061A4011 Focus handle, black 7061A4011-1 Focus handle, white 7061B7002... -
Page 5: Assemble Lamp Socket
A s s e m b l e l a m p s o c k e t Burner casting Tighten 2 Tighten 4 Ground wire (6) TP22 and 6-32 x 1/4 assembly (9) screw (7) Knurled head screw hole Strain relief casting (4,) Sleeving (10) -
Page 6: Housing Assembly
Pad, silicon, reflector mount 7061A4012 Lens rotator, black 7061A4012-1 Lens rotator, white 7061A4029 Lens stop 7061A4030 Label, ETC S4 PAR, black 7061A4030-1 Label, ETC S4 PAR, white HW492 Screw, 10-32 x 5/8, PhPH, Taptite HW4145 Screw, 10-32 x 3/8, PhPH, Taptite, BO HW6128... -
Page 7: Assemble Housing
A s s e m b l e h o u s i n g Tools Required: • Minimally padded work surface (cardboard, carpet, or rubber mat recommended) • Phillips screwdriver W A R N I N G : This procedure may crack or break the reflector. Always wear gloves, safety glasses, and a dust mask when performing this procedure. -
Page 8: Cleaning The Reflector
Step 12: Hold the lens by the edge and position it so the wave side faces the rear of the fixture. See Figure Step 13: From the top of the fixture, slide the lens behind the lens catchers and position it behind the tabs on the bottom of the lens rotator ring. -
Page 9: Lens Identification
L e n s i d e n t i f i c a t i o n Lenses for the Source FourPAR come in four varieties. The type or beam spread can be identified by the texture of the lens. (Optional) XWFL VNSP... - Page 10 Source Four PAR Assembly Guide...
- Page 11 Housing Assembly...
- Page 12 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2007 ETC. All Rights Reserved. Product information and specifications subject to change. 7061M2500-06.01 Rev A Released 08/2007...
