1 Introduction

This document helps to configure and use the Quadro via ISDN interface and describes the
basic configuration steps to setup the ISDN on the Quadro.

2 Functional Description

Integrated Services Digital Network (ISDN) consists of digital telephony and data-transport
services offered by regional telephone carriers. ISDN involves the digitization of the telephone
network, which allows voice, data, text, graphics, music, video, and other source material to be
transmitted over existing telephone wires. The ISDN Basic Rate Interface (BRI) service offers
two B channels (voice transfer) and one D channel (signaling data transfer). The BRI B-channel
service operates at 64 kbps and is meant to carry user data; the BRI D-channel service
operates at 16 kbps and is meant to carry control and signaling information, although it may
also support user data transmission under certain circumstances.
This document describes a quick installation and basic configuration for ISDN.

3 The Rear Panels of Quadro2xi, 4xi and 16xi

1 RJ45 socket(s) to connect the Quadro to the ISDN-PSTN network using a digital phone
service.
Quadro2xi is designed for one ISDN Trunk (2 B channels).
Quadro4xi is designed for one ISDN Trunk (2 B channels).
Quadro16xi is designed for three ISDN Trunks (6 B channels).
In the configuration below, it is considered that Quadro is connected to PSTN/ISDN.

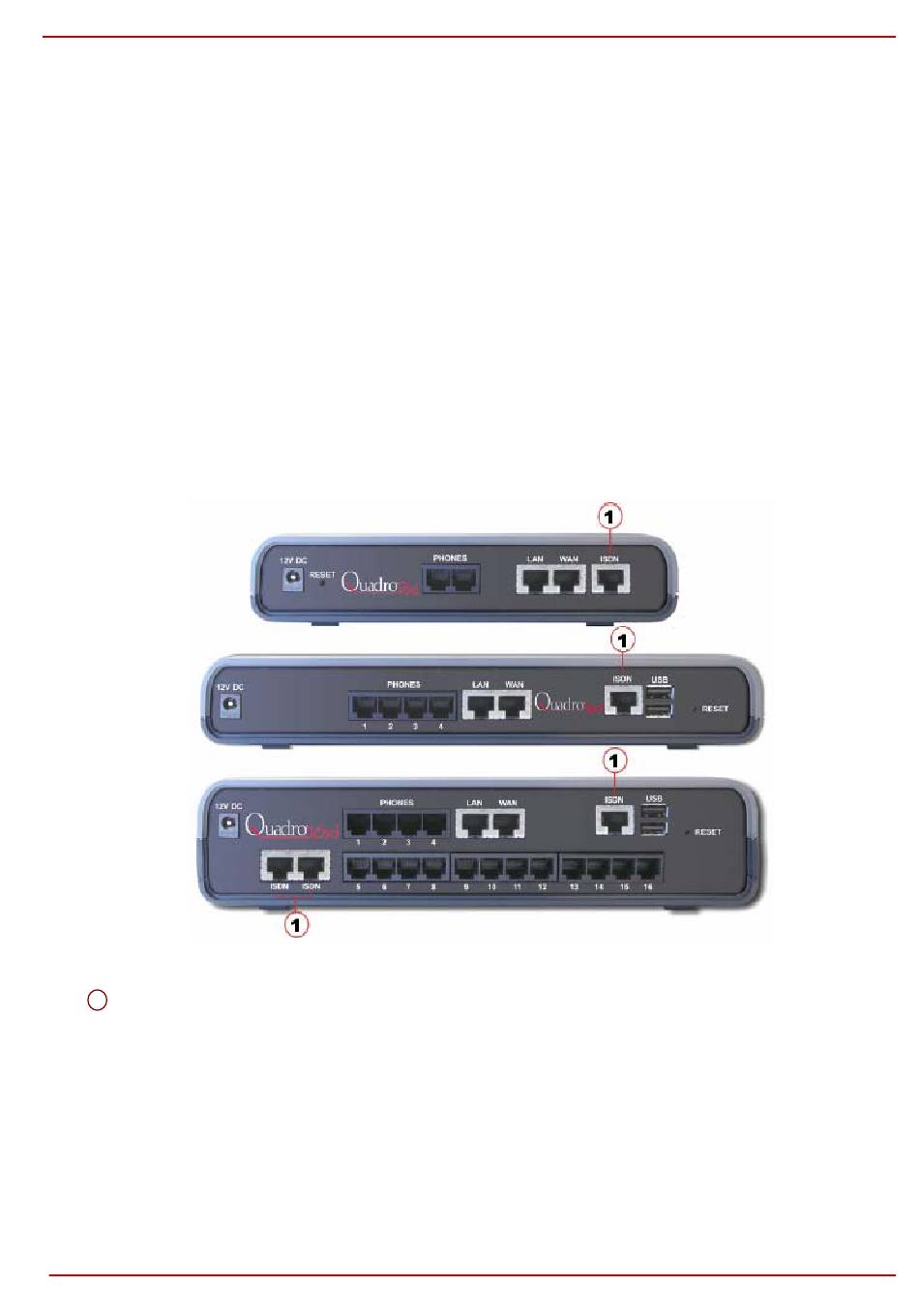

Fig. 1: Quadro's Rear Panels (ISDN/Ethernet flavours)
