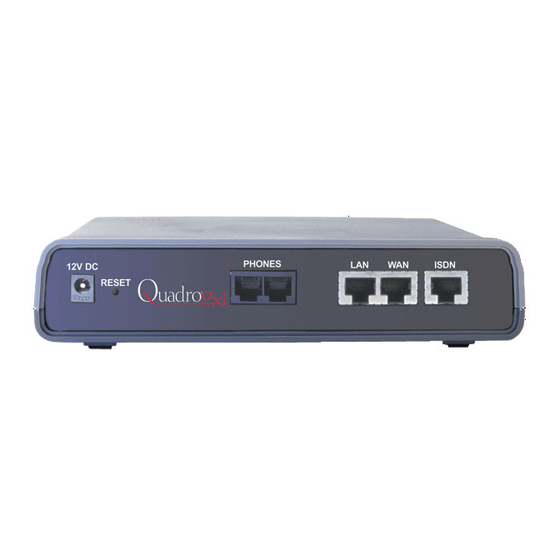

Quadro2xi: The IP PBX with 1 ISDN Port, 2 FXS Ports and 16 IP Phones
The Quadro2xi is a fully-featured IP PBX for home of-
fices and teleworkers as the Quadro2x is. The impor-
tant difference is that Quadro2xi offers you one ISDN
line instead of FXO and connects you via two B-chan-
nels of 64 kbit/s each to the digital PSTN. A 10Base-
T Ethernet line provides access to the Internet. The
Quadro2xi allows attaching two FXS phones and 8
fully-featured LAN IP phones. The 8 User Expansion
increases the total number of LAN IP phones to 16.
Additional virtual extension allow e.g., registering at
various SIP servers.
In addition, all extensions assigned to a line may be
mirrored and act as remote IP extensions. Wherever
you are, calls will reach you, and you will be able to
make calls as if you were in your office.
Fully-Featured IP PBX
The Quadro2xi offers the same multitude
of features as the Quadro2x: extensive PBX
functionality, integrated voicemail, cost sav-
ing call routing functionality, IP routing, SIP
call signaling and much more.
Technical Data: Quadro2xi
The Global Phone Network in a Box
Integrated Internet Access Router
The Quadro2xi IP PBX embodies a fully-fledged In-
ternet access router with firewall security, including
NAT, policy and service based filtering. An extensive
IPSec VPN functionality with DES, 3DES and AES en-
cryption makes an additional contribution to data
security.
VoIP Carriers
The Quadro2xi IP PBX is easily applicable for VoIP Car-
riers as well as small businesses. For VoIP carriers, a
special wizard has been implemented that facilitates
the configuration of Quadro2xi to work according to
individual requirements.
remote extensions
PSTN
H E
E T
P H
N
L A
O N
INTERNET
E T
R N
remote extensions
E S
