4 Quadro's Front Panel LEDs

Line1
7 green Status of ISDN trunks
Line2
8 green Status of ISDN trunks

5 How to configure ISDN Trunk(s)

Contact your ISDN ISP administrator to get the ISDN Trunk configuration details. Note, that
some ISDN ISPs may require the MSN configuration.
Perform following steps to configure the ISDN trunk(s) on the Quadro:
1. Access Quadro Web Management by the configured IP address and the administrator's
login.
2. Go to Telephony --> ISDN Settings to reach the ISDN configuration pages. The list of
available ISDN trunks will be displayed.
3. Enter the trunk settings by selecting the appropriate trunk from the list and pressing Edit
functional button from the ISDN Trunk Settings page toolbar. The page with trunk settings
will be displayed.
on: one or more (but not all) channels are
busy
off: all channels are free
flickering: at least one of the started
trunks is disconnected
on: all channels are busy
off: free channels available
flickering: at least one of the started
trunks is disconnected
PAGE 4
Configuring Quadro with ISDN

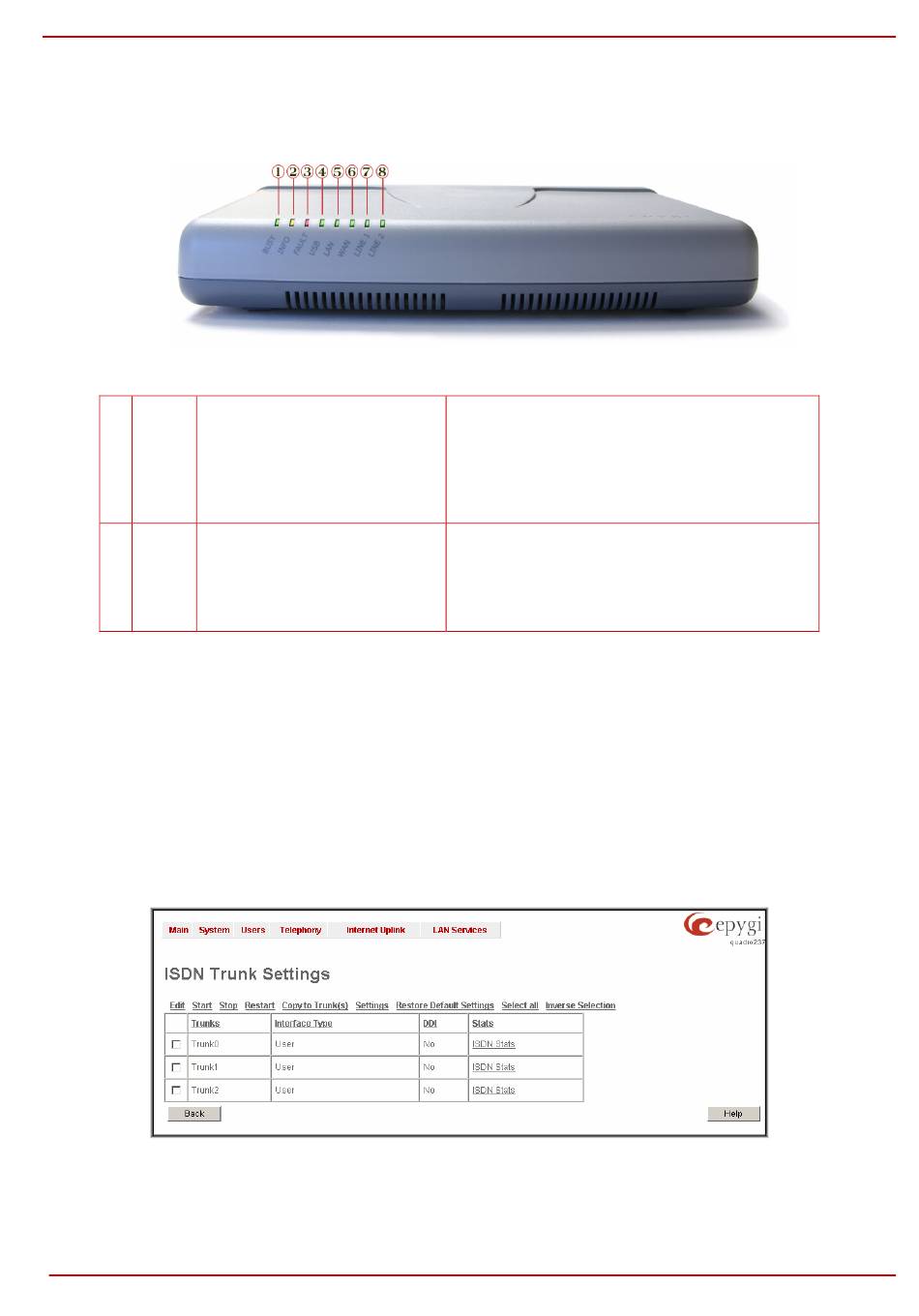

Fig.2: Quadro's Front Panel LEDs
Fig. 3: ISDN Trunk Settings page
