Epygi Quadro 2xi Configuring page 9

Epygi Technologies
1. Enter ISDN Wizard, by selecting the appropriate trunk from the list and pressing Settings
fun ctional button from the ISDN Trunk Settings page toolbar.
2. On th fi e rst page of ISDN Wizard, leave the Enable DDI Service checkbox unselected.
3. Select th e TEI Mode configuration according to your ISDN provider's requirements.
•
The Automat mode requires ISDN connection to be established on the first
available channel. If TEI Ass
tries to get TEI value after Power UP, otherwise Quadro tries to get TEI value on
incoming or outgoing calls.
•
The Non Automat mode enables the TEI Address text field that requires the
channel number (digit values from 0 to 63) for connection establishment between
the CO an
the connection and both call partners need to specify the same channel in their
settings.
4 . Press Next to move forward to the next page of the ISDN Wizard.
5. On the second page of ISDN Wizard, MSN settings should be configured.
ignment on Power up checkbox is selected Quadro
d the ISDN client. In this mode a private channel may be reserved for
PAGE 9
Configuring Quadro with ISDN

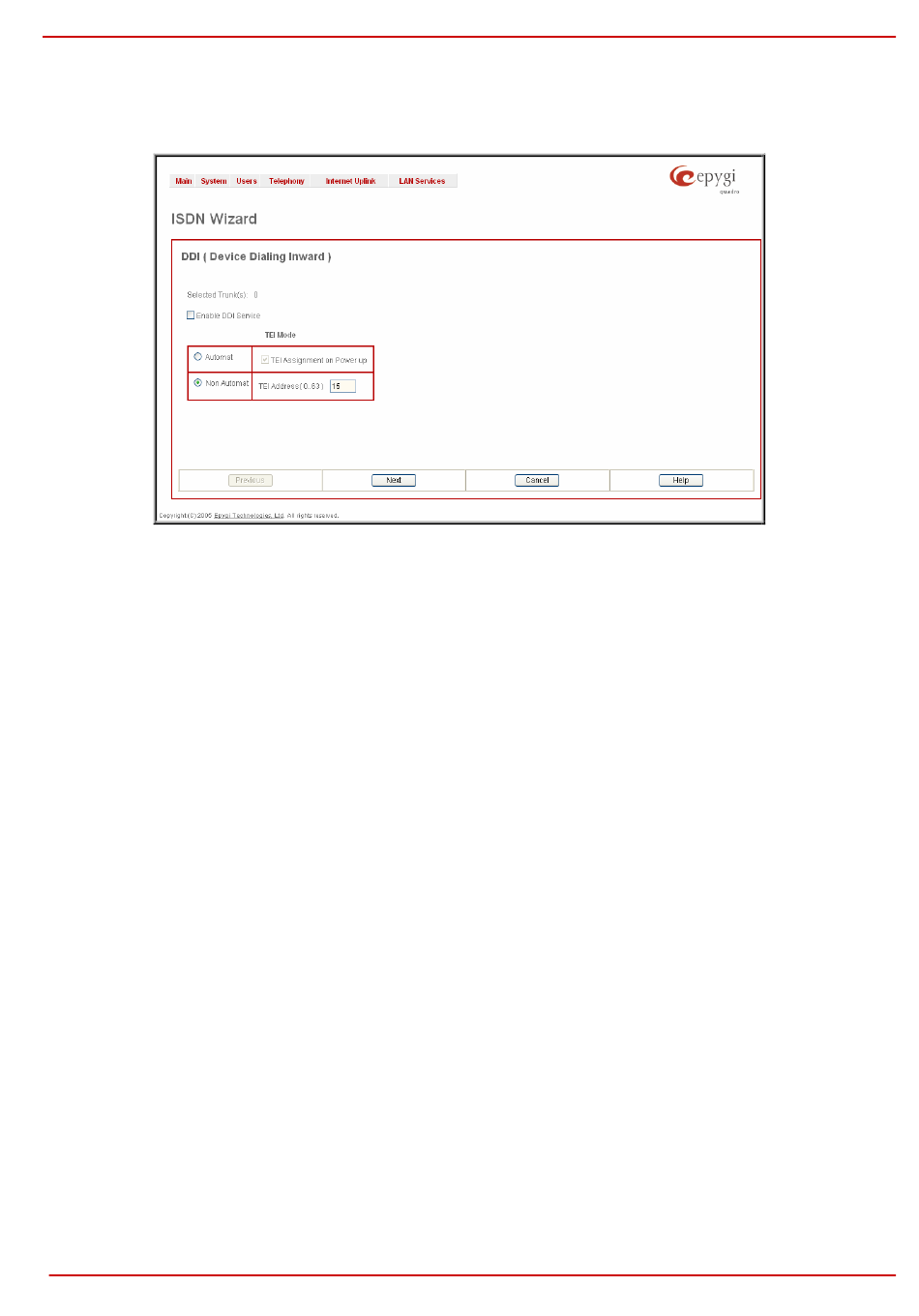

Fig. 8: ISDN Wizard
7-Feb-06
– P age 1
