Cooling circuit, coolant properties and protection against condensation
9.1 Cooling circuits

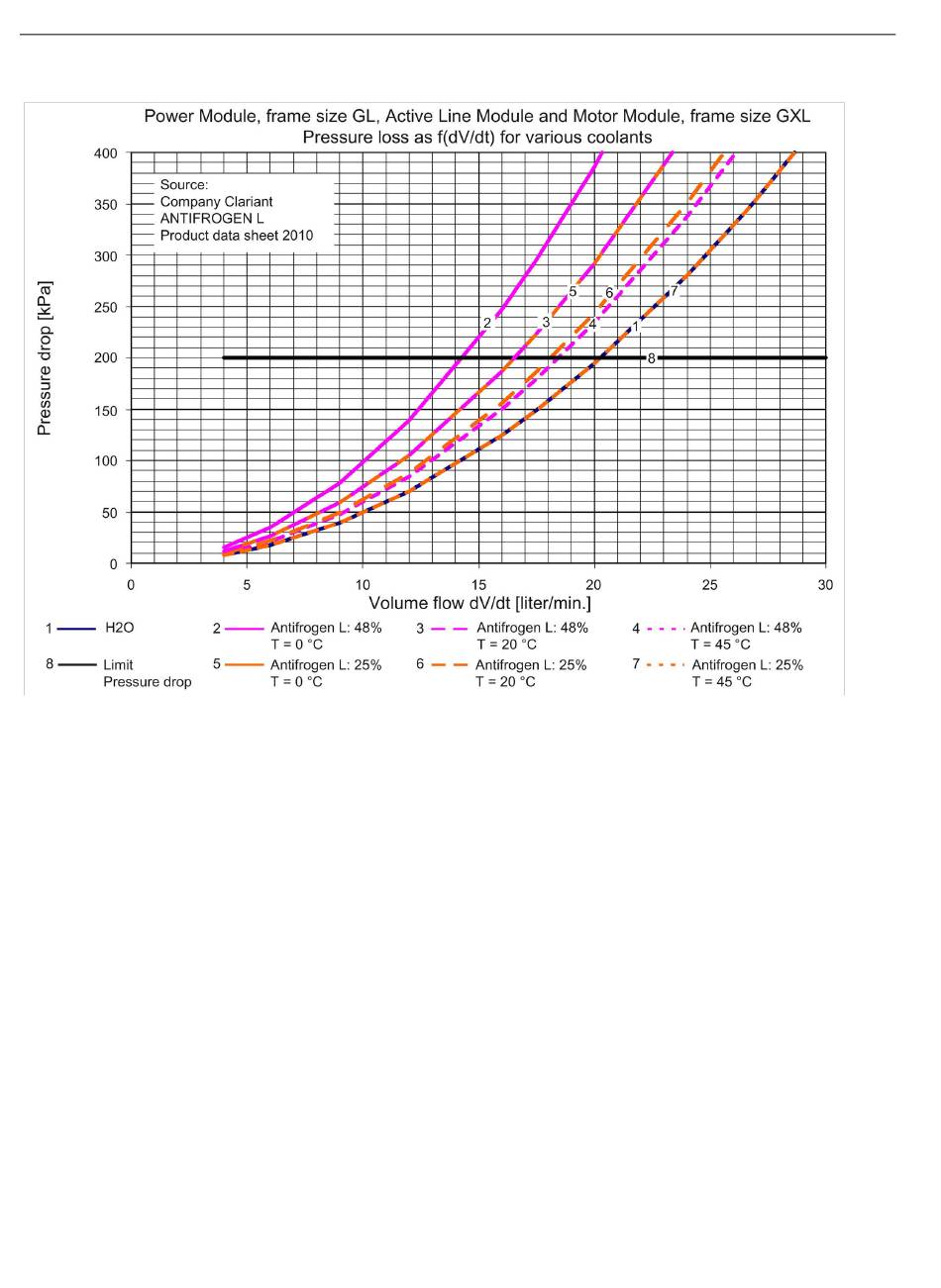

Figure 9-15
Pressure drop as a function of volumetric flow for Power Module frame size GL, Active Line Module and Motor
Module frame size GXL
328
Liquid-cooled chassis power units
Manual, (GH7), 11/2016, 6SL3097-4AM00-0BP7
