Line Modules
5.3 Active Line Modules

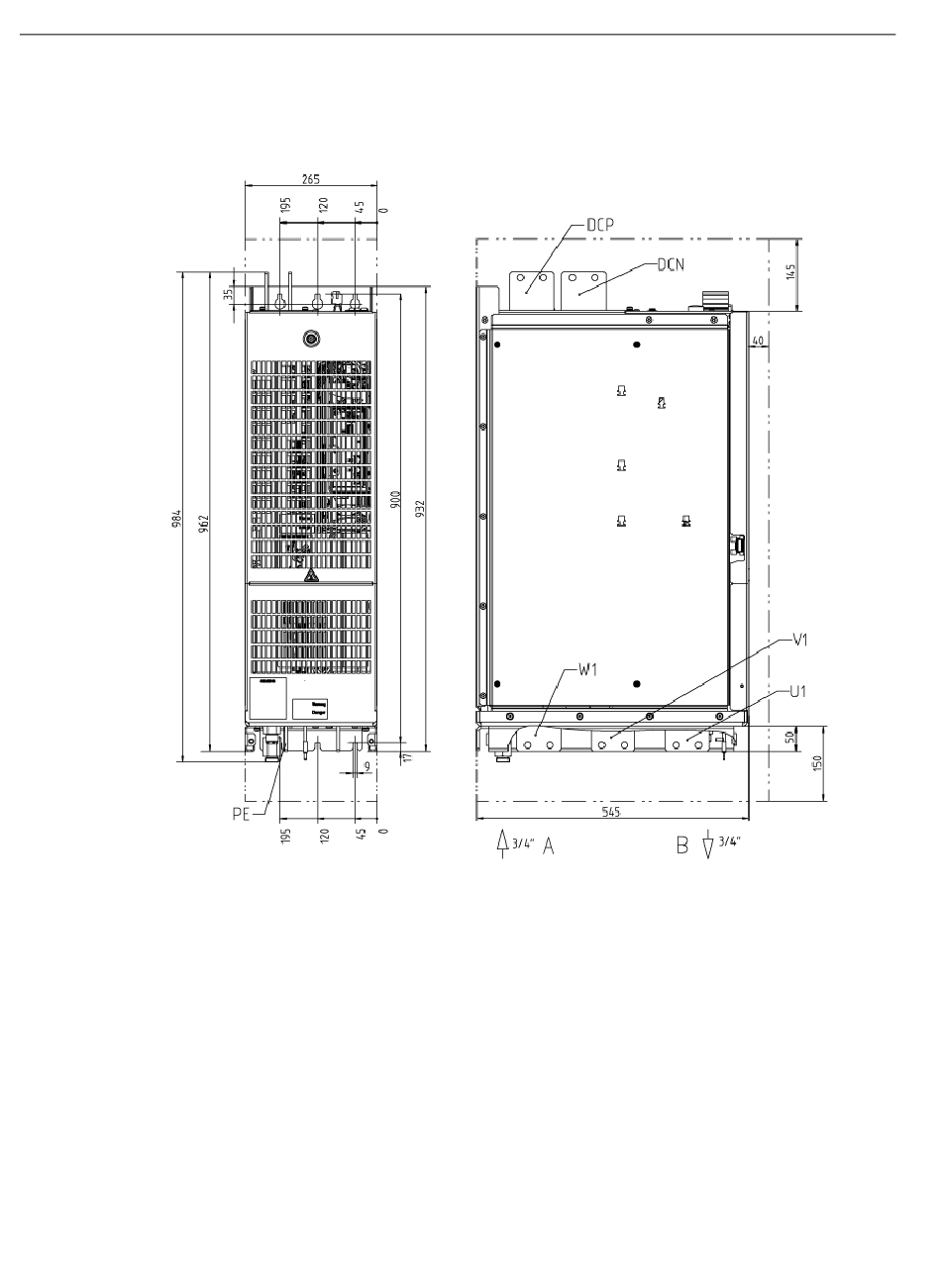

Dimension drawing, frame size HXL
The mandatory cooling clearances are indicated by the dotted line.
Figure 5-20
180
Dimension drawing Active Line Module, frame size HXL Front view, side view
Liquid-cooled chassis power units
Manual, (GH7), 11/2016, 6SL3097-4AM00-0BP7
