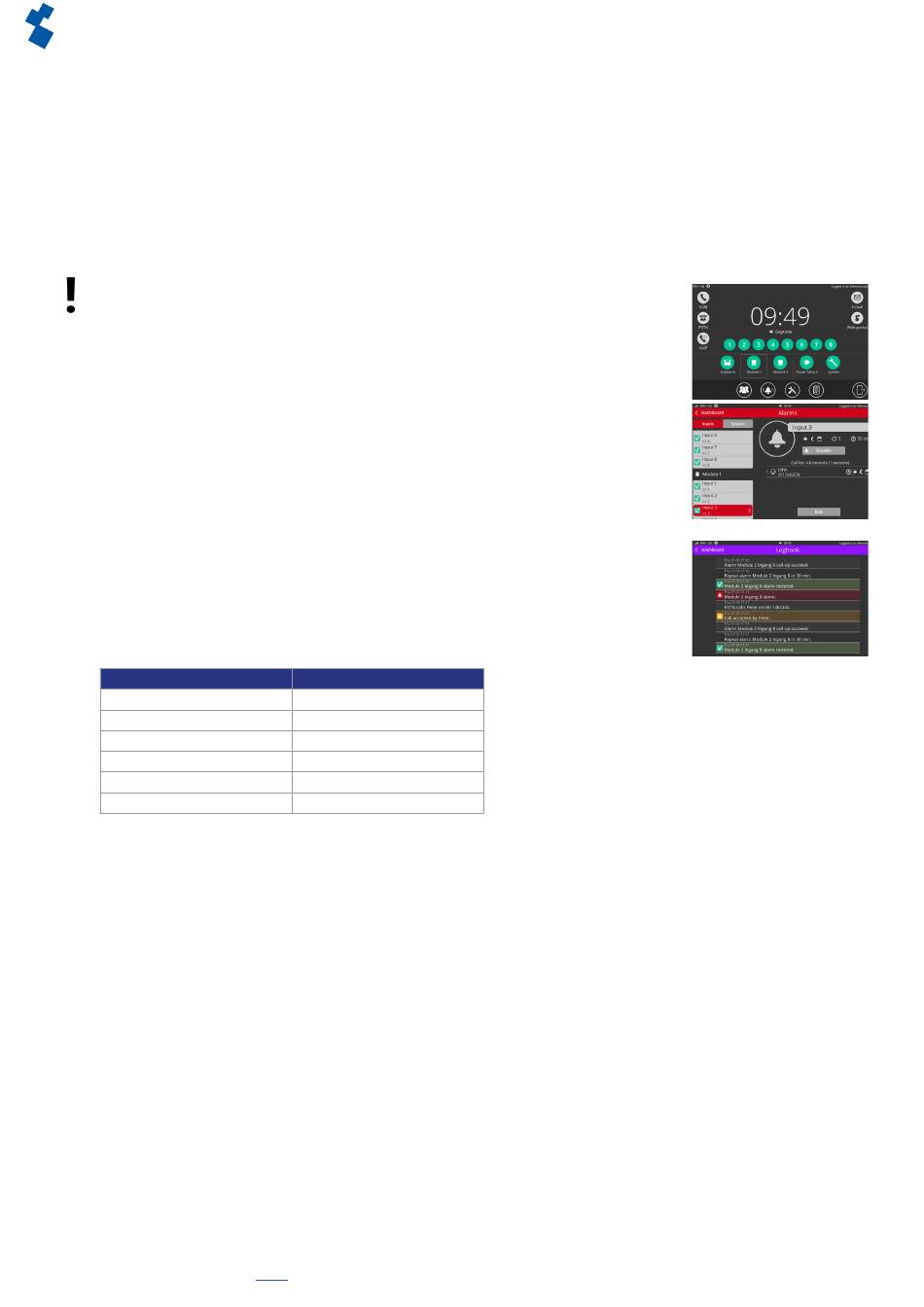

10.2. Configuration

• From the home screen (dashboard), go to the External IO screen.
• Press 'add' to create a new module.
• Enter a recognisable name, such as "Stable 1" or "Boiler House". This name will be used in alarm calls
and in the log.
• Select the appropriate slave ID.
• Press 'Add'.
• Check the config to see if all slave IDs in the bus have been configured. If no other slave IDs are found
after running 'check config', the modules are ready for use.
With the addition of external IO, several menus have been changed.
Deleting an EM-8001 will also delete all settings for the external IO.
Dashboard change
Now that the Octalarm-Touch can have up to 24 alarm inputs, the dashboard
has been updated to allow users to view all alarms. Simply press the icon to
show a list of all underlying alarms.
Alarms
In the 'Alarms' menu, you can now scroll down on the left-hand side. All
added modules will be listed here. These can be set up and configured just
as regular Octalarm-Touch alarms. For more information, see chapter "6.
Alarms".
Log
The log has been updated to include external modules. When an alarm
is triggered or returns to an idle state, the log shows the unit to which it
belongs, e.g. Octalarm, module 1, module 2 or any name given to these units.

10.3. Input status

The EM-8001 has LEDs that show input statuses:
LED
Off
Green
Red
Flashing red
Orange
Flashing orange
Manual Octalarm-Touch | Back to
Status
Off
Rest
Active alarm
Recovery delay
Accepted
Alarm delay
index Page 29
