EN

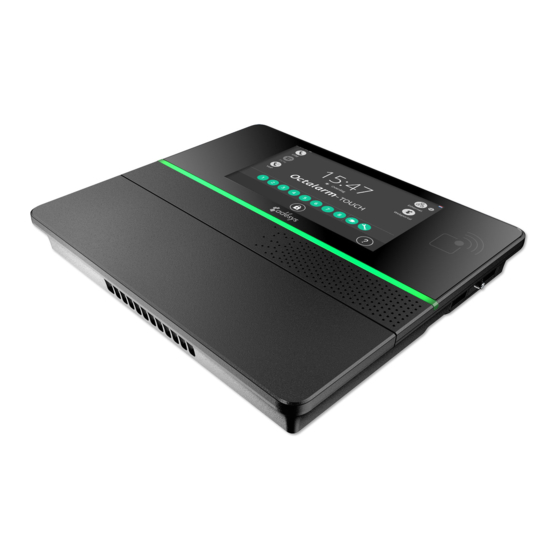

Manual Octalarm-Touch
Version 11-2020
MEASURE - ALERT - CONNECT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Octalarm-Touch and is the answer not in the manual?

Questions and answers

Related Manuals for Adesys Octalarm-Touch

Summary of Contents for Adesys Octalarm-Touch

  • Page 1 Manual Octalarm-Touch Version 11-2020 MEASURE - ALERT - CONNECT...

  • Page 2: Table Of Contents

    Adesys B.V. | Wateringen Index Introduction 1.1. Safety rules and advice to regularly test alarms 1.2. Alarm safely 1.3. Maintenance 1.4. Storage and transport 1.5. Malfunctions and repairs 1.6. Recycling and disposal 1.7. Warranty and liability Installation 2.1. Mounting the Octalarm-Touch 2.2.
  • Page 3 Adesys B.V. | Wateringen App alarms and remote setup 9.1. App alarms with 'Adesys Alarm' 9.2. Remote setup External IO: EM-8001 (external module) 10.1. Installation 10.1.1. Mounting the external IO (EM-8001) 10.1.2. Connecting the external IO (EM-8001) 10.1.3. Slave ID 10.1.4.

  • Page 4: Introduction

    • the recycling and/or disposal will have to be done by following the guidelines stated in this manual. Battery handling guide • Only use the Adésys Octalarm-Touch type battery. There is a risk of explosion if the battery is replaced by an incorrect type.

  • Page 5: Warranty And Liability

    1.7. Warranty and liability Every Octalarm-Touch undergoes a series of extensive tests at Adésys prior to dispatch. Adésys also gives a two year guarantee. The guarantee becomes invalid if: • the defect is caused by gross negligence or incompetent installation;...

  • Page 6: Installation

    Adesys B.V. | Wateringen Installation 2.1. Mounting the Octalarm-Touch Before connecting the Octalarm-Touch, the unit needs to be mounted on a wall or solid object. The Octalarm-Touch can be mounted by first placing screws in the wall before sliding the mounting holes on the device over them. The screws must be capable of supporting at least 1360 grams. 2.2.

  • Page 7: More System Information

    Velcro. Then close the connector. Caution: Replacing the battery with an incorrect type may cause damage to the device and the battery. Battery compartiment Velcro fastener Battery connector location Battery label Battery label (Europe) Manual Octalarm-Touch | Back to index Page 7...

  • Page 8: Pstn Configuration

    Adesys B.V. | Wateringen 3.4. PSTN configuration There are 2 ways to connect the Octalarm-Touch to the PSTN: • standalone; • Additional telephone devices on the same PSTN line (Fax / Central Office etc.). The PSTN line can be connected to the Octalarm- Touch’s RJ11 “Line In” connector. In case additional devices need to be connected to the same PSTN line,...

  • Page 9: Dashboard (Home Screen)

    SMTP server. If you choose to active Connect at a later stage, you must manually set the Email and VoIP server settings to ‘Octalarm Portal’. The initial setup is now completed. Pressing ‘Ready’ activates the Octalarm-Touch. 4.2. Dashboard (home screen)

  • Page 10: Changing Settings

    Touch does not record any activity for 10 minutes, the buzzer will turn on again. • Accept all alarms: If you accept all alarms, the Octalarm-Touch will not initiate a new alert for this alarm, until the waiting time between repeats has expired.

  • Page 11: Contacts

    We recommend that each contact is given their own unique acceptance PIN. Login By placing a check mark, this contact is given the right to log in on the Octalarm-Touch. Next, you assign permissions, a username and password. These permissions, usernames and passwords are also important for remote setup.

  • Page 12: Call Lists

    For Email, SMS and pager an acceptance time is used. This is the time period within which the contact can call back or send a text message to the Octalarm-Touch. The contact must call the mobile phone number of the Octalarm-Touch. Day schedule: Day/night/weekend times Here you can select according to which schedule the contact should receive an alert.

  • Page 13: Alarms

    The alarm text is the text used in the alarm messages and in voice calls. When you press the ‘Play’ button the Octalarm-Touch device speaks the alarm text. If the spoken text is not clear, it is best to enter the alarm text phonetically.

  • Page 14: Linking Or Creating A New Call List (Right Side)

    • offline server; • 5 consecutive failed calls. PSTN The system will trigger a PSTN warning when the Octalarm-Touch has failed to detect line voltage for a while or after 5 consecutive calls have failed. Manual Octalarm-Touch | Back to index...

  • Page 15: Multiple Alarms (At Once)

    This failure occurs when the battery is removed or defective. Check the battery connection by disconnecting and reconnecting the battery. 6.2.3. Multiple alarms (at once) When 5 or more alarms are active at the same time, the Octalarm-Touch will report them as a single alarm. You will receive the notification: ‘Multiple alarms. There are more than 5 alarms'. Reporting multiple alarms in 1 notification helps maintain clarity and ensures that all alarms can be handled properly.

  • Page 16: Settings

    7.1. General 7.1.1. System information Under System information, you can find all information for the Octalarm-Touch you may need for maintenance of the Octalarm-Touch or when contacting the help desk. For the help desk you need the serial number and the pairing code. The pairing code is a security code that changes.

  • Page 17: Display

    • Select the correct zone. • Press ‘save’. 7.2.3. Keyboard It is possible to use a different keyboard layout for the Octalarm-Touch. You can choose between: • The international QWERTY layout (default). • The QWERTZ layout for German-speaking and Eastern European customers. • The AZERTY layout for Belgian and French customers.

  • Page 18: Voice

    Adesys B.V. | Wateringen 7.2.5. Voice The voice used by the Octalarm-Touch can be set. If the used voice is not clear enough, another voice can be set. Changing the voice • Go to ‘Settings’. • In the navigation, scroll to ‘Voice’.

  • Page 19: Outputs

    The installer and the administrator can clear all settings of the Octalarm-Touch. This feature is useful when, for example, the Octalarm-Touch is taken to another location. The log will not be deleted when the system is reset to the factory settings.

  • Page 20: Interfaces

    Interfaces 7.4.1. GSM The Octalarm-Touch is supplied with a GSM module with a SIM card. For more information about the GSM module, see chapter “3.5. GSM module”. The SIM card is disabled by default and can be activated during onboarding. With this process the end user enables the Octalarm Connect service. If you did not activate this service during the onboarding, you can still do so via the settings.

  • Page 21: Pstn

    If the international format is not used or if a PSTN connection is used that does not support this format, it is important that the correct country code is set. The Octalarm-Touch contains a list of default codes per country. The country code can also be set manually.

  • Page 22: Voip

    Adesys B.V. | Wateringen 7.4.4. VoIP Voice-over IP is a way to make a call via the Internet. The Octalarm-Touch uses the SIP protocol for this. To use the 24/7 monitored Adésys servers, you must activate Octalarm Connect via the included SIM card.

  • Page 23: Email

    To use a static IP address, you can set DHCP to manual in the ‘Ethernet’ screen. If you then enter an IP address, the Octalarm-Touch will only use that IP address. If this does not allow the Octalarm-Touch to connect correctly, it is important to check this IP address, or you may have to use DHCP.

  • Page 24: Paging

    • Press ‘Save’. 7.4.8. Web portal The web portal is enabled by default, allowing you to use the ‘Adesys Alarm’ app, set up the system remotely and receive software updates. We strongly recommend that you leave the web portal enabled.

  • Page 25: Log

    Octalarm- Touch will repeat the alarm after the set waiting time, as outlined in chapter “6.1.1. Alarm settings (left side)”. Manual Octalarm-Touch | Back to index Page 25...

  • Page 26: App Alarms And Remote Setup

    To send alarms to the ‘Adesys Alarm’ app, add the Email address for the portal account linked to the app to a contact in the Octalarm-Touch and tick the box for app alarms in the relevant call list or lists.

  • Page 27: Remote Setup

    In some cases, the Octalarm-Touch may not be assigned an IP address. If this is the case, check the router/switch. Changing the duplex speed on the Octalarm-Touch can also help. See chapter “7.4.6. Ethernet” for more information...

  • Page 28: External Io: Em-8001 (External Module)

    10.1.5. Relay The EM-8001 can activate a relay when an alarm is triggered. This relay can be set as an external warning light or external buzzer and will be triggered along with the Octalarm-Touch. For relay settings, please go to ’Outputs’.

  • Page 29: Configuration

    Deleting an EM-8001 will also delete all settings for the external IO. Dashboard change Now that the Octalarm-Touch can have up to 24 alarm inputs, the dashboard has been updated to allow users to view all alarms. Simply press the icon to show a list of all underlying alarms.

  • Page 30: Technical Specifications

    0°C ... +50°C Storage Temperature 0°C ... +85°C Relative humidity 20% - 85% (non-condensed) IP code IP42 Operating altitude Up to 2000 metres Regulations EN 301 489-1 V2.1.1 / EN301 489-3 V1.6.1 EN 62368 Manual Octalarm-Touch | Back to index Page 30...

  • Page 31: Em-8001 (External Io)

    -40°C ... +85°C Relative humidity 20% - 85% (non-condensed) IP code IP30 Operating altitude Up to 2000 metres Regulations Emission: EN 55032 (2012) + AC (2013), class B Immunity: EN 55024 (2010), 10Vrms Manual Octalarm-Touch | Back to index Page 31...
  • Page 32 Molenweer 4 +31 174 794022 2291 NR Wateringen www.adesys.nl The Netherlands info@adesys.nl More information on the website Version 11-2020...
