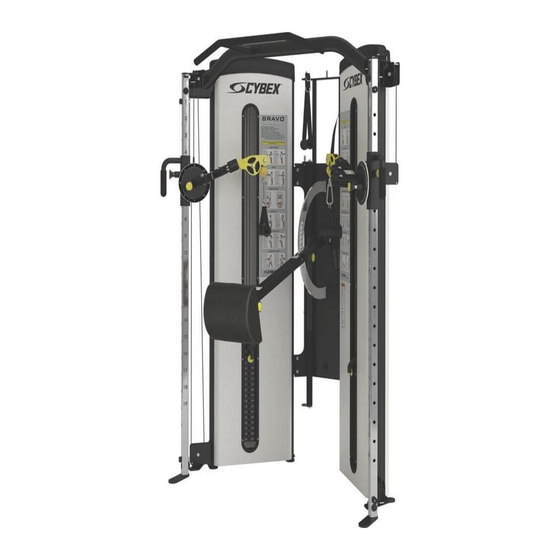

Product Number 8800/8810/8830/8840
Owner's Manual
Strength Systems
Part Number 8800-999-4 G
www.cybexinternational.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8800 and is the answer not in the manual?

Questions and answers

Related Manuals for CYBEX 8800

Summary of Contents for CYBEX 8800

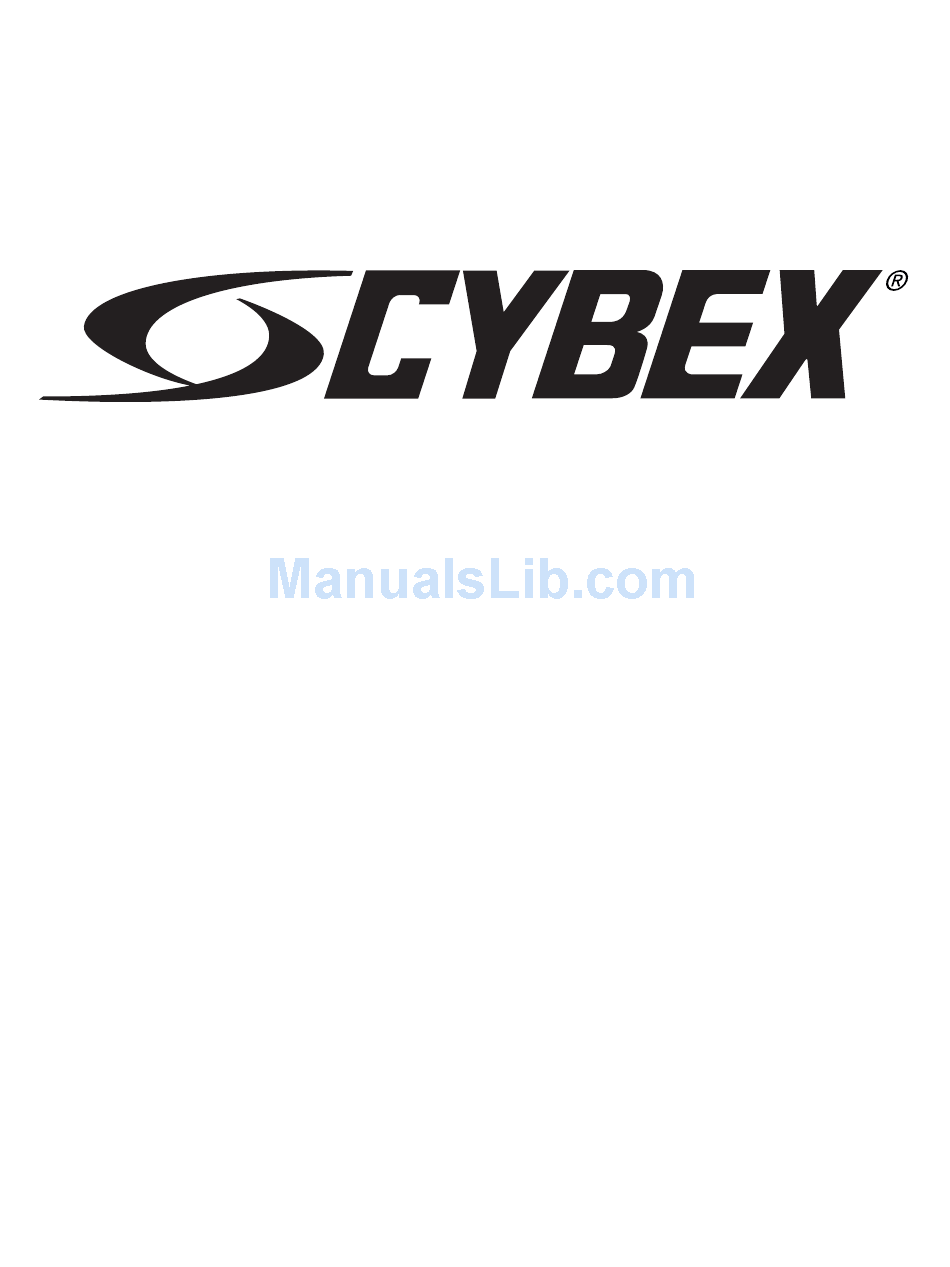

  • Page 1 Product Number 8800/8810/8830/8840 Owner’s Manual Strength Systems Part Number 8800-999-4 G www.cybexinternational.com...
  • Page 3 Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 5: Table Of Contents

    Table of Contents 1 Safety Safety ......1-1 Safety Guidelines and Practices..Warning/Caution Decals .

  • Page 7: Safety

    Product Number 8800/8810/8830/8840 Owner’s Manual 1 - Safety Safety Read the Owner’s Manual carefully before assembling, servicing or using the equipment. It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper operation of the equipment and review all labels.

  • Page 8: Safety Guidelines And Practices

    Product Number 8800/8810/8830/8840 Owner’s Manual • Make sure that each machine is set up and operated on a solid level surface. Do not install equipment on an uneven surface. • Make sure that all users are properly trained on how to use the equipment.

  • Page 9: Warning/Caution Decals

    Product Number 8800/8810/8830/8840 Owner’s Manual 3. Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the equipment to the fl oor. 4. Due to the wide variation of fl ooring on which machines may be anchored or installed, verify anchoring method and anchoring fasteners with a qualifi...
  • Page 10 Product Number 8800/8810/8830/8840 Owner’s Manual Safety Page 1-4...
  • Page 11 Product Number 8800/8810/8830/8840 Owner’s Manual 8800/8810 (both sides) (both sides) Description Part No. A. Warning Label....4605-381-4 B. Caution Decal.....8500-025-4 C. Caution Decal.....8800-442-4 Safety Page 1-5...

  • Page 12: Regular Maintenance Activities

    Product Number 8800/8810/8830/8840 Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. The preventative maintenance actions are described in detail in Chapter 5.

  • Page 13: Exercises

    Product Number 8800/8810/8830/8840 Owner’s Manual 2 - Exercise Intended Use The intended use of this equipment is to aid or improve general physical fi tness and exercise. For Commercial use. Instructions Read and understand all instructions and warnings prior to using this machine. See Chapter 1, Safety, in the Owner’s Manual or consult with fl...
  • Page 14 Product Number 8800/8810/8830/8840 Owner’s Manual ARM EXTENSION TRUNK ROTATION SQUAT HIP ABDUCTION HIP ADDUCTION HIP FLEXION-KNEE EXTENSION TRUNK FLEXION HIP EXTENSION-KNEE FLEXION TRUNK EXTENSION Exercise Page 2-2...

  • Page 15: Customer Service

    Product Number 8800/8810/8830/8840 Owner’s Manual 3 - Customer Service Contacting Service Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m Eastern Standard Time. For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.

  • Page 16: Damaged Parts

    Product Number 8800/8810/8830/8840 Owner’s Manual 1. Call the Customer Service Hot Line listed above for the return of any item that is defective. 2. Provide the technician with a detailed description of the problem you are having or the defect in the item you wish to return.

  • Page 17: Assembly

    3. Move to desired location. NOTE: If machine is an 8800/8830 and does not fi t through doorway proceed to step 10. NOTE: If machine is an 8810/8840 and does not fi t through doorway proceed to step 10J - 10P. Proceed to step 13 to install Chin-Up Bar.
  • Page 18 Product Number 8800/8810/8830/8840 Owner’s Manual Carefully place frame on fl oor. Carefully place rubber feet (supplied with machine) on each foot of the frame. 5. Securely anchor machine to the fl oor. Securely anchor machine to the fl oor using the anchor holes provided in each machine.
  • Page 19 Product Number 8800/8810/8830/8840 Owner’s Manual Using a 3/16” pin punch and hammer, carefully remove roll pin securing cable end to top weight connec- tor. See Figure 3. Cable End Top Weight Connector Roll Pin Figure 3 Carefully lean guide rods slightly outward.
  • Page 20 Product Number 8800/8810/8830/8840 Owner’s Manual Carefully align weight plates over guide rods and slowly lower each weight plate. NOTE: When installing weight plates, position plates so wide edges of bushings face upward and narrow edges of bushings face downward. See Figures 5a and 5b.
  • Page 21 Carefully place shrouds into position. Secure top cap in place with the two BHSCS removed in step 6A. 10. Separate frame for 8800/8830 (If needed to fi t thru doorway). Remove shipping pallet (refer to step 4). Locate insert plug. See Figure 8.
  • Page 22 10I. Verify all BHSCS are securely tightened. Insert plugs removed in step 10C for 8800/8830 or from hardware pack for the 8810/8840. 11. Install weight plates, decals, cable routing and, shroud assembly for 8800/8830. Refer to step 6A - 9B for weight plates, decals, cable routing, and shroud assembly.
  • Page 23 Product Number 8800/8810/8830/8840 Owner’s Manual 14. Install weight plates, decals, cable routing and shroud assembly for 8810/8840. Refer to steps 6A - 9B for weight plates, decals, cable routing, and shroud assembly. 15. Verify proper operation.
  • Page 24 Product Number 8800/8810/8830/8840 Owner’s Manual...

  • Page 25: Maintenance

    Product Number 8800/8810/8830/8840 Owner’s Manual 5 - Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines.
  • Page 26 Product Number 8800/8810/8830/8840 Owner’s Manual More Diffi cult Stains • Dampen a soft white cloth with a solution of 10% household bleach (sodium hypochlorite), 90% water. Rub gently. Rinse with a water dampened cloth to remove bleach concentration. • The same procedure can be used with full strength household bleach, if necessary.
  • Page 27 Product Number 8800/8810/8830/8840 Owner’s Manual Compatible Cleaners and Detergents: • Formula 409 • Top Job • • Palmolive • Windex with Ammonia D To Minimize Fine or Hairline Scratches: Mild automotive polish applied and removed with a soft, clean cloth will help fi ll scratches.

  • Page 28: Weekly Procedures

    Product Number 8800/8810/8830/8840 Owner’s Manual Weekly Procedures 1. Check all nuts and bolts for looseness. Tighten as required. 2. Inspect all cables for wear or damage and proper tension. When inspecting cables, run fi ngers on the cable, paying particular attention to bends in cable and attachment points.

  • Page 29: Yearly Procedures

    Product Number 8800/8810/8830/8840 Owner’s Manual 3. Inspect bars and handles for wear, paying particular attention to tab area connection points. Replace all worn handles immediately. CAUTION: Replace all worn handles immediately. Do not use if less than 1/8” of material remains to the edge.

  • Page 30: Cable Adjustment

    Product Number 8800/8810/8830/8840 Owner’s Manual Cable Adjustment Three types of cable tension adjustment are used on Cybex Strength Systems: 1. Jam Nut Adjustment - This type uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment.

  • Page 31: Environment

    Product Number 8800/8810/8830/8840 Owner’s Manual Environment Humidity and Static Electricity The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%.
  • Page 32 Product Number 8800/8810/8830/8840 Owner’s Manual This page intentionally left blank. Maintenance Page 5-8...
