PRODUCT DESCRIPTION

A Flowtronex Silent Storm Variable Speed
Pumping System is
requirements provided by the purchaser. The
Silent Storm pumping system is a modular
variable speed system designed to maintain a
constant discharge pressure while providing a
variable flow rate to match the water demand of
the system. The system
consumption by combining a variable speed lead
pump with constant speed lag pumps. The Silent
Storm utilizes a microprocessor-based controller
to efficiently manage pump operation to match a
wide range of pressure boosting applications.
Silent Storm Variable Speed Pumping Systems
are self-contained, pre-assembled and factory-
tested pumping plants. Silent Storm utilizes state
of the art technology, yet employs a simplistic and
straightforward design that makes installation,
operation, and maintenance an easy task, even for
the most inexperienced of operators.
This manual serves as a guide to understanding
the features of Silent Storm Pumping Systems and
provides a quick and clear reference for answers
to most questions pertaining to its service. Every
attempt has been made to explain all facets of
system operation and maintenance. However,
should you have specific questions not addressed
in this manual, you are encouraged to contact your
nearest Flowtronex
representative, or the factory (800-786-7480
Ext. 3).

OPERATIONAL LIMITS

See pumping system nameplate information for
pumping system flow capacity, pressure, full load
current and electrical ratings.
Unless special provisions have been made for
your pumping systems, the system pressure rating
is as follows:
Pump system type
End suction centrifugal
Vertical turbine

GENERAL DESCRIPTION

custom built to
minimizes power
Authorized FlowNet
Max discharge pressure
175 psi
200 psi

NAMEPLATE INFORMATION

The system nameplate gives identification and
the rating information as identified in the figure below.

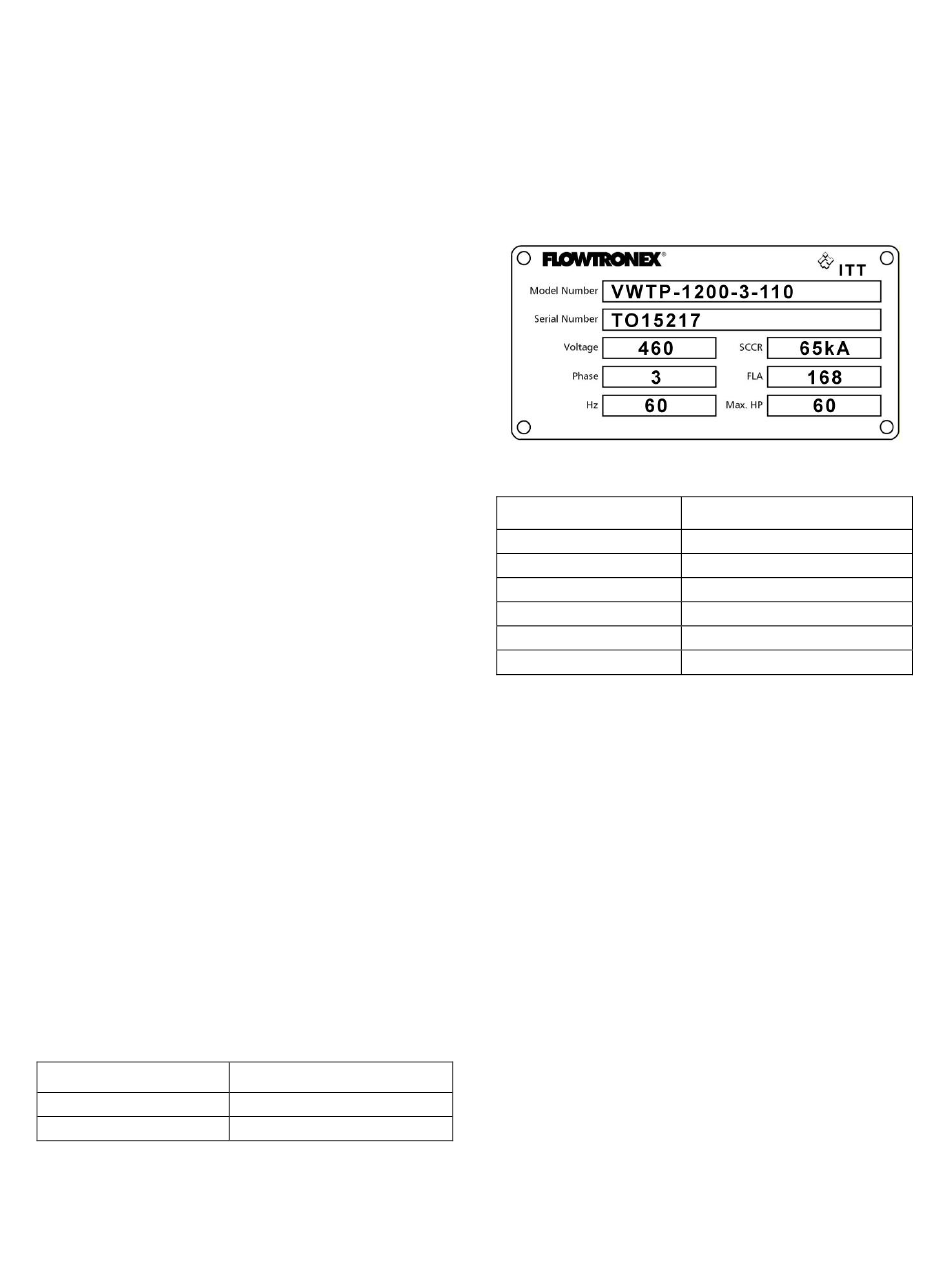

Figure 1:
Field
Voltage
SCCR
Phase
FLA
Hz
Max. HP
Permanent records for this system are referenced
by the serial number. Include the serial number
with all correspondence and spare parts orders.

STATION NUMBERING

Example: V W T P - 900 - 3 - 120
1. Control Type:
V = VFD
2. Water Source Type:
W = Wet Well
V = Vessel
C = Can
F = Flooded
L = Lift
B = Boost
D = Deep Well
5
Sample Nameplate
Explanation
Required input voltage
Short circuit current rating
Number of motor phases
Full load amps
Required frequency (hertz)
Maximum horsepower
