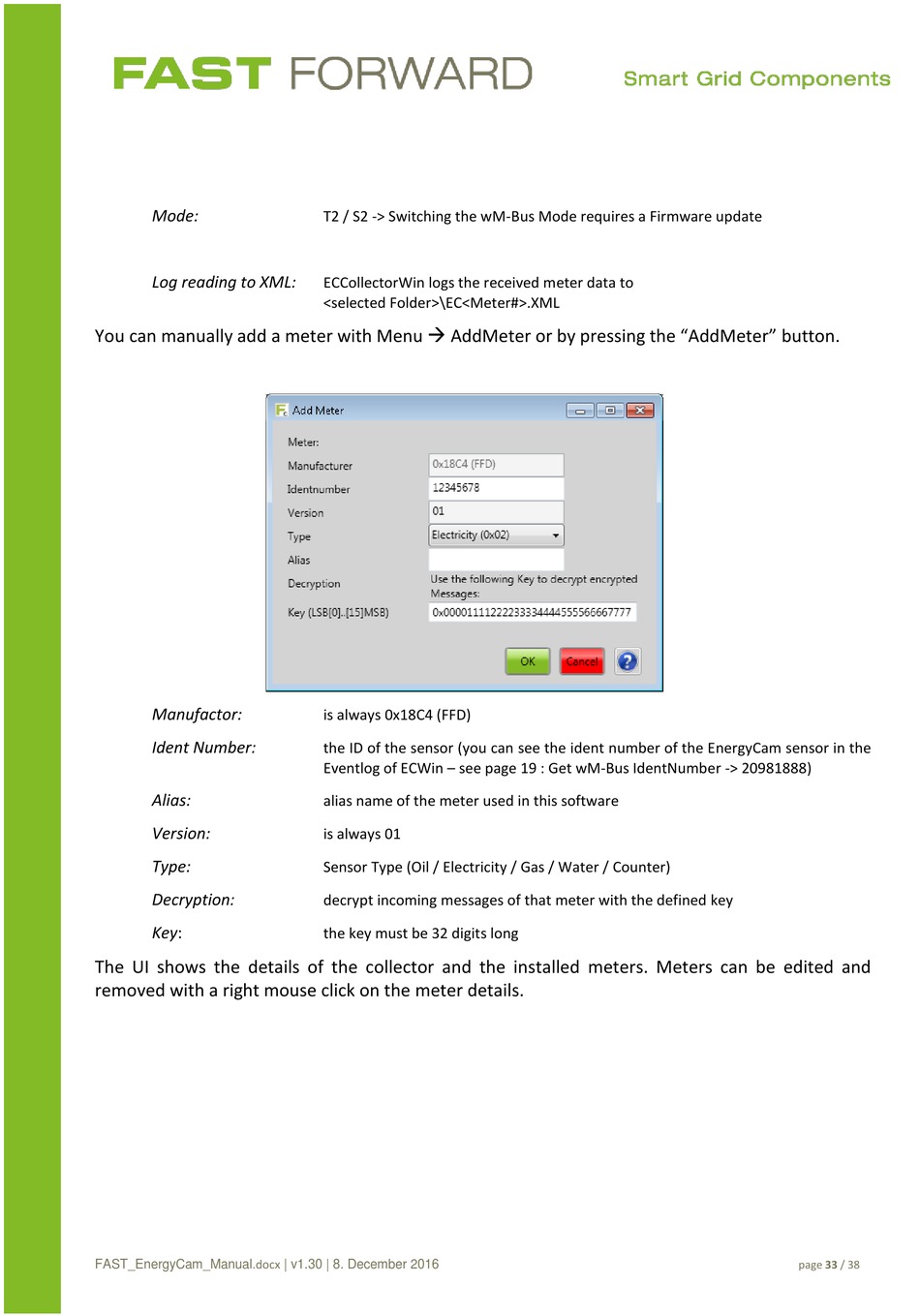

Fast Forward EnergyCam Getting Started Tutorial page 33

Mode:
Log reading to XML:
You can manually add a meter with Menu  AddMeter or by pressing the "AddMeter" button.
Manufactor:
Ident Number:
Alias:
Version:
Type:
Decryption:
Key:
The UI shows the details of the collector and the installed meters. Meters can be edited and
removed with a right mouse click on the meter details.
FAST_EnergyCam_Manual.docx | v1.30 | 8. December 2016
T2 / S2 -> Switching the wM-Bus Mode requires a Firmware update
ECCollectorWin logs the received meter data to
<selected Folder>\EC<Meter#>.XML
is always 0x18C4 (FFD)
the ID of the sensor (you can see the ident number of the EnergyCam sensor in the
Eventlog of ECWin – see page 19 : Get wM-Bus IdentNumber -> 20981888)
alias name of the meter used in this software
is always 01
Sensor Type (Oil / Electricity / Gas / Water / Counter)
decrypt incoming messages of that meter with the defined key
the key must be 32 digits long
page 33 / 38
