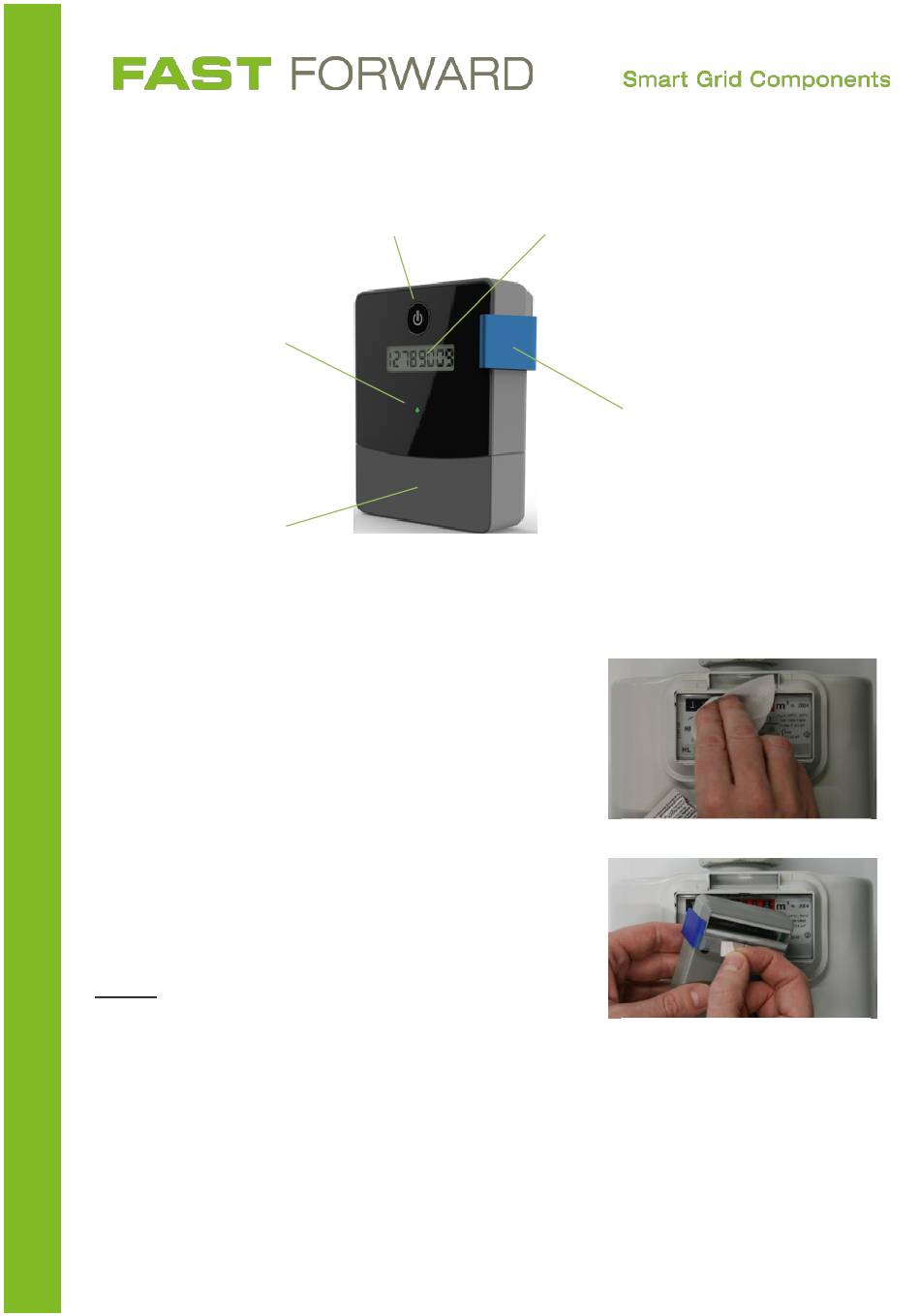

e. Installation of EnergyCam 2.0 on a meter
LED (green/red)
Compartment for interface
connectors and battery
Install EnergyCam 2.0 on a meter in five easy steps
Step 1:
Use the 3M cleaning cloth to remove dust and dirt from
the meter window. This ensures that the adhesive pad
sticks properly.
Step 2:
Remove the liner from the adhesive of the mounting
bracket.
Advice: To avoid sticking on the meter too early try steps
3 to 5 without removing the liner from the adhesive.
