Power Down:
Installmode:
Reset:

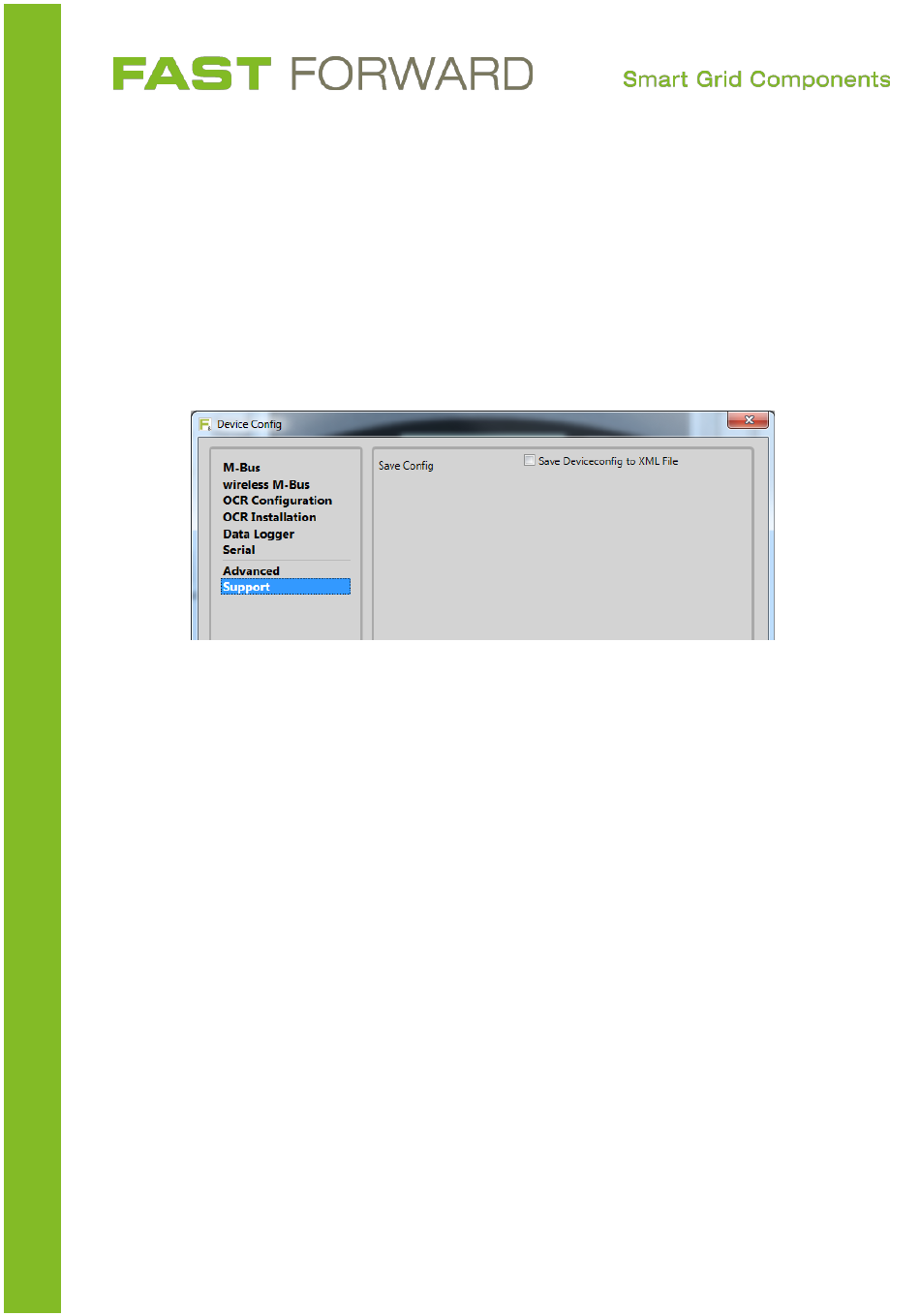

Support :
Save Config:
e. Install EnergyCam with ECWin
The EnergyCam device can be installed by pressing the button on the device or in the UI.
Depending on the configuration the button in the UI is labeled "Install OCR" or "Install OCR/wM-
Bus".
The device must be positioned on the meter as described in "
FAST_EnergyCam_Manual.docx | v1.30 | 8. December 2016
Sends the device into Power-down after a reading. With serial protocols, the power-
down mode should only be used with point-to-point connections. When using a battery
this mode is automatically activated and don't have to be selected.
Enable Auto Install after power up of the EnergyCam device.
Starts an install cycle if the button of the device is not pressed in between 30 seconds
after powering up the device.
Reset all settings, except the serial ones, to the default.
Save Deviceconfig to XML File.
page 28 / 38
