Wallbox eNext

Remote control function

I
Remote control function is a potential free contact which allows the remote start and stop of a charge
transaction.

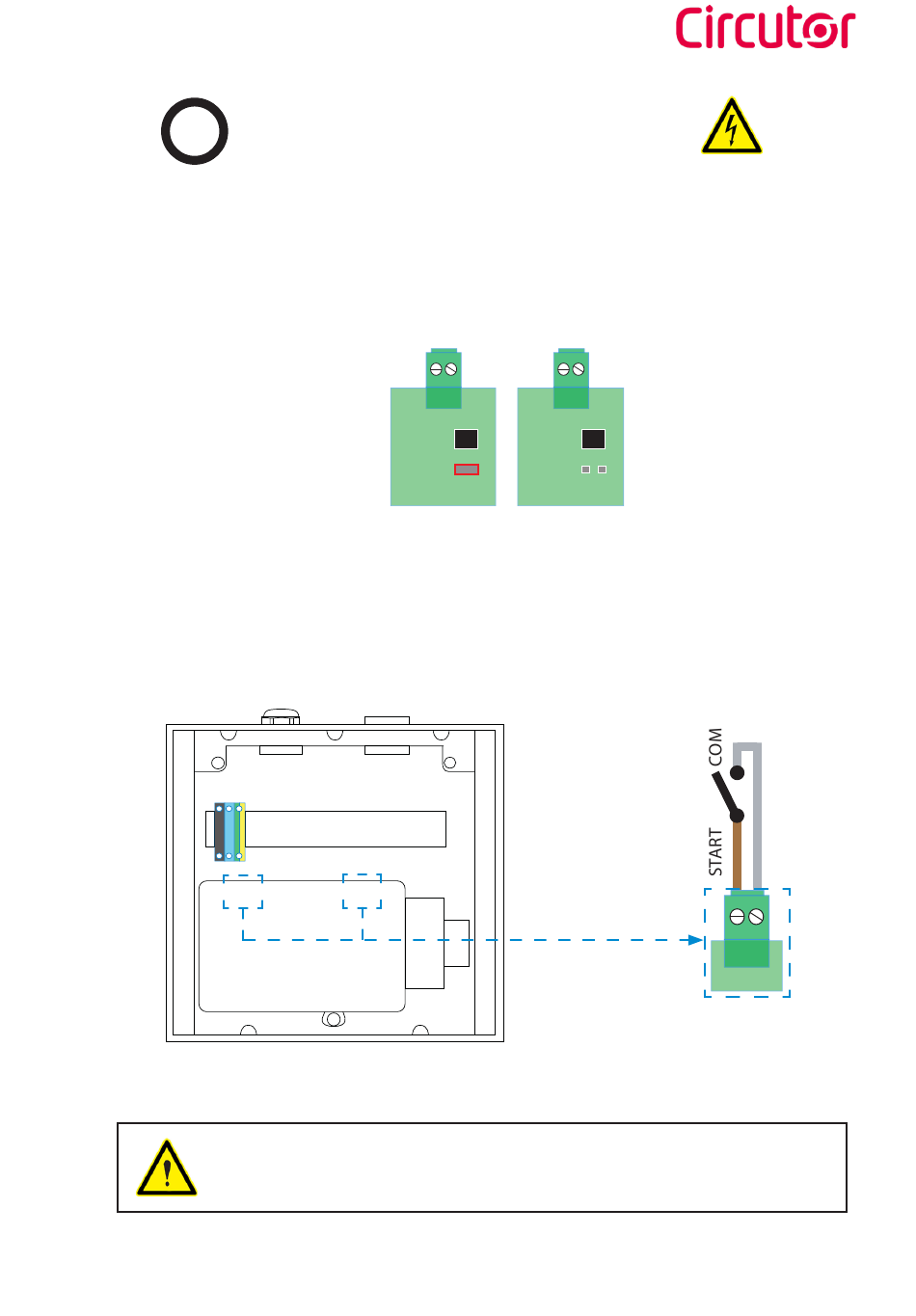

This remote control function is disabled by default, by means of a jumper (as shown in the picture
below). The jumper shall be removed to enable this function.
This Jumper (J7) can be found in front of the port BOR4 on the main PCB inside the Charge Point
When the jumper is removed, a device outside of the Charge Point can be placed to control the charge
transaction. This device should close the contact "START" to allow the charge transaction. If the contact
is open, the charge transaction wont be able to start.
(1)
(1) - Location of the BOR4 in the eNext Charge Point.
(2) - Location of the BOR4 in the eNext Elite Charge Point.
Do not remove the jumper if remote control function is not required, otherwise the
charge transaction process cannot start while the contact is open.
Installation guide
BOR4
JUMPER (J7)
DISABLED
(2)
BOR4
NO JUMPER (J7)
ENABLED
DRY
CONTACT
BOR4
