Wiring

This Charge Point is designed to be permanently connected to an AC supply network.
Use provided cable glands in order to maintain the IP protection
• The current of the power supply can be limited. In order to perform this adjustment please refer to
the corresponding User Manual.
• The IEC-61851-1:2017 standard indicates that each plug shall have protections. In case the Charge
Point has no protections inside, they shall be placed upstream. These protections shall be as
follows:
° RCD: Residual current device. Standards: IEC 61008-1, IEC 61009-1,IEC 60947-2 or IEC 62423.
° RCD(s) rated residual operating current not exceeding 30 mA.
° For AC fault current, RCD(s) protecting that connecting points shall be at least type A.
° RCD(s) shall disconnect all live conductors.
° DC fault current shall be mesured by a RCD type B or a appropriate equipment that ensures the
disconnection of the supply in case of DC fault current above 6 mA.
° MCB(s): Miniature circuit breaker. Standards: IEC 60898-1, IEC 60947-2 or IEC 61009-1.
° MCB(s) minimun breaking capacity 4 kA.
NOTE: In the following countries self-reclosing of protection means is not allowed: DK, UK, FR, CH.
Installation guide

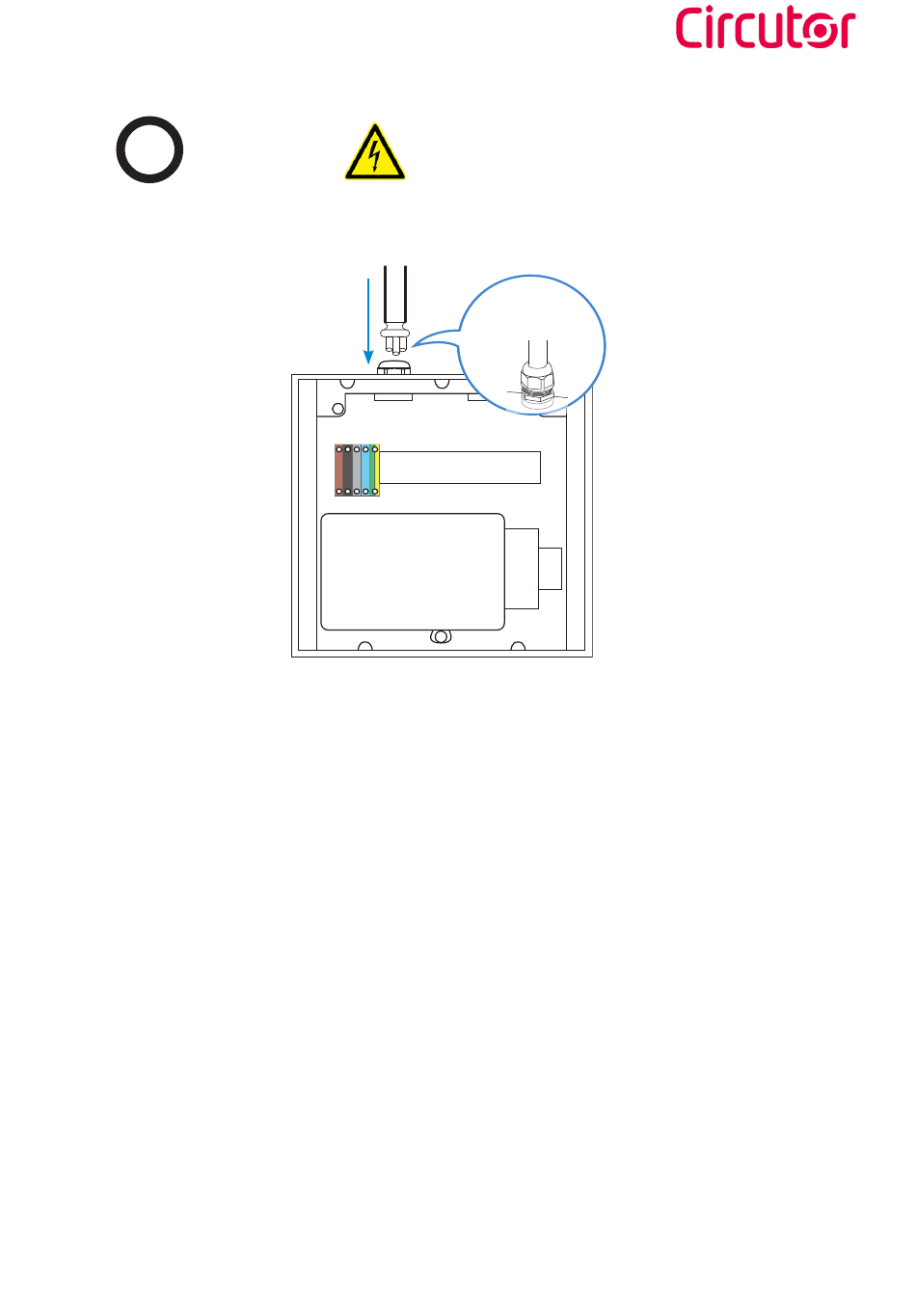

Cable
glands M32
A A
