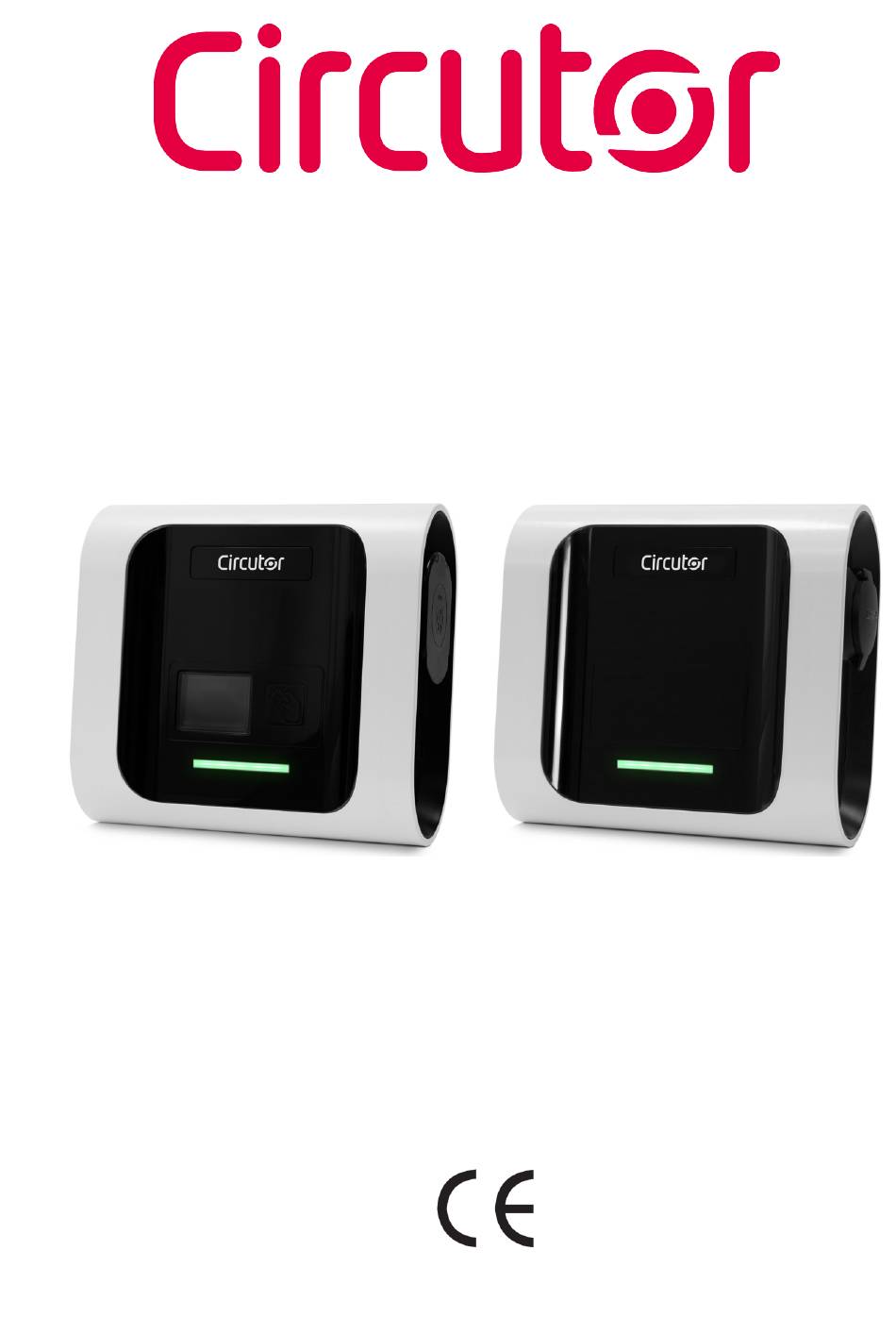

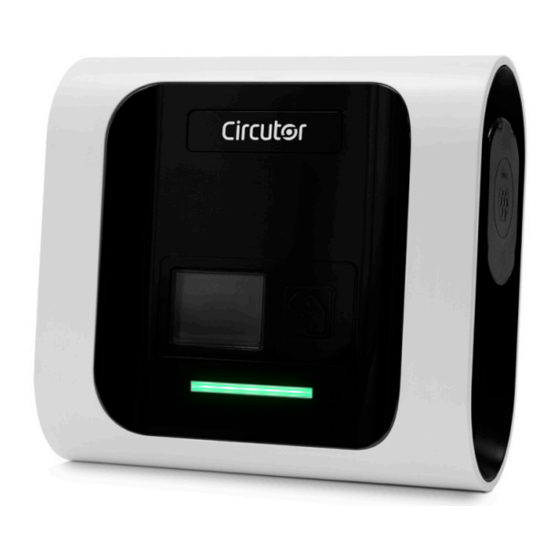

- Page 1 Wallbox eNext Series INSTALLATION GUIDE (M255A01-03-21A)
-
Page 2: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifications and the most updated manuals. - Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2019 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
- Page 4 Wallbox eNext Installation guide...
-
Page 5: Table Of Contents
Wallbox eNext Here’s your guide to install eNext. Disclaimer ..............................2 Revision log..............................2 Here’s your guide to install eNext....................5 1.-So,hello!...............................6 2.-Before the installation.........................8 3.- Overview..............................12 4.- Dimensions............................14 5.- Installation............................16 A. Requirements..........................17 B. Opening............................18 C. Positioning............................19 D. Fixing.............................20 E. Wiring.............................21 F. CirBEON............................23 G. - Page 6 Wallbox eNext Installation guide...
-
Page 7: So,Hello
Wallbox eNext So, hello! This manual provides commissioning information about Wallbox eNext series, which has been designed and tested to allow electric vehicle charging according to IEC 61851-1:2017. This document has different sections such as step-by-step installation procedure and technical data. - Page 8 Wallbox eNext I M P O R TA N T E L E C T R I C A L S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly handling of electrical parts.
-
Page 9: Before The Installation
IEC 61851. (broken plugs, caps that don’t close...). • Do not modify this unit. If modified, • Use only CIRCUTOR supplied spare parts. Circutor will reject all responsibility and the warranty will be void. • Do not use this product if the enclosure or the EV connector is broken, cracked, open, •... - Page 10 Wallbox eNext E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before starting wir- ing connections of the Charge Point. 1 —...
- Page 11 Wallbox eNext Installation guide...
- Page 12 Wallbox eNext What’s included: Installation Guide Charge Point Installation Manual Identification Allen wrench label 2.5 mm Not in the eNext Elite Model Installation guide...
-
Page 13: Overview
Wallbox eNext Overview 1 — Beacon lights 4 — Logo 7 — Wall support holes 2 — Colour Screen 5 — Cable glands 8 — Closing box holes 3 — RFID reader 6 — Plugs Only in eNext Elite model Plugs may vary depending on the model Installation guide... - Page 14 Wallbox eNext Dimensions in mm Installation guide...
-
Page 15: Dimensions
Wallbox eNext Dimensions 62.5 52.5 52.5 62.5 39.5 20.5 Installation guide... - Page 16 Wallbox eNext Material: • Allen wrench of 2,5 mm is included in the installation kit. Screws, sealing washers and plastic anchors are not included. • • The fastening system of the Charge Point has been designed to be installed on a wall. This system has been tested on a concrete wall, to be securely fixed in »...
-
Page 17: Installation
Requirements Please comply with your country regulations. • The Charge Point shall be installed on a wall or on CIRCUTOR accessories. • When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. The picture below shows the recommended minimum distances:... -
Page 18: Opening
Wallbox eNext Opening Open the Wallbox using allen wrench. 2.5mm Allen wrench Screw DIN-7380-2 M4x14 INOX Sealing washer DIN 7712 4.8 14MM INOX Use the ratchet tool to open / close in conditions that hinder access Installation guide... -
Page 19: Positioning
Wallbox eNext Positioning Drill the wall. Drill bit M 6/8 1100 Dimensions in mm Installation guide... -
Page 20: Fixing
Wallbox eNext Fixing Place the unit on the previous pierced points and fix it with screws. Installation guide... -
Page 21: Wiring
Wallbox eNext Wiring This Charge Point is designed to be permanently connected to an AC supply network. Use provided cable glands in order to maintain the IP protection Cable glands M32 • The current of the power supply can be limited. In order to perform this adjustment please refer to the corresponding User Manual. - Page 22 Wallbox eNext External electric protections shall be placed upstreams as shown below: SINGLE-PHASE Charge Point THREE-PHASE Charge Point • Connect to the 230V~. • Connect to the 400V~. • If the Power Supply is Single-Phase, connect L1 and N. Protections Protections Terminal block maximum cross-section: 10mm Do not forget to connect the ground cable to the ground terminal...
-
Page 23: Cirbeon
Wallbox eNext CirBEON CirBEON is an optional device that optimises the charge. Analysing the total current consumption in residential facilities, CirBEON manages the remaining current for the Charge Point, avoiding any tripping on the Main Circuit. Please, note that this accessory is only available for single phase Charge Points. MCCB CirBEON Other... -
Page 24: Dc Current Leakage Detector
Wallbox eNext DC current leakage detector This protection is performed in two different ways depending on the Charge Point power supply. • Single-phase power supply: The detector sends a signal to the Charge Point main PCB which stops the charge transaction by opening the inner relays. This error is notified by 6 blinking red lights. In order to restart the charge transaction, unplug the EV. -
Page 25: Remote Control Function
Wallbox eNext Remote control function Remote control function is a potential free contact which allows the remote start and stop of a charge transaction. This remote control function is disabled by default, by means of a jumper (as shown in the picture below). -
Page 26: Closing
Wallbox eNext Closing C l o s e t h e C h a r g e P o i n t a s p e r t h e f o l l o w i n g s t e p s o f v e r i f i c a t i o n a n d o p e r a t i o n . 1 —... - Page 27 Wallbox eNext 8 — S E C U R E C L O S U R E • Tighten the screws crosswise in the sequence shown below. • As a guideline, the recommended assembly torque is 0.8-1Nm. 9 — P R E V E N T I V E M A I N T E N A N C E It is recommended to perform one preventive maintenance per year.
- Page 28 Wallbox eNext ELECTRICAL DATA MODELS: eNext, eNext Elite M-C1 M-C2 T-S2 T-C2 Power supply 1P+N+PE 1P+N+PE 3P+N+PE 3P+N+PE Input voltage 230V~±10% 230V~±10% 400V~±10% 400V~±10% Frequency 50Hz / 60Hz Output Power 7.4 kW 7.4 kW 22 kW 22 kW Output current 32 A Connectors type Type 1 Cable...
-
Page 29: Technical Data
Wallbox eNext Technical Data CONNECTIVITY MODEL: eNext Wireless communication Bluetooth v4.2 + BLE MODEL: eNext Elite Ethernet 10/100BaseTX (TCP-IP) Wi-Fi 2.4GHz (IEEE 802.11b/g/n) Cellular Modem 4G / 3G / GPRS / GSM (12) Interface protocol OCPP 1.6J Optional. (12) ENVIRONMENTAL CONDITIONS Operating temperature -5ºC ... - Page 30 Wallbox eNext Installation guide...
-
Page 31: Need Help
Wallbox eNext Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 32 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
