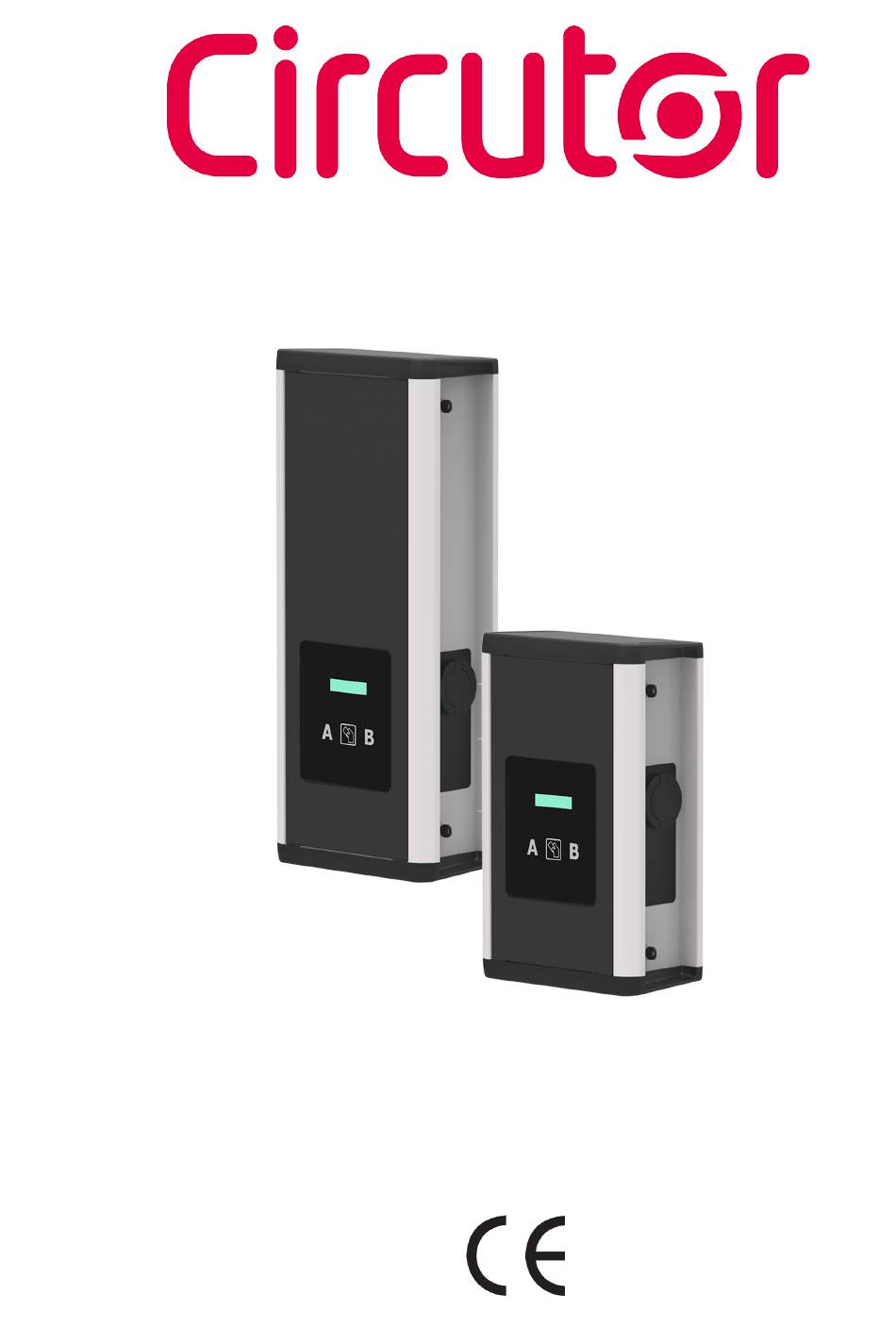

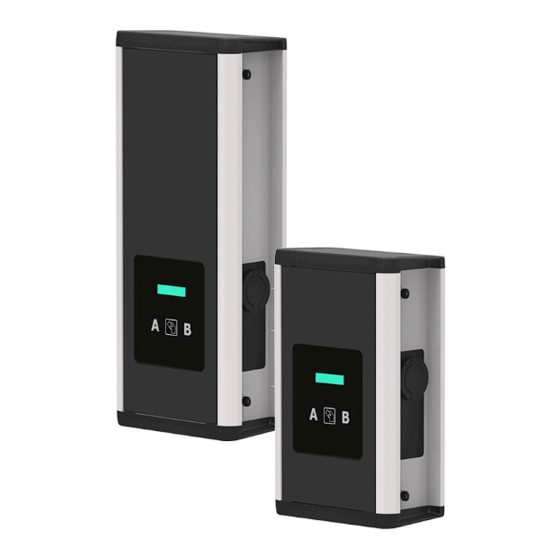

- Page 1 URBAN WB Series INSTALLATION GUIDE (M268A01-03-19A)
-
Page 2: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifi- cations set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the de- vice specifications and the most updated manuals. -
Page 3: Table Of Contents
URBAN WB Here’s your guide to install URBAN WB. Disclaimer ..............................2 Revision log..............................2 Here’s your guide to install URBAN WB....................3 1.-So,hello!..............................4 2.-Before the installation..........................6 3.- Overview..............................8 4.-Dimensions............................10 A. Small...............................10 B. Large..............................11 5.- Installation.............................12 A. Space requirements..........................13 B. Plates fixation............................15 C. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2017 by CIRCUTOR. All rights are reserved. CIRCUTOR., S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: So,Hello
URBAN WB So, hello! This manual provides commissioning information about URBAN WB, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK... - Page 6 (broken plugs, caps that modes are expected in IEC 61851. don’t close...). • Use only CIRCUTOR supplied spare • Do modify this unit. modified, CIRCUTOR will reject all parts.
-
Page 7: Before The Installation
URBAN WB Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point. - Page 8 URBAN WB What’ s included: Installation Guide CirCarLife RFID Installation Mifarc Card Charge Point Guide Cable Glands URBAN WB key Installation kit Installation guide...
-
Page 9: Overview
URBAN WB Overview 1 — Hat 4 — Plugs 2 — Key lock access 5 — Wall support 3 — Display & RFID 6 — Base Reader Plugs may vary depending on the model Installation guide... - Page 10 URBAN WB Small Measures in mm Installation guide...
-
Page 11: Dimensions
URBAN WB Dimensions Large Measures in mm Installation guide... - Page 12 URBAN WB Installation Kit: Wall plates Fixation Screw • Screws and plastic anchors are NOT INCLUDED. The installation kit has been tested on a concrete wall. For the unit to • be securely fixed in such conditions, it is recommended to use: 8 x Inox A2 wall screws: DIN 7982 Ø4,8x38 or DIN 7981 Ø4,8x38 8 x plastic anchors: 6x30 •...
-
Page 13: Installation
URBAN WB Installation Space requirements When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the minimum distances: Measures in mm Front view Installation guide... - Page 14 URBAN WB Wall plates: Installation guide...
-
Page 15: Plates Fixation
URBAN WB Plates fixation Install the plates on the wall considering the distances shown on the image below: SMALL LARGE 1000 1000 Measures in mm Front view Installation guide... -
Page 16: Positioning
URBAN WB Positioning Place de unit on the previously installed wall plates. Installation guide... -
Page 17: Opening
URBAN WB Opening Use provided key in order to open the unit. Unit fixation Tighten the provided fixation screw in order to secure the unit to the wall and make sure all components remain as by default before proceeding. Installation guide... -
Page 18: Wiring
URBAN WB Wiring SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT Connect to the 230V~. Connect to the 400V~. • • • If the Power Supply is Single- Phase, connect L1 and N. Use provided cable glands in order to mantain the IP protection •... -
Page 19: Verification
URBAN WB Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. - Page 20 URBAN WB ELECTRICAL DATA M22-C1 T22-C2 SLAVE M2 SLAVE T2 SLAVE M2-C1 SLAVE T2-C2 MASTER M MASTER T MASTER M-C1 MASTER T-C2 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE Power supply 230V~± 10% 400V~± 10% 230V~±10% 400V~±10% Input voltage 67 A Input Current 50Hz / 60Hz Frequency M22 / SLAVE M2...
-
Page 21: Technical Data
URBAN WB Technical Data ENVIRONMENTAL CONDITIONS -5ºC ... +45ºC Operating temperature -30ºC ... +45ºC Operating temperature with Low temperature kit -20ºC ... +60ºC Storage temperature 5% ... 95% Non-condensing Operating humidity MECHANICAL DATA Enclosure rating IP54 / IK10 Enclosure material Aluminium &... - Page 22 URBAN WB Installation guide...
-
Page 23: Need Help
URBAN WB Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 24 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
