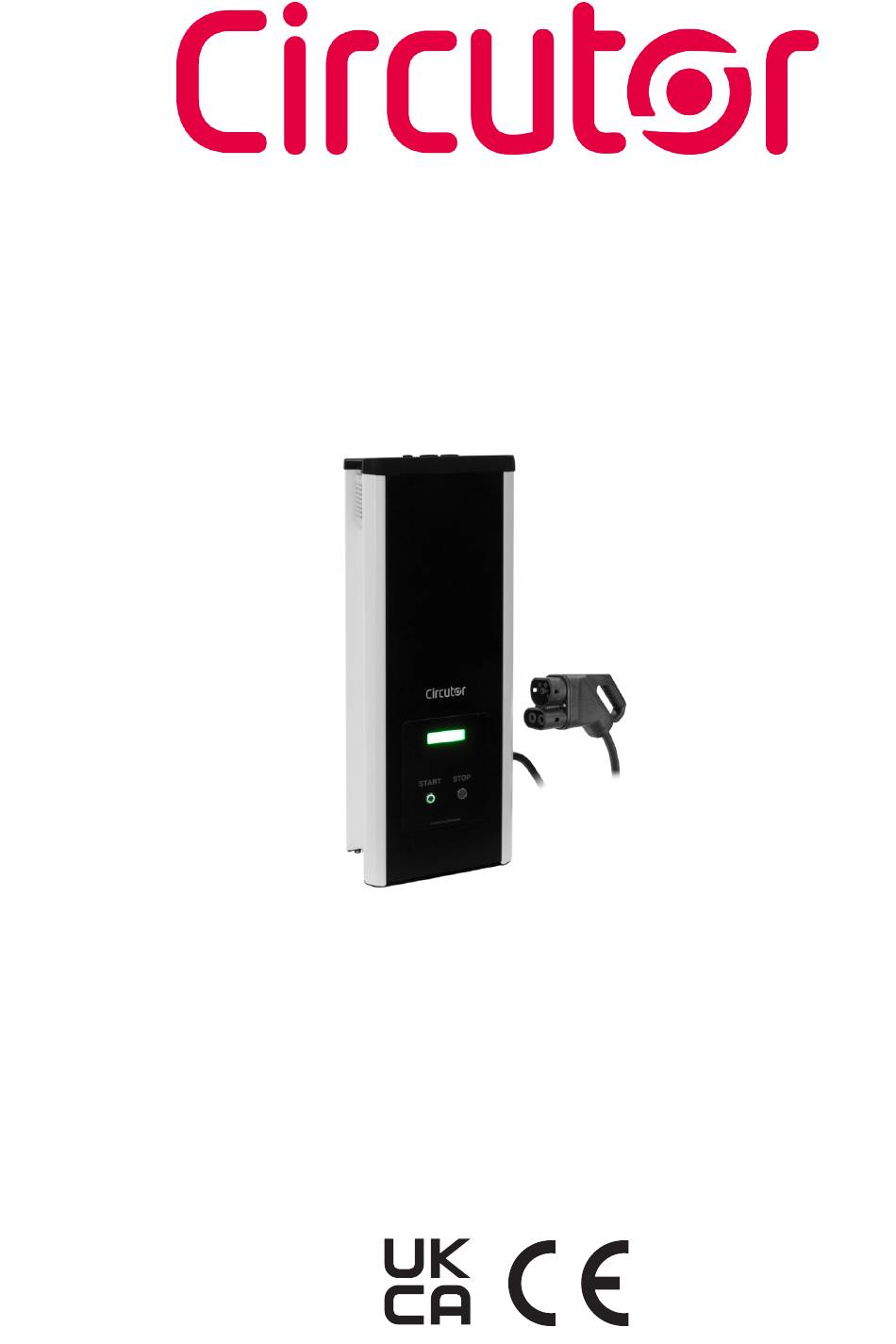

- Page 1 URBAN WB DC Series INSTALLATION GUIDE (M328A01-03-22A)
- Page 2 URBAN WB DC Installation Guide...
-
Page 3: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
URBAN WB DC Here’s your guide to install URBAN WB DC Disclaimer ................................3 Revision log................................3 Here’s your guide to install URBAN WB DC ....................5 1.-So, hello .................................6 2.-Before installation............................8 A. Important Safety Instructions.......................8 B. Electrical wiring considerations......................9 C. Important Electrical Safety Instructions....................10 D. - Page 6 URBAN WB DC Installation Guide...
-
Page 7: So, Hello
URBAN WB DC So, hello! This manual provides commissioning and use instructions information about URBAN WB DC, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK... -
Page 8: Before Installation
(broken plugs, caps that don’t close...). • Do not use this device for anything other than electric vehicle charging • Use only CIRCUTOR supplied spare modes are expected in IEC 61851. parts. • Do not modify this device. If modified, •... -
Page 9: Electrical Wiring Considerations
URBAN WB DC Before installation E l e c t r i c a l w i r i n g c o n s i d e r a t i o n s Take into consideration this section before start wiring connections of the Charge Point. -
Page 10: Important Electrical Safety Instructions
URBAN WB DC Important Electrical Safety Instructions Read carefully all the instructions before starting in order to ensure properly handling of electrical parts. A safe work environment is not enough to control all potential electrical hazards. It is recommended to be very cautious and work safely. So, the safety rules shown below could help to control risks of injury or death from workplace hazards. -
Page 11: Evse Classification
URBAN WB DC EVSE Classification Classification of the unit according to the IEC 61851-1:2017: 1 — Power supply Input • EV supply equipment connected to AC supply network • Permanently connected 2 — Power supply Output • DC EV supply equipment 3 —... -
Page 12: Oveview
URBAN WB DC What’s included: Installation guide Installation & Wall plates Charge Point User Manual URBAN WB DC Cable roller Fixation key + security key screw Installation Guide... - Page 13 URBAN WB DC Overview Basic Serie Satellite Serie 1 — Hat 5 — Wall support 9 — STOP button 2 — Key lock access 6 — Base 10 — Power input 3 — Ventilation 7 — LED Beacon light 4 — Cable output 8 —...
- Page 14 URBAN WB DC Charge Point: Measures in mm Installation Guide...
-
Page 15: Dimensions
URBAN WB DC Dimensions Wall plates: Installation Guide... - Page 16 URBAN WB DC What is needed: Fixation Wall plates screw Wall screws Anchors Screws and anchors are NOT INCLUDED. • • It is highly recommended that the installation kit would be installed in brick or concrete wall. • Before the installation, a qualified installer must check that the wall is in a perfect condition, and which screws and anchors are suitable for that conditions.
-
Page 17: Installation
URBAN WB DC Installation Space requirements When installing the device, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the minimum distances: Measures in mm Front view y distance shall be chosen according to your country rules Installation Guide... -
Page 18: Plates Fixation
URBAN WB DC Plates fixation Install the plates on the wall considering the distances and the wall holes template shown on the image below: Measures in mm Front view y distance shall be chosen according to your country rules Installation Guide... -
Page 19: Positioning
URBAN WB DC Positioning Place the Charge Point on the previously installed wall plates. Installation Guide... -
Page 20: Opening
URBAN WB DC Opening Introduce provided URBAN WB DC security key in the lock located at the top part of the device and the electric cabinet key at the bottom lock of the device. Then, the device is unlocked and ready to be opened. Pull outward the Tamper switch to operate the Charge Point. -
Page 21: E Device Fixation
URBAN WB DC Device fixation Once the charging point is opened, tighten the provided fixation screw in the lower wall plate in order to secure the device to the wall and make sure all components remain as by default before proceeding. Installation Guide... -
Page 22: Connections
URBAN WB DC Connections Put your electrical connections inside the Charge Point, introducing cables through the rounded lower part, as indicated in the pictures below. Upper Lower Cable entry Cable entry It is highly recommended to install around an extra 20 cm of power supply cables and store it in the Charge Point bottom cap to make maintenance tasks without disconnecting any wiring connections. -
Page 23: Wiring
URBAN WB DC Wiring THREE-PHASE CHARGE POINT Connect to the 400V~. Terminal block maximum cross-section: 16mm Type of cable allowed by the terminal block: Aluminium & copper Al/Cu Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened at 4...5 Nm Installation Guide... -
Page 24: Verification
URBAN WB DC Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. Pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. -
Page 25: How To Use And Configure Urban Wb Dc Satellite
In order to use and configure the Charging Station there is an User Manual: - Master-Satellite User Manual To get it send a mail to: sat@circutor.com URBAN WB DC Basic Serie it is not configurable. In order to see how to use it, see chapter “6.- How to use URBAN WB DC Basic”... -
Page 26: How To Use Urban Wb Dc Basic
URBAN WB DC URBAN WB DC Basic series it is not configurable. As detailed in previous chapters, the device has a LED beacon light and two illuminated buttons, the START and STOP ones. The LED beacon light is located just above the START and STOP buttons. Standby When LED beacon is green and the START button is also green, it means that the device is available and ready to start a charge transaction (A status, according to IEC 61851). -
Page 27: Charged
URBAN WB DC How to use URBAN WB DC Basic Charged When the EV is fully charged, it turns to Standby step, in which both LED beacon and START button are green. Stop charging While the device is in charge status or is completely charged, the user is available to finish the charge pressing the STOP button. - Page 28 URBAN WB DC MODELS SPECIFICATIONS Models URBAN WB DC SATELLITE URBAN WB DC BASIC Maximum AC input current Required power supply capacity 27 kVA Maximum output power 25 kW Output voltage range 150-920 Vdc Maximum output current 70 A Number of connectors Connector type CCS 2 Master communication...
-
Page 29: Technical Data
URBAN WB DC Technical Data ENVIRONMENTAL CONDITIONS Operating temperature -5ºC ... +45ºC Storage temperature -40ºC ... +60ºC Operating humidity Up to 95% MECHANICAL DATA Enclosure rating IP54 & IK10 Enclosure door lock Security Key lock Enclosure material Aluminium & ABS Enclosure access Frontal door Environment... - Page 30 URBAN WB DC Installation Guide...
-
Page 31: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 32 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
