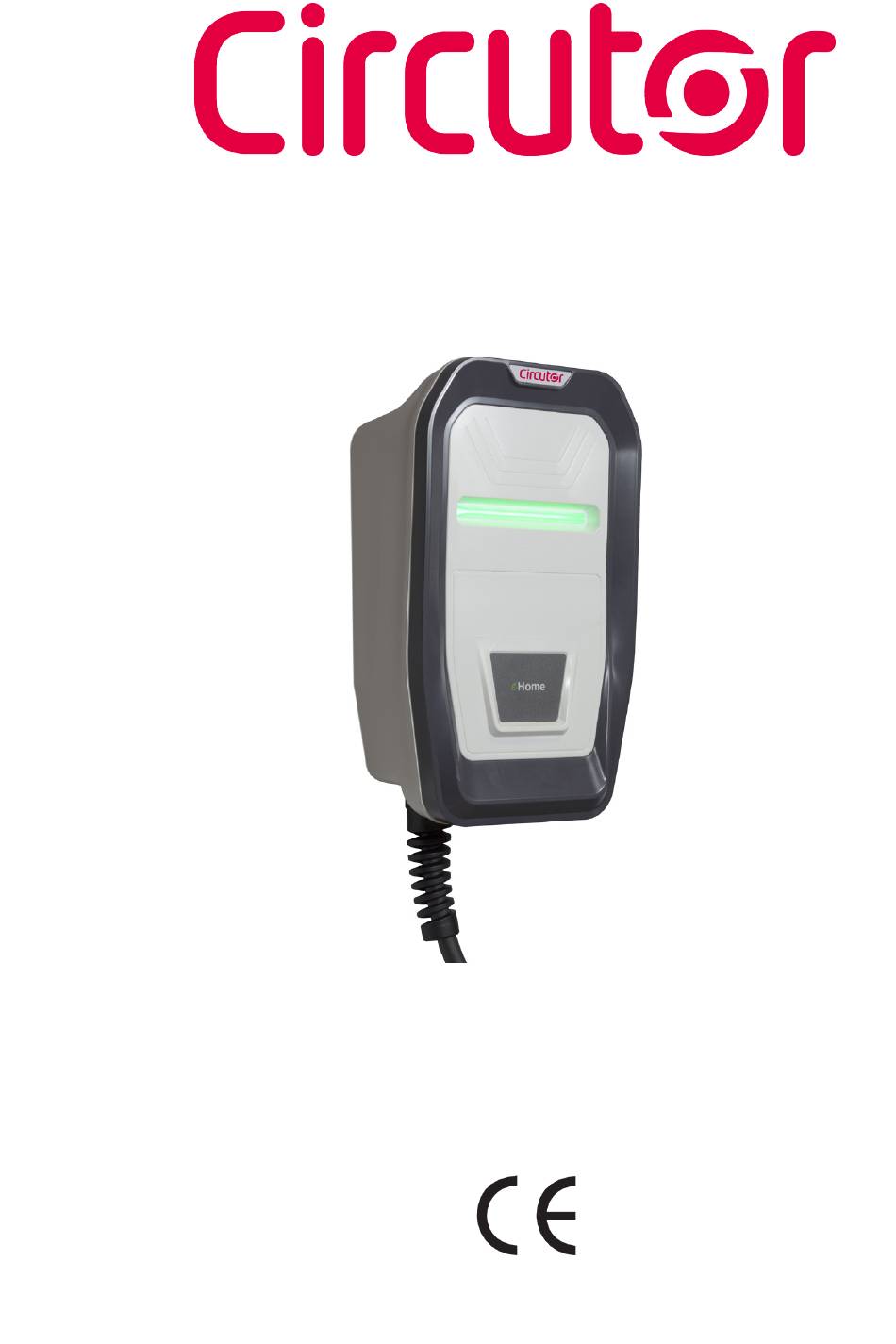

- Page 1 Series INSTALLATION GUIDE (M094A01-03-20A)
- Page 2 eHome Installation Guide...
-
Page 3: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifica- tions set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifications and the most updated manuals. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2020 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
eHome Here’s your guide to install eHome Disclaimer ..............................3 Revision log.............................. 3 Here's your guide to install eHome ....................4 1.- So, hello! ............................6 2.- Before the installation........................8 3.- Overview............................10 4.- Dimensions............................12 5.- Installation............................14 A.- Space requirements........................15 B.- Positioning............................16 C.- Fixing............................ - Page 6 eHome Installation Guide...
-
Page 7: So, Hello
eHome So, hello! This manual contains all the necessary information for the safe use of the Wallbox eHome Electric Vehicle (EV) Charge Point. This document has different sections such as step-by-step installation procedure and technical data THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK Take precautions to make the electrical connection inside the unit. - Page 8 (broken plugs, caps that other than electric vehicle charging don’t close...). modes are expected in IEC 61851. • Use only CIRCUTOR supplied spare • Do not modify this unit. If modified, parts. CIRCUTOR will reject all responsibility and the warranty will be void.
-
Page 9: Before The Installation

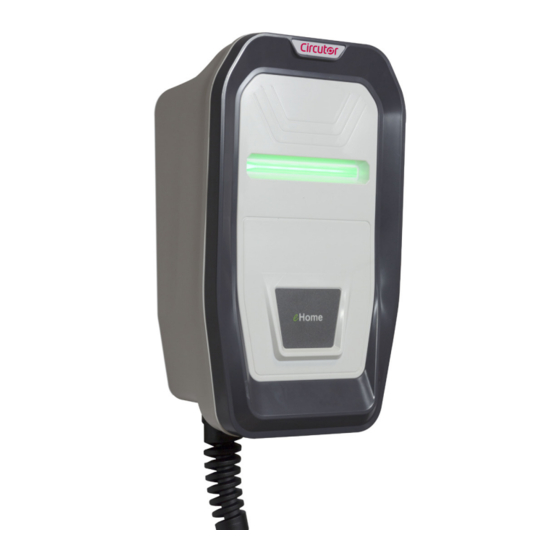

eHome Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point. - Page 10 eHome S H O R T D E S C R I P T I O N The Wallbox eHOME Charging Point is specially designed to be easily installed both in outdoor and indoor private car parks, in order to charge all the EV models of the market in MODE 3 (according to European standard IEC 61851-1), by just connecting either its tethered cable with a Type 1 or Type 2 connector or connecting the EV cable into the charger socket Type 2.
-
Page 11: Overview
Overview 1: CIRCUTOR Logo CIRCUTOR Logo 2: Status RGB LED bar 5: Frame 3:Front cover 6: Socket Plugs may vary depending on the model Installation Guide... - Page 12 eHome Measures in mm Installation Guide...
-
Page 13: Dimensions
eHome Dimensions Measures in mm Installation Guide... - Page 14 eHome Material: • Screws, sealing washers and plastic anchors are not included. • The installation kit has been tested on a concrete wall. For the unit to be securely fixed in such conditions, it is recommended to use: 3 x Inox A2 wall screws: Ø3x45 3 x plastic anchors: 6x40 •...
-
Page 15: Installation
eHome Installation Space requirements When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the recommended minimum distances: MIn. 600- / Max. 1200 Measures in mm Front view Installation Guide... -
Page 16: B Positioning
eHome Positioning Make holes for fastener screws. Tap drill M 6 MIn. 600- / Max. 1200 Measures in mm Front view 1. Mark 3 holes taking into account the picture measurements (also written on the rear face of the box). 2. -
Page 17: C Fixing
eHome Fixing 1. Use a screwdriver to fix the Charge Point on the wall (recommended screw dimensions: 3x45mm) 2. Use only the Charge Point holes indicated in the above picture to fix the Charge Point on the wall. Do not make any other holes on the housing;... -
Page 18: D Electrical Installation
eHome Electrical installation On these series, the Wallbox eHOME doesn’t include electrical protections. To protecting the power line, it is necessary to install a Miniature Circuit Breaker (MCB) and a Residual Current Device (RCD) externally. The Charge Point is set to 16A three-phase / 32A single-phase from factory default settings. -
Page 19: E Power Supply Line Connection
eHome Power Supply Line Connection Perform the 230 VAC Single-phase or 400 VAC Three-phase connections as shown in the picture below. Do not forget to connect the ground cable (PE) to its corresponding terminal. SINGLE-PHASE CHARGE POINT THREE-PHASE Charge Point Connect to the 230V~. -
Page 20: F Closing The Charge Point
eHome Closing the charge point Screw the 6 bolts from the front cover in order to close the Charge Point Be aware of the cables between the cover and the base while closing the Charge Point. Put the frame, from the top to the bottom of the box, ensuring it does click at the six points shown in the picture , then screw de bold on the bottom. -
Page 21: G.- Verification
eHome Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — C A R E F U L W I T H T H E W I R E S Before closing the unit, keep in mind all cables should remain inside. - Page 22 eHome AC INPUT eHome T1C32 / T2C32 / T2S32 1P + N + PE AC Power supply eHome T2S16 TRI / T2C16 TRI 3P + N + PE eHome T1C32 / T2C32 / T2S32 230 V~ ± 10% AC Voltage eHome T2S16 TRI / T2C16 TRI 400 V~ ±...
-
Page 23: Technical Data
eHome Technical Data GENERAL Enclosure rating IP54 / IK10 Enclosure material ABS-PCV0 Operating temperature -5ºC ... +45ºC Operating humidity To 95% RH Non-condensing Net weight 4 Kg OPTIONAL FEATURES Extended operating temperature (Optional Heater) -30ºC…+45ºC Protections may not be included in the charge point, at this point, protections with the same characteristics, shall be placed upstream. - Page 24 eHome Installation Guide...
-
Page 25: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the units. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no unit will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 26 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
