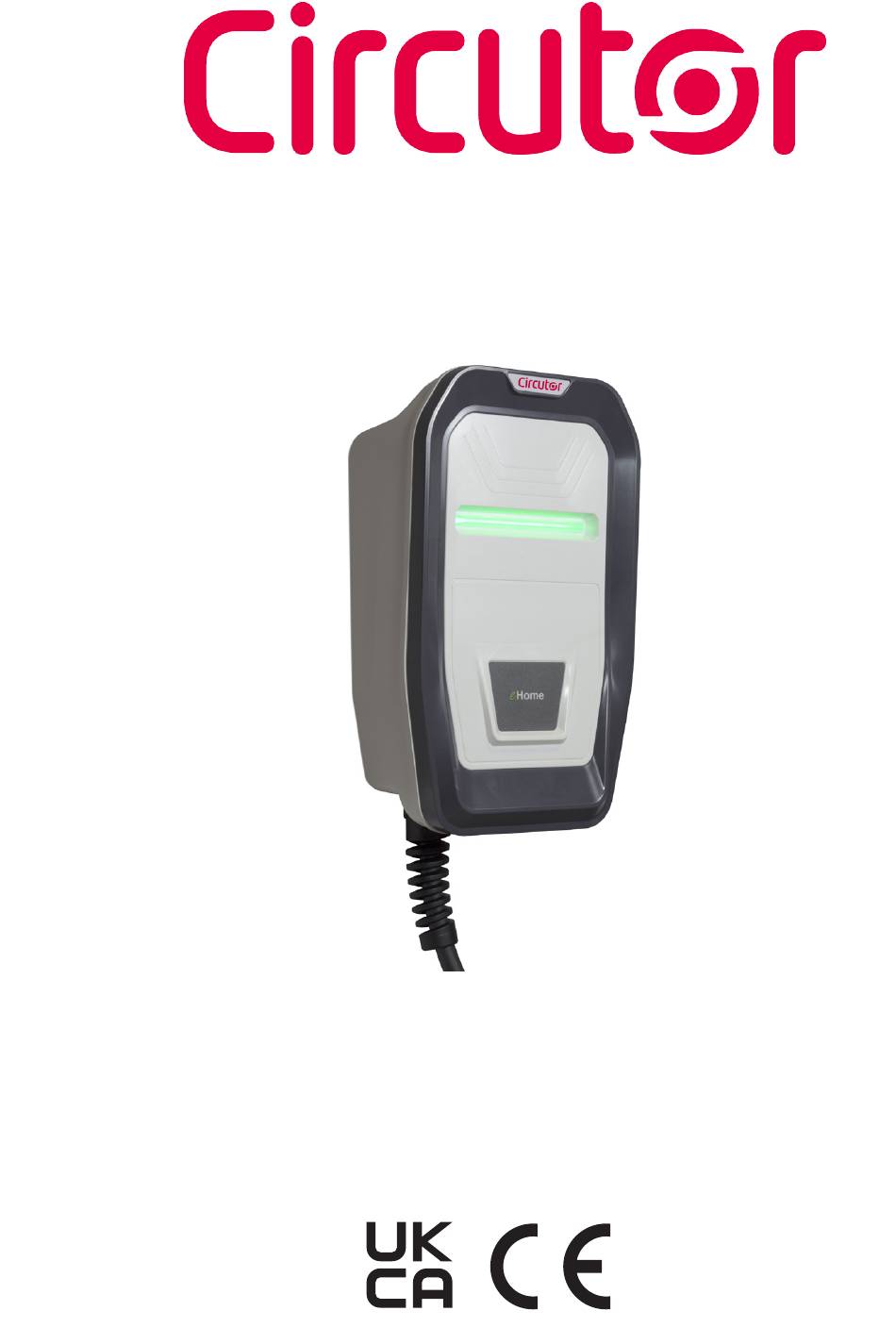

- Page 1 Link INSTALLATION GUIDE (M354A01-03-22C)
- Page 2 Link Installation Guide...
-
Page 3: Disclaimer
CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by CIRCUTOR S.A.U. All rights are reserved. CIRCUTOR S.A.U. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
Here’s your guide to install eHome Link Disclaimer .............................. 3 Revision log ............................3 Here’s your guide to install eHome Link ..................5 1.- So, hello! ............................6 2.- Before the installation ........................8 3.- Overview ............................10 4.- Dimensions ............................ 12 5.- Installation ............................14... - Page 6 Link Installation Guide...
-
Page 7: So, Hello
Link So, hello! This manual provides commissioning information about eHome Link, which has been designed and tested to allow electric vehicle charging according to IEC 61851-1:2017. This document has different sections such as step-by-step installation procedure and technical data. - Page 8 • Do not use any adapter, except those where potential risk of explosions are. approved by the EV manufacturer. Adapter only allowed to eHome Link models with • Do not install the Charge Point where socket-outlet. falling objects may damage the device.
-
Page 9: Before The Installation
Link Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the Charge Point. - Page 10 S H O R T D E S C R I P T I O N eHome Link is specially designed to be easily installed both in outdoor and indoor private car parks, and to be compatible with all the EV models of the market according to European standard IEC 61851-1, by just plugging your car.
-

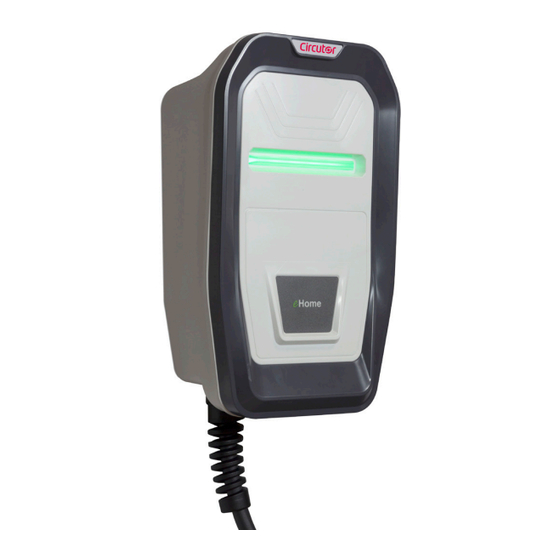

Page 11: Overview
Link Overview CIRCUTOR Logo Cable + Connector. Status LED bar Frame Front cover Socket-outlet Plugs may vary depending on the model Installation Guide... - Page 12 Link Measures in mm Installation Guide...
-
Page 13: Dimensions
Link Dimensions Measures in mm Installation Guide... - Page 14 Link Material: Screws, sealing washers and plastic anchors are not included. The installation kit has been tested on a concrete wall. For the unit to be securely fixed in such conditions, it is recommended to use: 3 x Inox A2 wall screws: Ø3x45...
-
Page 15: Installation
Link Installation Space Requirements When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the recommended minimum distances: Min. 600 / Max. 1200... -
Page 16: B Opening The Unit
Link Opening the Unit 1.- Remove the screw at the bottom of the box. 2.- Using a screwdriver, put it into the indicated marks, at the bottom of the box, and start removing the frame doing click at the bottom. - Page 17 Link 3.- Grabbing the frame with the hand by the lower part, pull and take it off totally, from the bottom to the top. To make it easier help yourself with the screwdriver while pulling the frame off. 4.- Remove the six screws of the front part by using a screwdriver and take out the front part of the enclosure.
-
Page 18: C Power Supply Line And Data Connection
Link Power Supply line and Data connection There are two possibilities to insert the electric wires: 1) Breaking out the cable insertion opening on the rear of the housing. 2) Using the cable insertion opening at the bottom of the housing. - Page 19 Link Be careful of not damaging any of the internal components when breaking out the rear cable insertion opening. The data cable could be installed using the same pipe used for the power supply. In this case, it is recommended to use FTP Cat5e or S/ FTP Cat 5e.
-
Page 20: D Positioning
Link Positioning Make holes for fastener screws. Tap drill M6 Min. 600 / Max. 1200 Measures in mm Front view 1.- Mark 3 holes taking into account the picture measurements (also written on the rear face of the box). -
Page 21: E Fixing
Link Fixing 1.- Use a screwdriver to fix the Charge Point on the wall (recommended screw dimensions: 3x45mm). 2.- Use only the Charge Point holes indicated in the above picture to fix the Charge Point on the wall. Do not make any other holes on the housing; otherwise water can enter the Charge Point when it rains. -
Page 22: F Electrical Installation
The DC fault current is measured by a dedicated device installed in the eHome Link which ensures the disconnection of the supply in case of DC fault current above 6 mA, for this reason just a Type A RCD upstream the Charge Point is required. -
Page 23: G.- Power Supply Line Connection
Link Power Supply Line connection Perform the 230V ~ single-phase or 400V ~ three-phase connections using the quick connection terminal. Do not forget to connect the ground cable (PE) to its corresponding terminal. Single-Phase Charge Point Three-phase Charge Point •... -
Page 24: H Current Limit Selector
There is an onboard rotative Dip-Switch to configure the limit current of the unit. Depending on the position given to the Dip-Switch, the equipment will limit the current to a certain maximum amperage value. To limit the power of the eHome Link, the following table must be followed: eHome Link eHome Link... -
Page 25: I Unique Cirbeon (Optional)
Link Unique CirBEON (Optional) Unique CirBEON is an optional device that optimises the charge. Analysing the total current consumption in residential facilities, Unique CirBEON manages the remaining current for the Charge Point, avoiding any tripping on the Main Circuit. - Page 26 Link This one shall be connected to the port BOR5, on the PCB of the Charge Point. Signal cable has to be braided and to do two loops into the snap ferrite. And the snap ferrite shall remain inside the Charge Point, as close to the PCB as possible.
- Page 27 Link Unique CirBEON configuration The Unique CirBEON is capable of being installed in any type of home, regardless of the power contracted. Knowing the maximum current value contracted at home (second column of the table below), the position of the DIP-SWITCH will be adjusted:...
-
Page 28: J Remote Control Function
Link Remote Control Function Remote control function is a potential free contact which allows the remote start and stop of a charge process. This remote control function is disabled by default, by means of a jumper (as shown in the picture below). -
Page 29: K Data Modbus Rs485 Connection
Link Data Modbus RS485 Connection Perform the Modbus RS485 data connection in the terminal shown in the picture below. Note: The Modbus RS485 provide the following terminals (A+, B-, S). Do not forget to connect the ground cable (S Terminal) and link to its corresponding earth terminal. -
Page 30: L Closing The Charge Point
Link Closing the Charge Point Screw the 6 bolts from the front cover in order to close the Charge Point Be aware of the cables between the cover and the base while closing the Charge Point. Put the frame, from the top to the bottom of the box, ensuring it does click at the six points shown in the picture, then screw the bold on the bottom. -
Page 31: M Verification
Link Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models ensure that the Neutral Cable is connected correctly. 2 — C A R E F U L W I T H T H E W I R E S Before closing the unit, keep in mind all cables should remain inside. - Page 32 Link AC INPUT eHome Link T1C32 / T2C32 / T2S32 1P + N + PE AC Power supply eHome Link T2S16 TRI / T2C16 TRI 3P + N + PE eHome Link T1C32 / T2C32 / T2S32 230 V~ ± 10%...
-
Page 33: Technical Data
This protection will disconnect the Charge Point if the safety limit of 260 V is exceeded, in this case the Charge Point will reconnect automatically once the voltage is below 247 V. In the event of the company meter trips out, the eHome Link will automatically allow the reconnection of the grid supply. - Page 34 Link eHome Link Address Mode Size Register name Values Description Communications (16bits) AddDevice 1...254 Peripherical Address. (16bits) ConfigComs 0...4 Communication Configuration. Modo 3 charger Cable Vehicle intensity. (16bits) Proximity (InRCC) "A","B","C", (16bits) StateEV E.V State of Charge. "D","E" (16bits) ErrorCode 1 Error code 1.
-
Page 35: Modbus Register Map
Link Modbus register map eHome Link Address Mode Size Register name Values Description Temperature Internal value of eHome (16bits) Temperature -20º...+80º Link temperature. Temperature calibration. (16bits) CalTemperature -20º...+80º Assign room temperature. Activate intensity reduction by (16bits) DeratingFuntion temperature. Value 1: Active intensity reduction. - Page 36 Link Installation Guide...
-
Page 37: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 38 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
