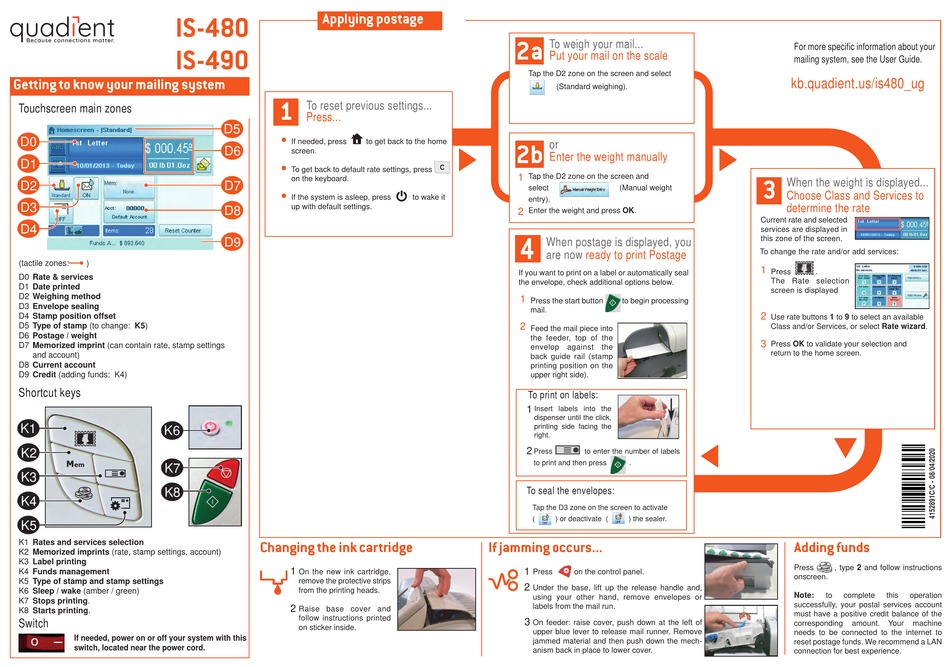

quadient IS-480 Quick Installation Manual page 2

IS-480
IS-490
Getting to know your mailing system
Touchscreen main zones
D0
D1
D2
D3
D4
(tactile zones: )
D0 Rate & services
D1 Date printed
D2 Weighing method
D3 Envelope sealing
D4 Stamp position offset
D5 Type of stamp (to change: K5)
D6 Postage / weight
D7 Memorized imprint (can contain rate, stamp settings
and account)
D8 Current account
D9 Credit (adding funds: K4)
Shortcut keys
K1
K6
K2
K7
K3
K8
K4
K5
K1 Rates and services selection
K2 Memorized imprints (rate, stamp settings, account)
K3 Label printing
K4 Funds management
K5 Type of stamp and stamp settings
K6 Sleep / wake (amber / green)
K7 Stops printing.
K8 Starts printing.
Switch
If needed, power on or off your system with this
switch, located near the power cord.
Applying postage
1
To reset previous settings...
Press...
D5

If needed, press to get back to the home
D6
screen.

To get back to default rate settings, press
on the keyboard.
D7

If the system is asleep, press
up with default settings.
D8
D9
Changing the ink cartridge
1
On the new ink cartridge,
remove the protective strips
from the printing heads.
2
Raise base cover and
follow instructions printed
on sticker inside.
2a
To weigh your mail...
Put your mail on the scale
Tap the D2 zone on the screen and select
(Standard weighing).
2b
or
Enter the weight manually
1 Tap the D2 zone on the screen and
select
to wake it
entry).
2 Enter the weight and press OK.
4
When postage is displayed, you
are now ready to print Postage
If you want to print on a label or automatically seal
the envelope, check additional options below.
1
Press the start button
mail.
2
Feed the mail piece into
the feeder, top of the
envelop against the
back guide rail (stamp
printing position on the
upper right side).
To print on labels:
1
Insert labels into the
dispenser until the click,
printing side facing the
right.
2
Press to enter the number of labels
to print and then press
To seal the envelopes:
Tap the D3 zone on the screen to activate
( ) or deactivate (
If jamming occurs...
1
Press on the control panel.
2
Under the base, lift up the release handle and,
using your other hand, remove envelopes or
labels from the mail run.
3
On feeder: raise cover, push down at the left of
upper blue lever to release mail runner. Remove
jammed material and then push down the mech-
anism back in place to lower cover.
For more specific information about your
mailing system, see the User Guide.
kb.quadient.us/is480_ug
3
When the weight is displayed...
(Manual weight
Choose Class and Services to
determine the rate
Current rate and selected
services are displayed in
this zone of the screen.
To change the rate and/or add services:
1
Press
The Rate selection
screen is displayed
to begin processing
2
Use rate buttons 1 to 9 to select an available
Class and/or Services, or select Rate wizard.
3
Press OK to validate your selection and
return to the home screen.
.
) the sealer.
Adding funds
Press
onscreen.
Note:
successfully, your postal services account
must have a positive credit balance of the
corresponding
needs to be connected to the internet to
reset postage funds. We recommend a LAN
connection for best experience.
.
, type 2 and follow instructions
to complete this operation
amount. Your machine
