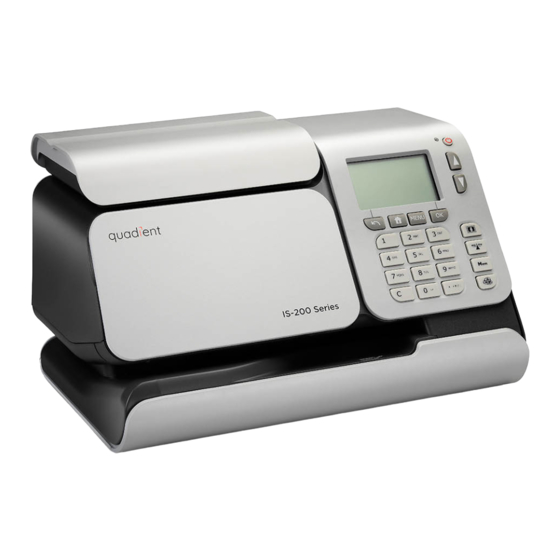

IS-200 Series Base
Product Replacement Guide
Machine components:
Machine Base
N1. Remove the components from your original machine
1
2
Open the latch, remove Ink Cartridge
Open the door to reveal the Ink Cartridge
(e).
If the Cartridge is not visible, pull the
Carriage to the centre or use the menu
options to remove the Cartridge
5
6
Remove the Meter
On the underside of the machine open
the door containing the Meter
(f)
Average Time Required: 15 minutes
Weighing Platform
3
3
(e)
Remove LAN Cable (c), Weigh Platform Cable
(f)
LAN Cable
2
1
4
(b)
and Power Cable
(d)
Power Cable
Ink Cartridge
4
Remove the Weighing Platform
(b)
from the machine
Continue
Meter
