Chapter 4 Installation
4.2.4 Fitting an SCXY, SCZ or SCXYZ Piezo Stage
This section is applicable only to the MAX200 and MAX201 stages
1) Fit the stage to the microscope as detailed in Section 4.2.2. or Section 4.2.3.
Note. During item (2) the stage can be fitted either face up, or face down, to suit the
reach and range of travel of the microscope focussing system.
2) Fit the piezo stage into place and secure using the four M3 hexagon screws
supplied.
Caution. The SCXY, SCZ and SCXYZ100 stages have different heights, and therefore
require different length fixings to secure them. Always use the fixings supplied with the
stage being fitted. If these are not available, do not use fixings that protrude more than
2.5mm into the moving platform as this could damage the internal mechanism of the
stage.
Damaging the stage in this way could invalidate the warranty.
Mounting bolts for SCXY stage
19

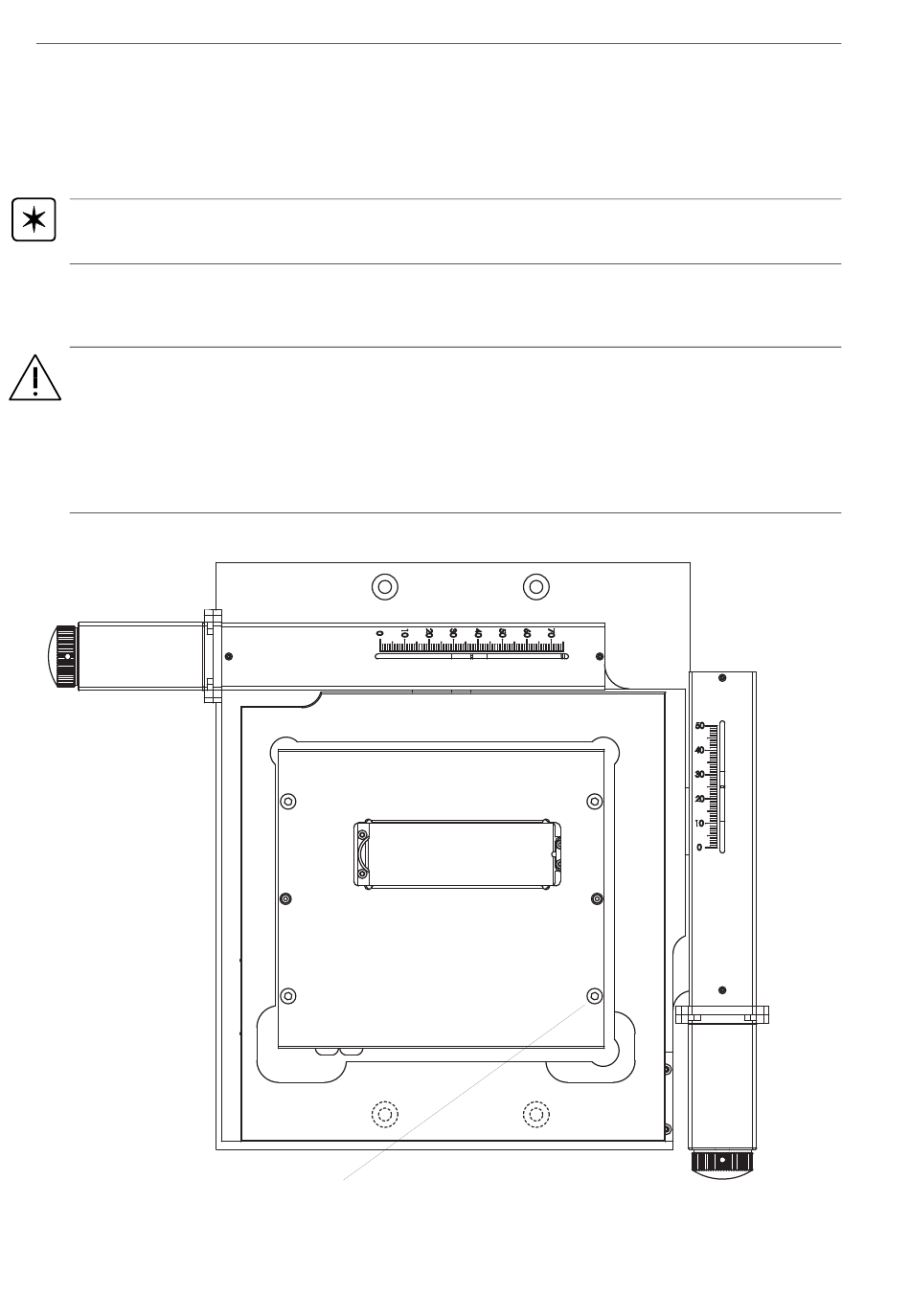

Fig. 4.3 Mounting the SCXY piezo stage.
