Chapter 3 Operation

3.4 Encoder Operation

3.4.1 Selecting Encoder Support

When an encoded stage type has been associated with a motor channel (see Section
3.3.), encoder feedback support (both GUI and programmable interfaces) is enabled
in the corresponding Motor ActiveX Control.
On the main motor graphical panel an 'Encoder' button is displayed at the bottom left
of the panel.
1) Click the 'Encoder' button to display the 'Encoder Control Panel'.
This panel is used to enable/disable encoder position feedback control and to alter
the modes of operation when encoder control is enabled.
9

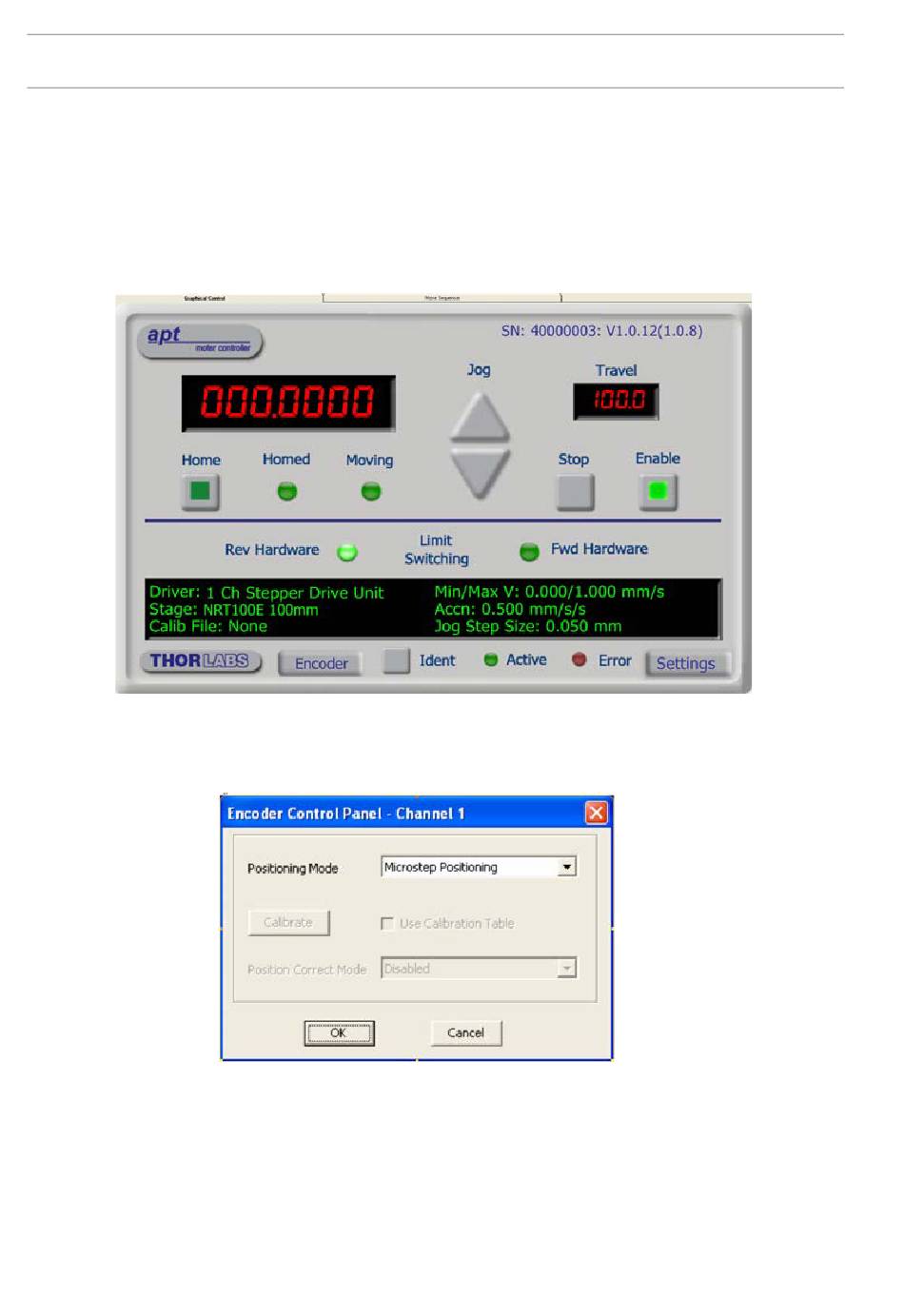

Fig. 3.3 Motor GUI panel with encoder button
