4.2.3 Mounting To A Nikon TE2000 Microscope

Note. Mounting brackets MAX200A1 are required to mount the stage to the working

surface.

1) Remove the four M5 bolts securing the manual XY specimen stage, fitted as

standard to the microscope. Tilt back the lamp support unit as necessary.

2) Remove the manual XY specimin stage.

3) Using the bolts removed at item (1), fit the MAX200A1 mounting brackets to the

microscope. These plates ensure that the objective lens and turret cannot clash

when the stage is moved.

4) Using the four M5 pozi pan bolts provided, fit the MAX200 stage to the MAX200A1

brackets.To access the front mounting holes, turn the motor knob and move the

carriage until the holes are accessible in the base plate.

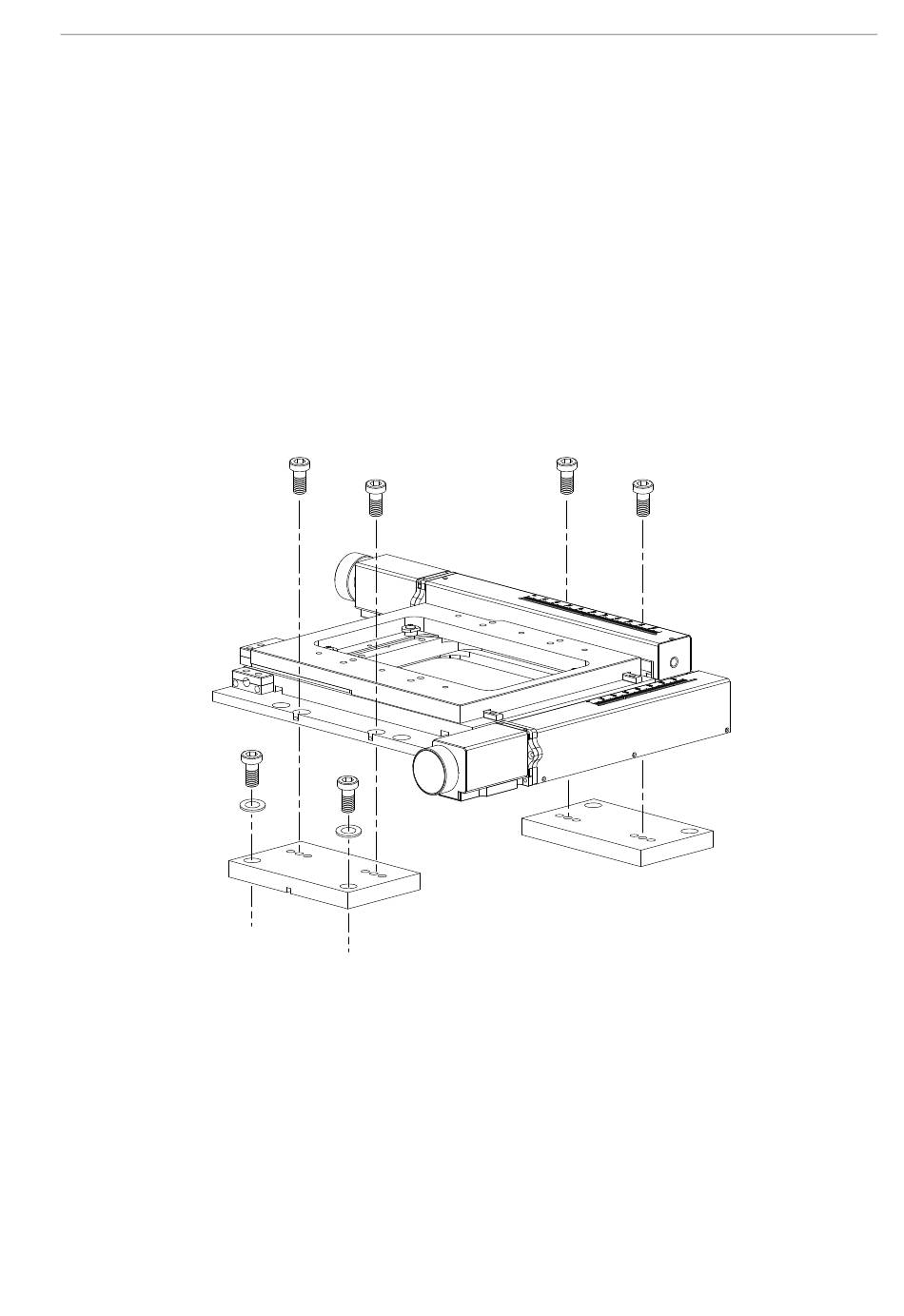

Fig. 4.2 Accessing the stage mounting holes
