Appendix A.5.2 Using FS-GUI

Completing a Diagnostic Capture through the FieldServer allows network connections (such as Ethernet
and Wi-Fi) to be captured. Once the Diagnostic Capture is complete, email it to technical support. The
Diagnostic Capture will accelerate diagnosis of the problem.
•

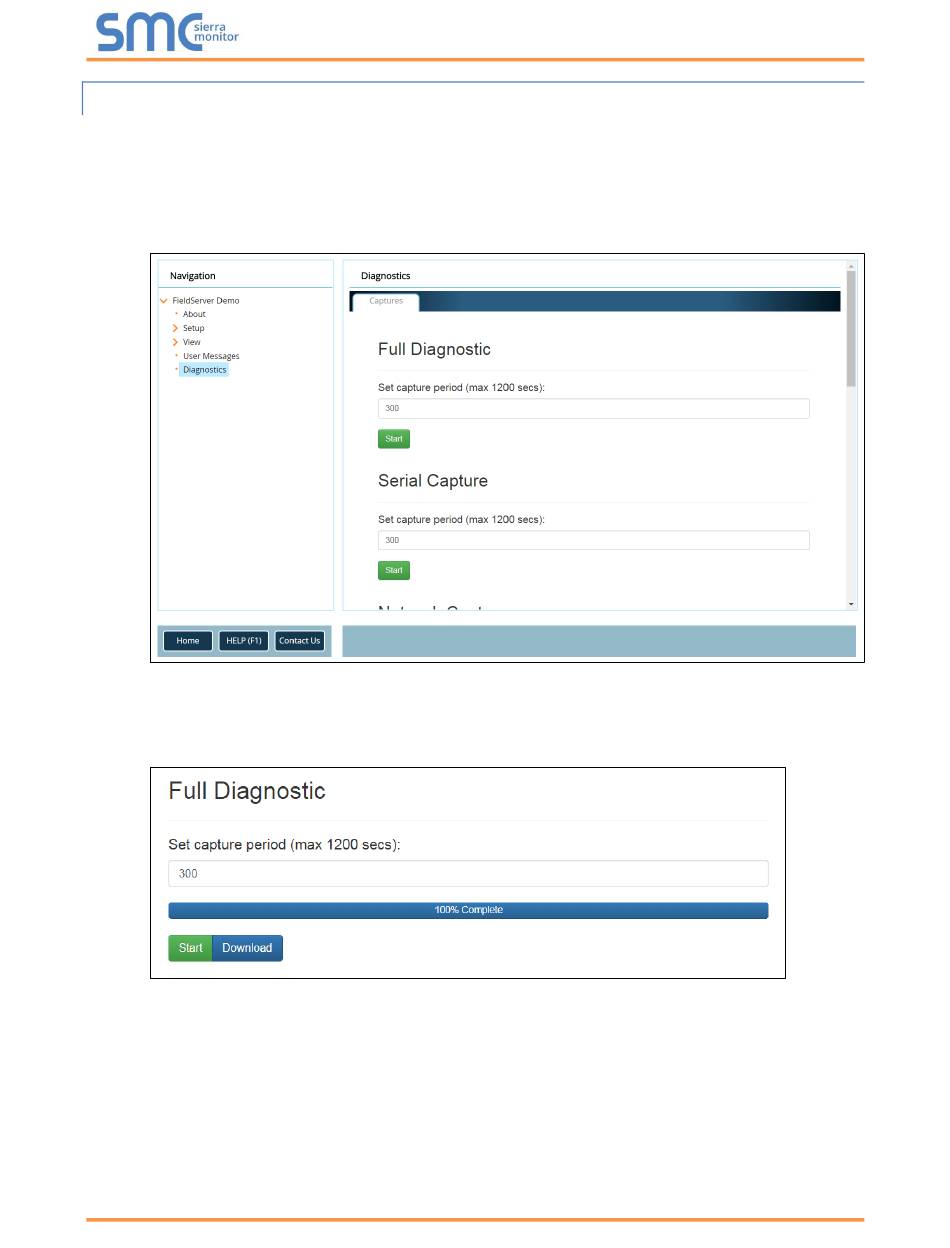

Open the FieldServer FS-GUI page.
•
Click on Diagnostics in the Navigation panel.
•
Go to Full Diagnostic and select the capture period.
•
Click the Start button under the Full Diagnostic heading to start the capture.
o
When the capture period is finished, a Download button will appear next to the Start button
•
Click Download for the capture to be downloaded to the local PC.
•
Email the diagnostic zip file to technical support.
NOTE: Diagnostic captures of BACnet MS/TP communication are output in a ".PCAP" file
extension which is compatible with Wireshark.
