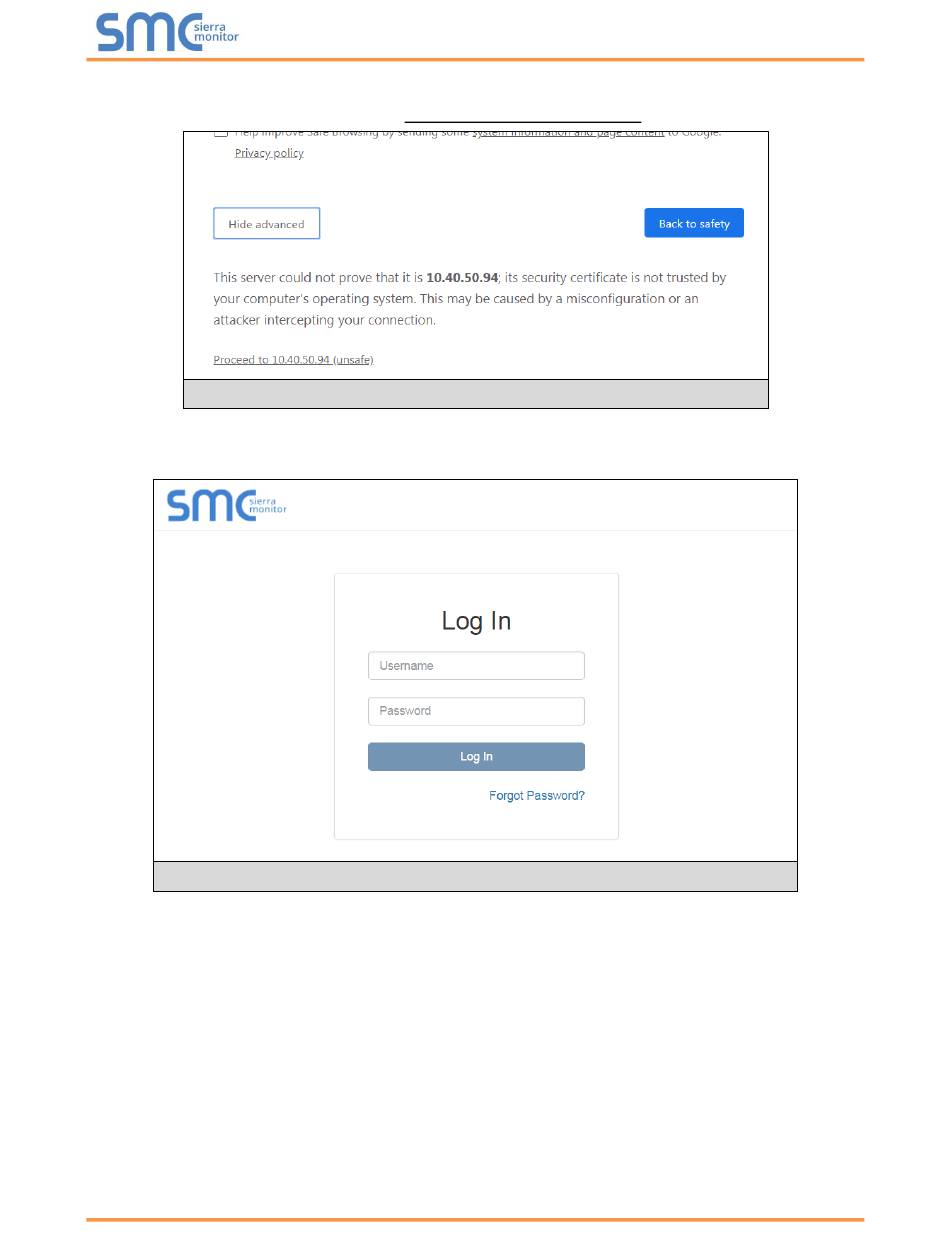

Figure 15: Warning Expanded Text; Figure 16: Fieldserver Login - SMC Networks Lochinvar ProtoNode Startup Manual

•
Additional text will expand below the warning, click the underlined text to go to the IP Address. In
Figure 15 example this text is "Proceed to 10.40.50.94 (unsafe)".
the
•
When the login screen appears, put in the Username (default is "admin") and the Password (found
on the label of the FieldServer).
NOTE: A user has 5 attempts to login then there will be a 10-minute lockout. There is no timeout
on the FieldServer to enter a password.
NOTE: To create individual user logins, go to

Figure 15: Warning Expanded Text

Figure 16: FieldServer Login

Appendix B.9.
Page 17 of 56
Lochinvar ProtoNode Start-up Guide
