- Page 1 Document No. LEC-OM08401 Operation Manual Product Name IP Address Setting Software for EtherNet/IP Applicable Gateway Unit, LEC-GEN1 Model/ Series/ Product Number IP Configuration Software...
-
Page 2: Table Of Contents
4. IP Address Setting for Computer··············································· 6 5. Installation of IP Configuration Software ···································· 7 6. Setting of the IP Address with IP Configuration Software ············· 8 7. DHCP Function of the LEC-GEN1 (Supplementary Explanation) ···· 9 8. Definitions and Terminology (Supplementary Explanation)··········10 - 2 -... -
Page 3: Safety Instructions
IP Configuration Software 1. Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions are categorized into three groups, "Caution", "Warning" and "Danger" depending on the level of hazard and damage, and the degree of emergency. They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC), Japan Industrial Standards (JIS) and other safety regulations... - Page 4 4) Use in an interlock circuit, which requires the provision of double interlock for possible failure by using a mechanical protective function, and periodical checks to confirm proper operation. Furthermore, Check the product regularly in order to confirm normal operation. IP Configuration Software Safety Instructions Caution...
-
Page 5: Product Overview

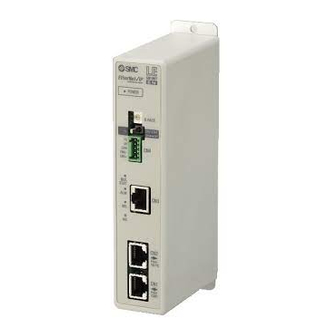

2. Product Overview The LEC-GEN1 Gateway unit (hereinafter referred to as "LEC-GEN1"), is applicable to the EtherNet/IP network system. The Gateway requires an IP address setting for connection with an EtherNet/IP network (hereinafter referred to as "network"). The IP configuration software is a tool for setting the IP address for the LEC-GEN1. -
Page 6: Ip Address Setting For Computer
4. IP Address Setting for Computer Set the IP address of the PC according to step 1 or 2 below. Display Instructions [When a DHCP server is installed on the network] To automatically allocate the IP address using a DHCP server, in the "Internet Protocol Version 4 (TCP/IPv4) Properties"... -
Page 7: Installation Of Ip Configuration Software
5. Installation of IP Configuration Software Follow steps 3 to 6 below to install the IP configuration software. Display Instructions Start the IP configuration software installer (IPconfig setup.exe), and then click "Next". Specify the installation location for the IP configuration software. -
Page 8: Setting Of The Ip Address With Ip Configuration Software
6. Setting of the IP Address with IP Configuration Software Set the IP address of the LEC-GEN1 with the IP configuration software in accordance with steps 7 to 11 below. Display Instructions When the IP configuration software is started after... -
Page 9: Dhcp Function Of The Lec-Gen1 (Supplementary Explanation)
7. DHCP Function of the LEC-GEN1 (Supplementary Explanation) The time required for the LEC-GEN1 to establish communication with the PLC will be different when a DHCP server is installed on the network and the DHCP function is enabled (ON), from when a DHCP server is not installed and the DHCP function is disabled (OFF). -
Page 10: Definitions And Terminology (Supplementary Explanation)
8. Definitions and Terminology (Supplementary Explanation) Term Definition DHCP server DHCP is an abbreviation of Dynamic Host Configuration Protocol". It is a server that automatically allocates information necessary to be registered to use the network, such as an IP address, to individual devices on the network. - Page 11 Revision history No. LEC-OM08401 First edition: October 2014 Note: This manual is subject to change without prior notice. © 2014 SMC Corporation All Rights Reserved - 11 -...
