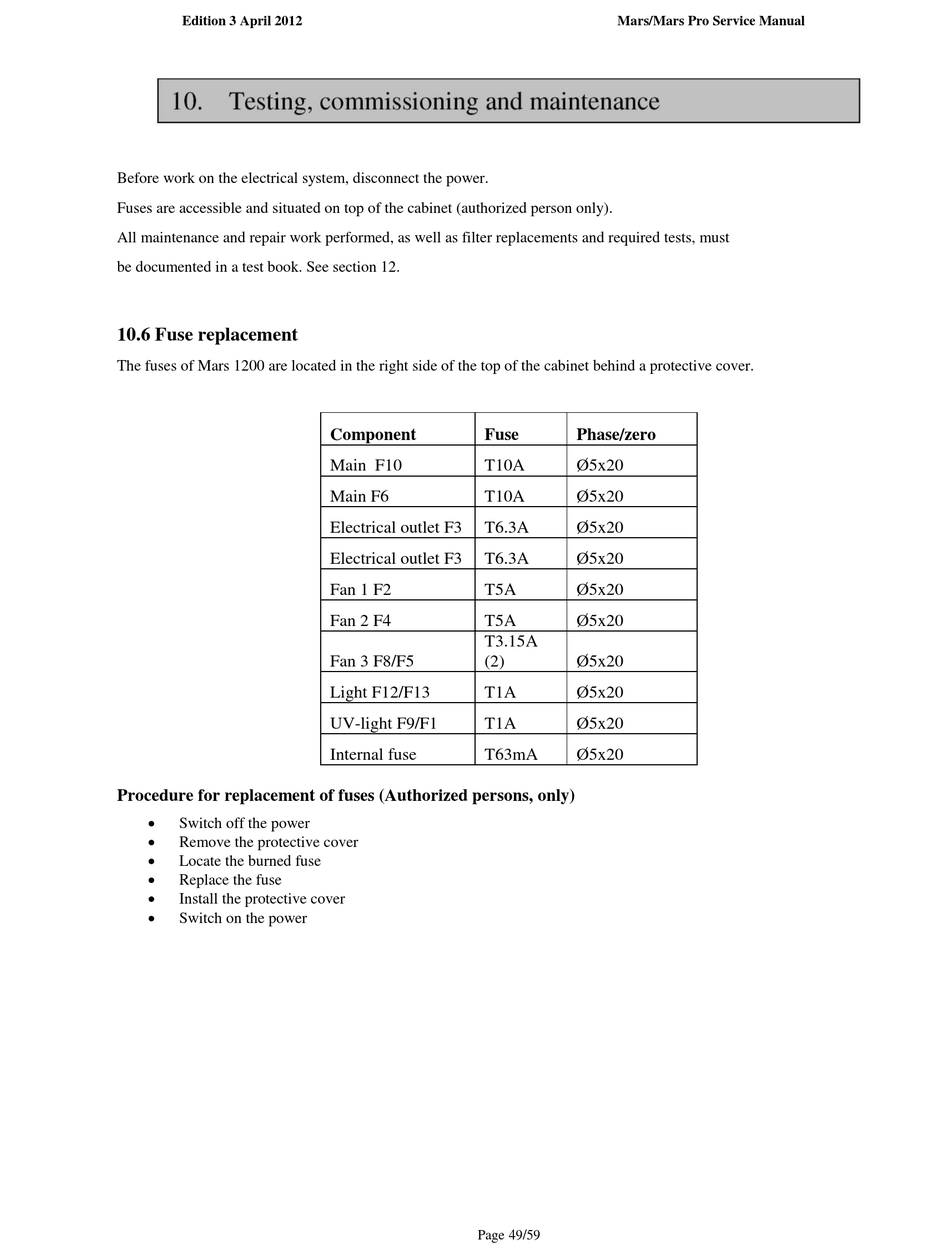

LaboGene Mars Service Manual page 49

Edition 3 April 2012
Before work on the electrical system, disconnect the power.
Fuses are accessible and situated on top of the cabinet (authorized person only).
All maintenance and repair work performed, as well as filter replacements and required tests, must
be documented in a test book. See section 12.
10.6 Fuse replacement
The fuses of Mars 1200 are located in the right side of the top of the cabinet behind a protective cover.
Procedure for replacement of fuses (Authorized persons, only)

Switch off the power

Remove the protective cover

Locate the burned fuse

Replace the fuse

Install the protective cover

Switch on the power
Component Fuse
Main F10 T10A
Main F6 T10A
Electrical outlet F3 T6.3A
Electrical outlet F3 T6.3A
Fan 1 F2 T5A
Fan 2 F4 T5A
T3.15A
Fan 3 F8/F5 (2)
Light F12/F13 T1A
UV-light F9/F1 T1A
Internal fuse T63mA
Page 49/59
Mars/Mars Pro Service Manual
Phase/zero
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
Ø5x20
