Edition 3 April 2012

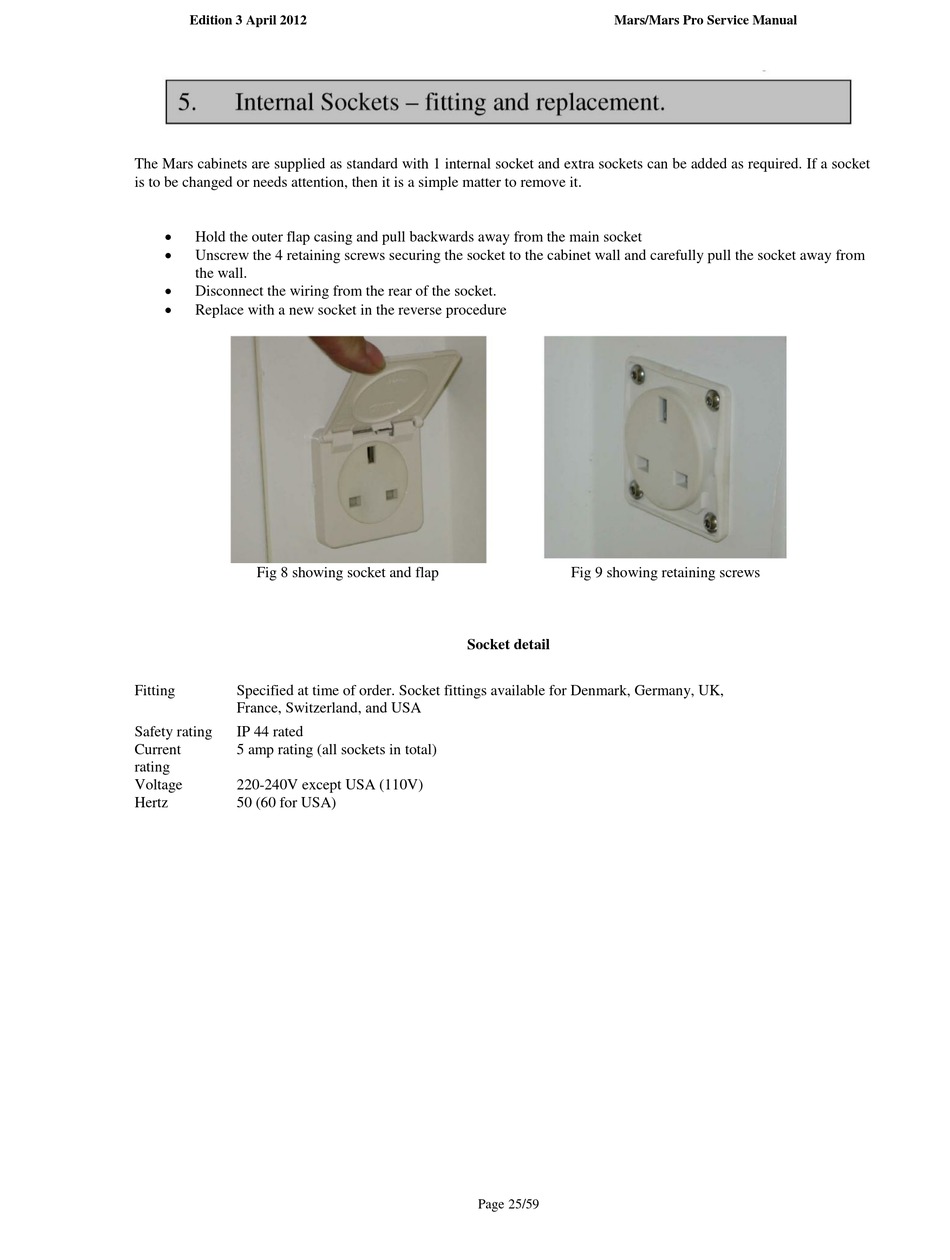

The Mars cabinets are supplied as standard with 1 internal socket and extra sockets can be added as required. If a socket
is to be changed or needs attention, then it is a simple matter to remove it.
Hold the outer flap casing and pull backwards away from the main socket
Unscrew the 4 retaining screws securing the socket to the cabinet wall and carefully pull the socket away from
the wall.
Disconnect the wiring from the rear of the socket.
Replace with a new socket in the reverse procedure
Fig 8 showing socket and flap
Fitting
Specified at time of order. Socket fittings available for Denmark, Germany, UK,
France, Switzerland, and USA
Safety rating
IP 44 rated
Current
5 amp rating (all sockets in total)
rating
Voltage
220-240V except USA (110V)
Hertz
50 (60 for USA)
Mars/Mars Pro Service Manual
Fig 9 showing retaining screws
Socket detail
Page 25/59
