Options Service Menu; Lcd Contrast Service Menu; Lcd Backlight Service Menu - LaboGene Mars Service Manual

Edition 3 April 2012

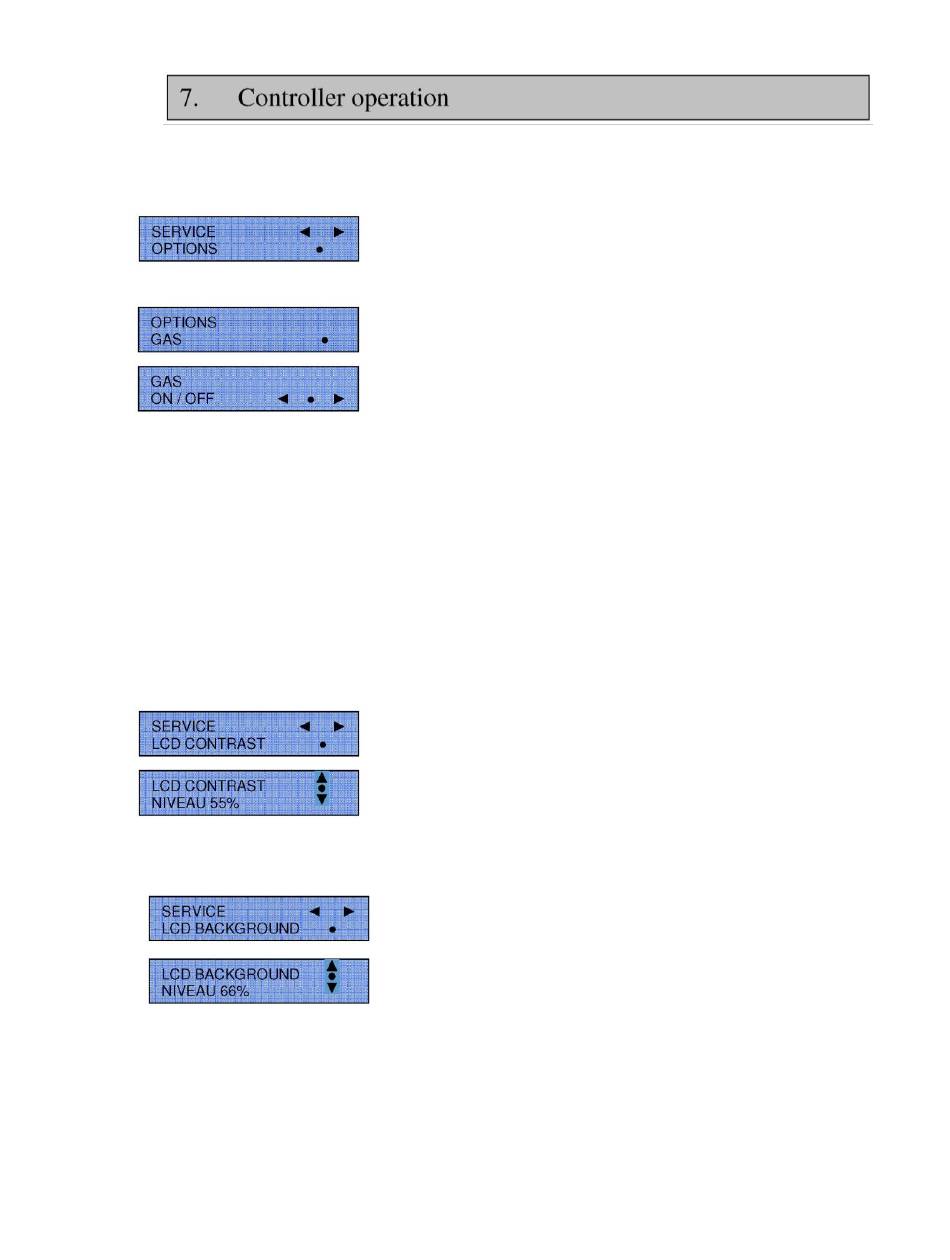

7.3.5.17 OPTIONS, Service sub menu.
This sub menu allows the setting up of fitted accessories such as solenoid valves , UV lights etc.
For example:
The selection list includes the following options:
GAS On / Off
UV LIGHT On / Off
LIGHT ON On / Off
BUZZER ON On / Off
DOOR SWITCH ON On / Off
LOCK KEY On / Off
7.3.5.18 LCD CONTRAST, service sub menu.
This menu allows for the adjustment of the display contrast. It can be adjusted up or down to accommodate different room
conditions.
7.3.5.19 LCD BACKLIGHT, Service sub menu
Press ENTER to access the options list and scroll though each item as displayed.
Each item can then be activated or inactivated by selecting ON or OFF accordingly
using the appropriate buttons.
Press ENTER to accept ON or OFF and to return to Service menu
Put to ON if a solenoid valve is fitted
Put to ON if UV light is fitted
Put to ON.
Put to ON. Only select OFF if no audible alarm wanted
Put to ON for MARS (Off for Fortuna)
Put to ON.
Press ENTER to access the menu.
The figure shows the current adjustment in percentage terms from 0 to 100%. It can
be adjusted up or down using the ▲ or ▼ buttons. Once set, press ENTER to return
to the service menu.
Press ENTER to access the menu.
It can be adjusted up or down using the ▲ or ▼ buttons and can be adjusted from
0 to 100%. Once set, press ENTER to return to the service menu and log out.
Page 39/59
Mars/Mars Pro Service Manual
