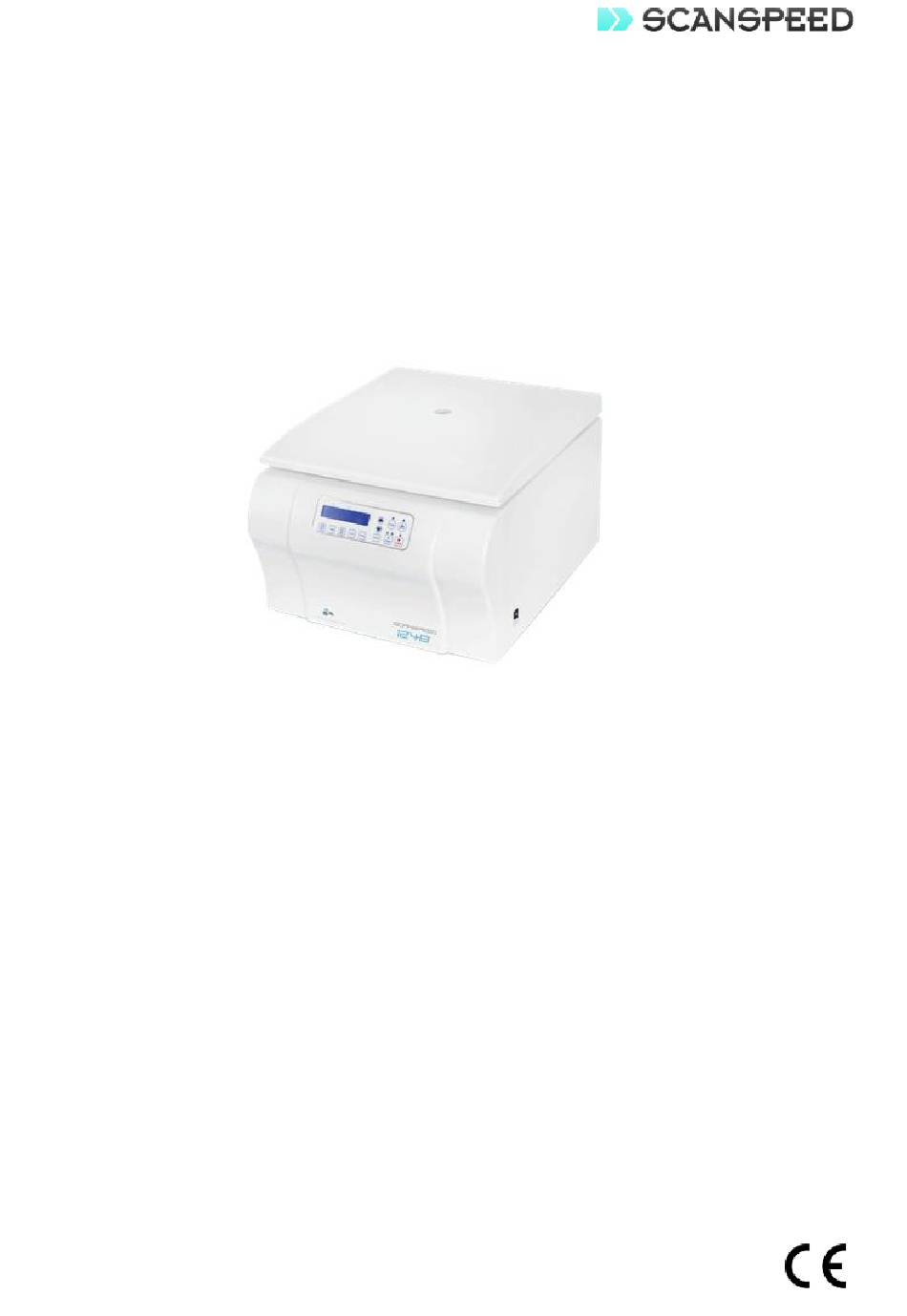

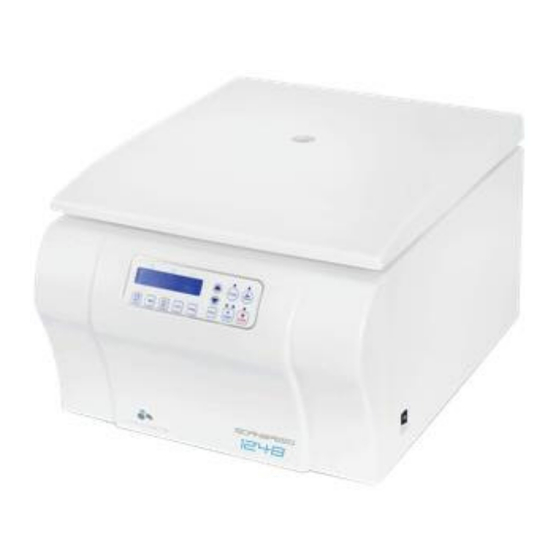

INSTRUCTION MANUAL
MULTI-PURPOSE, HIGH SPEED CENTRIFUGE
ScanSpeed 1248
Revision
: 01
Date
: 2013.05.07
Cat. No.
: 9.900.900.578

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ScanSpeed 1248 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LaboGene ScanSpeed 1248

  • Page 1 INSTRUCTION MANUAL MULTI-PURPOSE, HIGH SPEED CENTRIFUGE ScanSpeed 1248 Revision : 01 Date : 2013.05.07 Cat. No. : 9.900.900.578...
  • Page 2 LaboGene ApS Industrivej 6-8 Vassingerød DK-3540 Lynge Denmark Phone No. +45 39 40 25 66 Fax No. +45 39 95 25 66 Mail info@labogene.com www.labogene.com Internet Cat. No. 9.900.900.758 07052013RS01 Page 2 of 20 CopyRight © 2013...
  • Page 3 Cat. No. 9.900.900.758 07052013RS01 Page 3 of 20 CopyRight © 2013...
  • Page 4 Cat. No. 9.900.900.758 07052013RS01 Page 4 of 20 CopyRight © 2013...
  • Page 5: Table Of Contents

    CONTENTS Meanings of Symbols & Safety Precautions ................... 6 1-1. Meanings of Symbols ..........................6 1-2. Safety Precautions ..........................7 Product Description & Technical Specifications..................8 2-1. Product Description ..........................8 2-2. Technical Specifications ........................9 Installation ............................10 3-1. Power On/Off and Door Release ......................
  • Page 6: Meanings Of Symbols & Safety Precautions

    Meanings of Symbols & Safety Precautions 1-1. Meanings of Symbols 1-1-1. Symbols on the device Symbol Meaning Symbol Meaning Attention and warning for Attention and warning. electric shock. Attention and warning for Attention and warning for door opening rotor coupling. closing.
  • Page 7: Safety Precautions

    +5°C ~ +35 °C, Relative humidity: ≤ 85%) Before connecting the power, check the rated voltage. Should not use unapproved rotors and accessories. Only use rotors from LaboGene, ApS with appropriate centrifugal tubes and suitable adaptors to embrace  sample containers tightly enough inside rotors.
  • Page 8: Product Description & Technical Specifications

    Do not place dangerous materials within 30 cm distance around the instrument, and that is also  recommended by IEC 61010-2-020.  Use the emergency door open function only when the door button on the control panel is dumb under the condition of complete stop of rotor running.
  • Page 9: Technical Specifications

    2-2. Technical Specifications Fixed angle 12,000 rpm / 115,520 xg Max. RPM/RCF Swing out 5,000 rpm / 5,394 xg Fixed angle 6 x 85 ml Max. capacity Swing out 4 x 250 ml/250 ml conical Time control Pulse < timed 100 min or continuous RPM/RCF conversion Noise level (dB) ≤60...
  • Page 10: Power On/Off And Door Release

    3-1. Power On/Off and Door Release Action 3-1-1. Power On/Off After connecting the AC Power cord at the power socket on the right back of the instrument, turn on the Earth Leakage Breaker Switch (1580 only).  Check the proper power. Turn on the instrument by pressing a switch on the right side of the instrument.
  • Page 11: Rotor Coupling And Disassembling

    Action Before coupling a rotor, clean the motor shaft and chamber with soft dry towel. 3-2-1. Swing-Out Rotor Mount a proper rotor into the motor shaft. Grasp the rotor with one hand, and place Rotor Locking Tool at the centre hole of the rotor.
  • Page 12: Positioning Of Sample Tubes

     If there is a water drop or dirt in the rotor hole or inner adaptor, remove it with soft dry cloth. Tubes should be placed in the rotor with same amount of samples at symmetrical positions.  Only use appropriate centrifugal tubes and do not exceed the speed beyond the tube’s max. g-force. ...
  • Page 13: Operation

    Operation 4-1. Key Functions of Control Panel □ RPM/RCF For automatic conversion of RPM/RCF and to set the speed □ TIME Use to set time, available range up to 99 min. 59 sec. (00:00: continuous) □ Temp Use to set temperature (-20°C ~ 40°C) □...
  • Page 14: Setting Rpm/Rcf

    4-2. Setting RPM/RCF Action 4-2-1. Setting RPM ▶ Speed setting unit: 10 rpm or 100 rpm Touch the [RPM/RCF] button once.  RPM MODE is generated by pressing a [RPM/RCF] button once.  RPM LED is flickering on the display window. Touch the [▲▼] buttons to change input value.
  • Page 15: Setting Time

    4-3. Setting Time ▶ Speed setting unit: 1min. or 10 min./ 1 sec. or 10 sec. Action  Time is down-counted after starting centrifugation. Touch the [TIME] button once.  ‘MIN’ on LED is flickering. ▲▼ Touch the [ ] buttons to change input value. ▲▼...
  • Page 16: Program Saving & Recalling

    4-5. Program Saving & Recalling Action 4-5-1. Saving Set parameters. (Refer to 4-2 ~ 4-4 ) Touch the [PROG] button longer than 3 seconds.  Check the message of “PROGRAM SAVE: ##” on the display window. Touch the [▲▼] buttons to change input Program number. If you do not touch the [▲▼] button for 5 seconds, the ...
  • Page 17: Pulse

    4-6. Pulse ▶ It is for quick and short spin down. Action If you touch [Pulse] button and release at the point you want to stop, the centrifuge decelerates immediately 4-7. Start/Stop Action 4-7-1. Start After setting RPM/RCF, Time and Temp., touch [Start] button. ...
  • Page 18: Fuse Replacement

    4-9. Fuse Replacement (Only for 1248) When the power is not turned on, please check the connection of power consent / power switch. Replace the fuse as following instruction, if the power is still not turned on. Action Separate the AC Power Cord at the back of the instrument and push the flat-head screwdriver for bring out the fuse case.
  • Page 19: Trouble Shooting

    Trouble Shooting 6-1. Check List Symptom Check List Connect the AC Power cord and make sure that the line is completely connected Power failure between the instrument and power outlet. Check the power switch is turned on. (Please refer to 3-1. Power On/Off and Door Release) If the door is not closed completely, the instrument can’t run.
  • Page 20: Error Code

     Check the existence of the rotor. If the rotor is absent, mount a rotor Error 9 Sensor  If the error code shows continuously, please call LaboGene, Aps. Field Service Engineer. * Any wire disconnection or tuning of the instrument must be performed only by a service engineer who is authorized by LaboGene, ApS.
