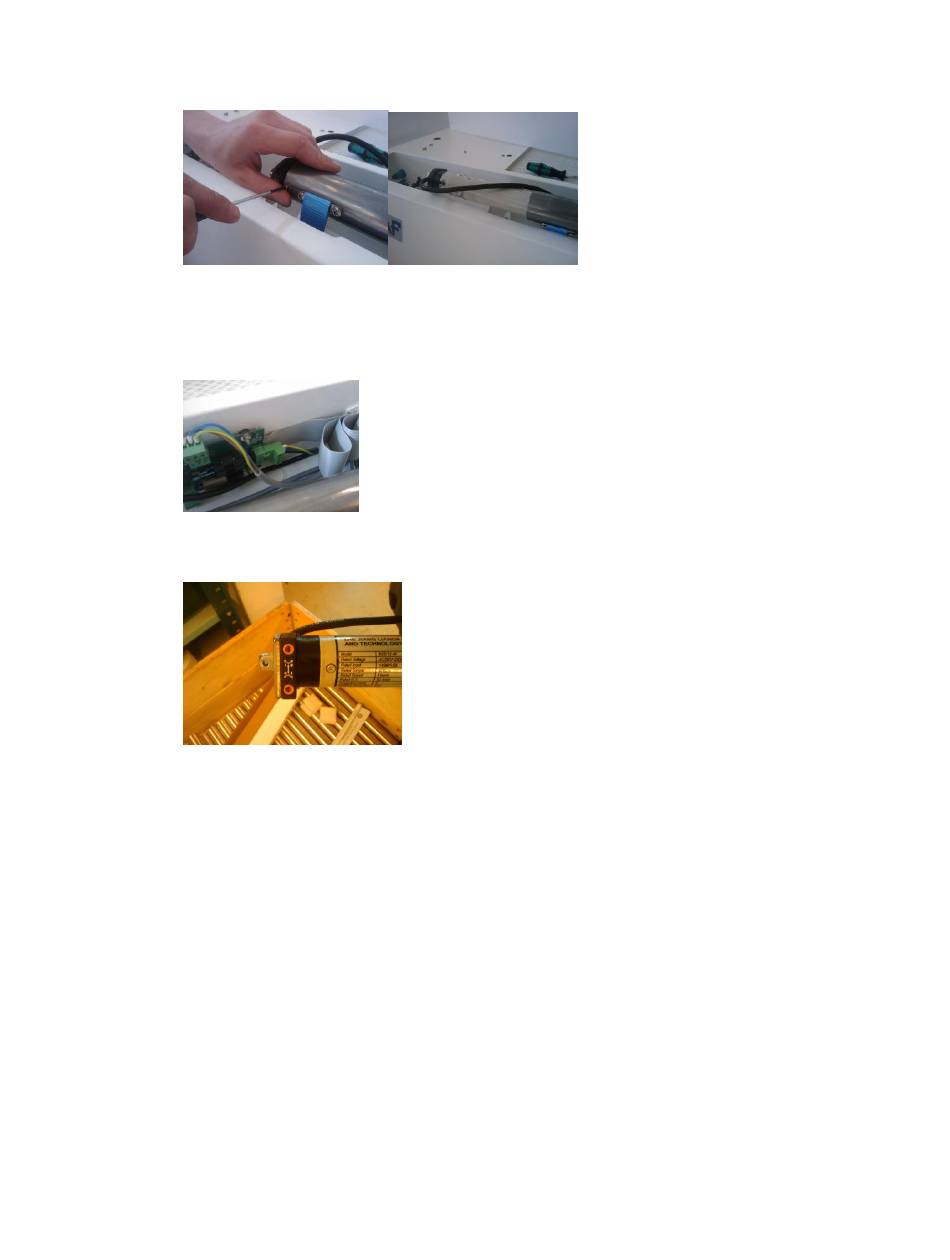

5: Undo small screw holding inner motor in place and slide out motor
6: Pull out plug connecting motor to window PCB, take new motor and reconnect wires as before, place new motor back
into casing and insert locating screw ( a new hole may have to be drilled for the screw, ensure that it is located opposite
where the wires enter the motor)
7: Reassemble and then reposition window using adjustment screws located at the end of the motor, the top one alters the
position of the window at its highest position and the bottom one alters the window at its lowest position
8: Replace top cover
