Mars GS, Mars Pro GS
900, 1200, 1500, 1800
Class 2- Biohazard Safety Cabinet
or Cytotoxic Cabinet with
automatic control system
MICROPROCESSOR BASED
USER MANUAL
Code No. 9.900.900.710
U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc
Page 1 af 34
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LaboGene SCANLAF Mars GS Series
Summary of Contents for LaboGene SCANLAF Mars GS Series

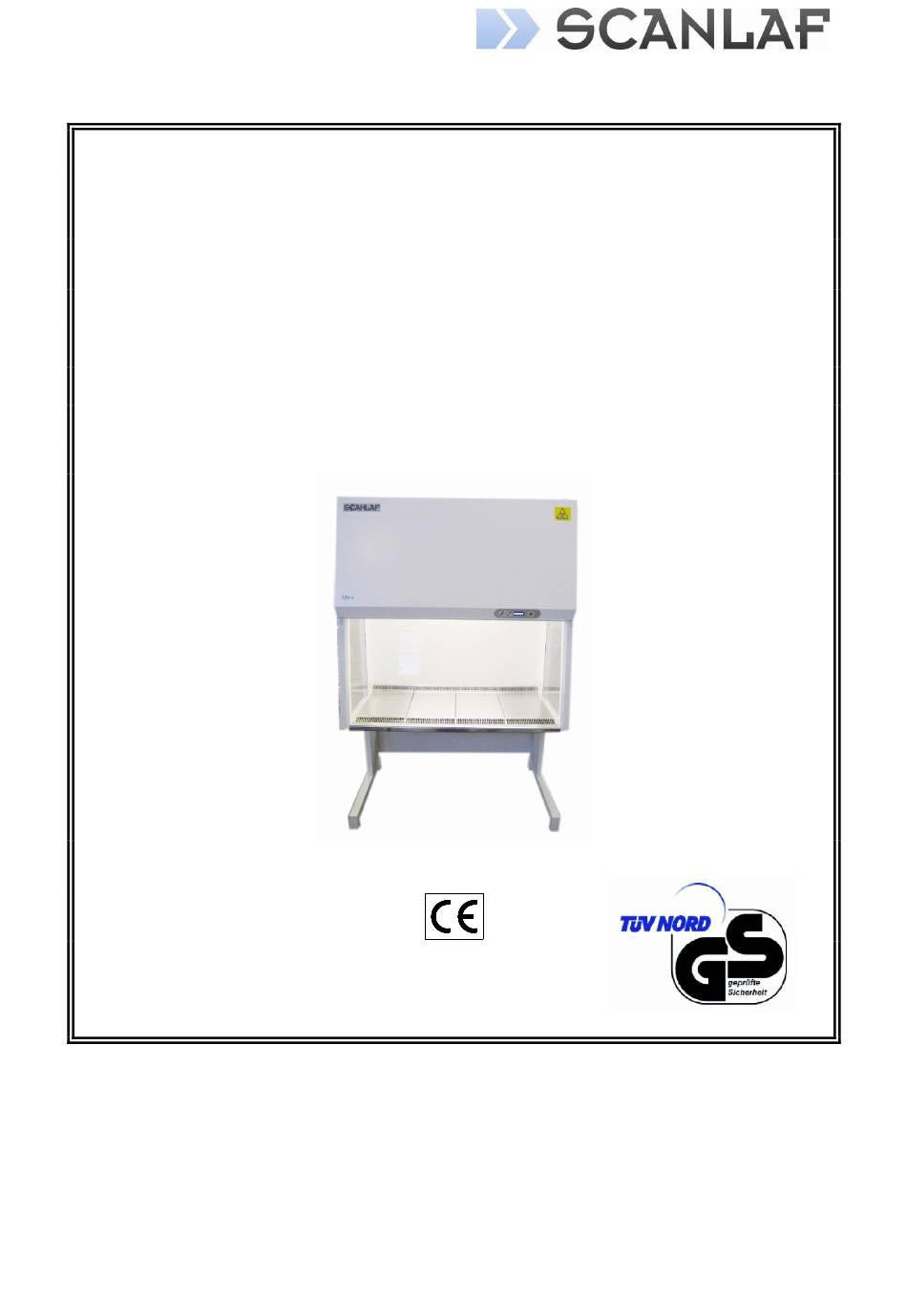

- Page 1 Mars GS, Mars Pro GS 900, 1200, 1500, 1800 Class 2- Biohazard Safety Cabinet or Cytotoxic Cabinet with automatic control system MICROPROCESSOR BASED USER MANUAL Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 1 af 34...
- Page 2 LaboGene ApS Industrivej 6-8 Vassingerød DK-3540 Lynge. Tel: +45 3940 2566; Mobil: +45 3016 0990; Fax: +45 4498 1741 Mail: info@labogene.com; Internet: www.labogene.com , CVR-No.: DK32259154 Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 2 af 34...
-
Page 3: Table Of Contents
12.3 Fuses ....................12.4 UV GERMICIDAL LAMP – Fluorescent lamp ......12.5 Spare parts ..................13. Log-Book ....................14. Statement ....................Declaration of Conformity ............... Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 3 af 34... -
Page 4: General Notes
Please note that any servicing or repairs to this product must be carried out only by personnel with the appropriate qualifications and training. They must have attended a LaboGene service training course on ScanLaf Cabinets and have the appropriate certificate. Failure to show proof of this training will invalidate the product warranty. -
Page 5: Standards And Safety Regulations
IEC 801-2, IEC 801-4, IEC 1010-1 / EN 6101-1, UL 3101-1 EMC Directive 89/336 EEC-93/68/EEC Low Voltage Directive 73/23 EEC-93/68/EEC ENV 50140, ENV 50141 NFX 44-201 Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 5 af 34... -
Page 6: Warranty
The cabinet is not modified or changed without authorization. Only original spare parts or accessories as supplied by LaboGene are used. Use of non original parts will invalidate the warranty. Maintenance and service checks are carried out at specified intervals. -
Page 7: Introduction
Opportunity to select FAN off, reduced, or normal air velocity. Divided table tops for easy cleaning and legs for increased stability. Digital El direct adjustable Fan speeds. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 7 af 34... -
Page 8: Safety Precautions
Always keep your hands out of the work chamber before activating the sliding window. The airspeed monitoring system needs approximately 5 minutes to warm up and stabilise after the fan has been switched on. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 8 af 34... -
Page 9: Description
The low turbulence vertical flow and the exhaust flow are monitored by means of air velocity sensors. Any deviation from safe conditions will be indicated optically and acoustically. Airflow diagram Mars Flow diagram Mars Pro Flow diagram Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 9 af 34... - Page 10 Double HEPA-filter exhaust system as specified by BS 5726-(92). Carbon filter exhaust system takes organic solvents when doing recirculation Please contact our sales department for information regarding other available options. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 10 af 34...
-
Page 11: 12469 / Din 12980 Approvals
Polyestercoated Polyestercoated Polyestercoated /AISI 304 /AISI 304 /AISI 304 /AISI 304 stainless steel stainless steel stainless steel stainless steel GS approved GS approved GS approved Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 11 af 34... - Page 12 Polyestercoated Polyestercoated Polyestercoated Polyestercoated Cabinet material /AISI 304 /AISI 304 /AISI 304 /AISI 304 stainless steel stainless steel stainless steel stainless steel GS approved Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 12 af 34...
-
Page 13: Property Of Materials
In order to prevent damage to the cabinet it must be handled as fragile goods. Storage of the cabinet must be in an environment of maximum 80 % relative humidity and at temperatures between 5 C to 50 Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 13 af 34... -
Page 14: Transport
4. If the window does not move when the UP or DOWN button is pressed, authorized service personnel must be called to correct the fault. 5. Always keep hands and arms away from the working chamber when activating the front window. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 14 af 34... -
Page 15: Connections
If the unit is connected through a protective-ground wall outlet, the connector has the all-pole insulator function. The wall outlet is to be installed out of reach of operators and may only be accessible to authorized personnel. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 15 af 34... -
Page 16: Testing
The alarms for high and low downflow are set to the mean: min. 0.25 m/sec and max. 0.35 m/sec and the matching alarm level settings are to be recorded. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 16 af 34... -
Page 17: Air Velocity In Inlet And Exhaust Opening
Test the laminarity of the downflow and along the side- and back wall. No smoke must come out in the room and only small turbulence must be observed. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 17 af 34... -
Page 18: Test Of Filters
Equipment: KI Discus tester, equipment with an aerosol that challenges the air curtain, established by the down- and inflow. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 18 af 34... -
Page 19: Work Rules
Necessary appliances for use during work must be placed within easy reach. Secure the appropriate protection of the operator as well as the product (e.g. clothes, gloves, etc.). Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 19 af 34... -
Page 20: While Working
Devices developing strong heat, e.g., burners which can disrupt airflows. If burners cannot be avoided, use safety burners. Operate heat sources only with the cabinet fan activated. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 20 af 34... -
Page 21: After Work
Clean the work chamber, remove fluids, if any, from the trough and dry it. Disinfect if required. Leave the cabinet fan in operation for about another 10 minutes. Close the front window to its lowest position. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 21 af 34... -
Page 22: Control Panel
UV –light should be activated for. D. By pressing 8 or 9 again the user can choose Auto start – auto stop. Here it is possible to select Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 22 af 34... -
Page 23: Programming
The vertical air velocity inside the work area is outside the limits. The air volume exhausted is below the limits. The fan is running at reduced velocity. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 23 af 34... -
Page 24: Cleaning And Decontamination
Recommended disinfectants are 2% (vol.) gluteraldehyde or 15% (vol.) formaldehyde. Use alcohols on caution because of the risk of fire. DO NOT USE ANY COMPOUNDS CONTAINING HYPOCHLORITE SOLUTIONS, as this will Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 24 af 34... -
Page 25: Weekly
The purpose of this section is to state guidelines regarding decontamination by using formaldehyde. Certification is required in certain countries for decontamination by using formaldehyde. Procedure for decontamination by use of formaldehyde Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 25 af 34... - Page 26 ScanLaf refers to our Formaldehyde Vaporizer catalogue number: 9.001.020.117. Decontamination procedure Formaldehyde evaporation 30 minutes Effect time 8 hours Neutralization 30 minutes Effect time 30 minutes Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 26 af 34...
-
Page 27: Maintenance
The used filters must be placed in special bags for biohazard waste immediately after removal. The special bags should be handled as toxic material and sent for destruction as the normal toxic waste from the lab. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 27 af 34... - Page 28 Now release the anchors of the exhaust filter by following the steps listed below: Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 28 af 34...
-
Page 29: Part List For Filter
Phase/zero Main T-10A Ø5x20 Main T-10A Ø5x20 Electrical outlet T-6.3A Ø5x20 Electrical outlet T-6.3A Ø5x20 Fan 1 T-5A Ø5x20 T-5A Ø5x20 Fan 2 T-5A Ø5x20 Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 29 af 34... -
Page 30: Uv Germicidal Lamp - Fluorescent Lamp
12.4 UV GERMICIDAL LAMP – Fluorescent lamp To open the service panel of the cabinet, set the window in highest position and you can open the service panel. Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 30 af 34... -
Page 31: Spare Parts
Main HEPA filter Mars/Fortuna 1500 9.000.050.004 Main HEPA filter Mars/Fortuna 1800 9.000.050.005 Main circuit board for Mars, Fortuna, Titan PCR 9.000.050.006 Flowsensor 9.000.050.007 Light ballast for Mars/Fortuna 900 1200 Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 31 af 34... - Page 32 9.000.071.001 Laminator for Mars 900 9.000.071.002 Laminator for Mars 1200 9.000.071.003 Laminator for Mars 1500 9.000.071.004 Laminator for Mars 1800 9.000.050.024 Microswitch for Mars window Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 32 af 34...
-
Page 33: Log-Book
Mars-Mars PRO User Manual 13. Log-Book Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 33 af 34... -
Page 34: Statement
Reservations, if any, may be indicated here (e.g., use of gloves, respiratory gear, etc.). Date Name in block letters Signature Code No. 9.900.900.710 U:\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Manualer-WORD\ScanLaf\Mars Mars Pro manual-UK - rev. 06.doc Page 34 af 34... -
Page 35: Declaration Of Conformity
Directive 2006/42/CE Machinery safety Directive 2006/95/EEC, per August 2007 (Electrical equipment designed for use within certain voltage limits) Directive 2004/108/EEC EMC Electromagnetic compatibility Lynge, June 2011 Finn Kokholm Managing Director LaboGene ApS, Industrivej 6-8, Vassingerød, 3540 Lynge, Denmark \\Server1\data\QA\Manualer\Arkiv\Manuals- Labogene-Origio-GKO\Declarations\ScanLaf\word\Declaration-Mars-Mars-PRO-Orion- MSC1-Sirius-rev.-6.docx...
