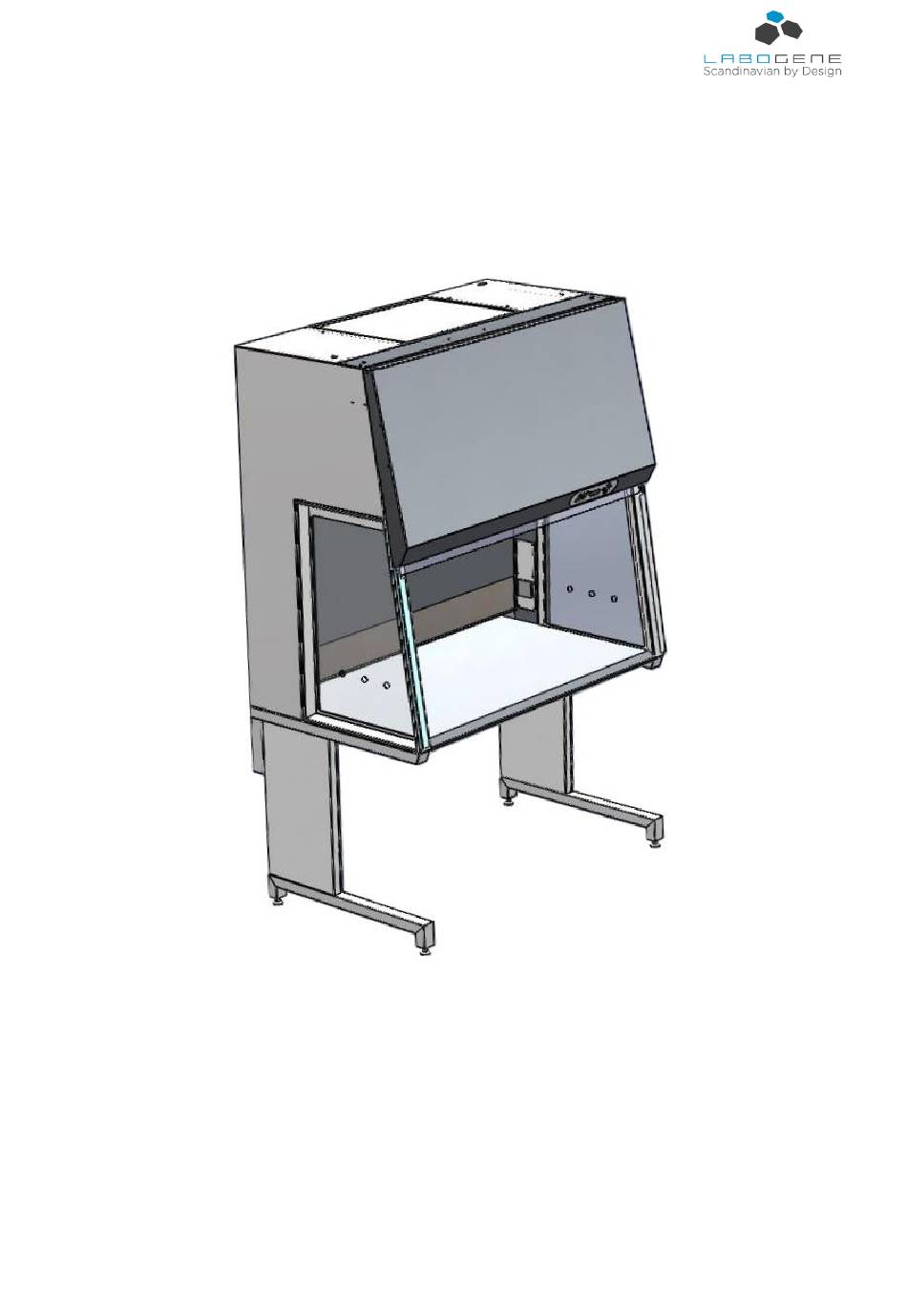

INSTRUCTION MANUAL

Fortuna

900, 1200, 1500 & 1800

Clean Bench

Item No. 700745

12162017QA01

Page 1 of 49

Table of Contents

Need help?

Do you have a question about the Fortuna 900 and is the answer not in the manual?

Questions and answers

Summary of Contents for LaboGene Fortuna 900

Page 2 This document is the original instruction manual in accordance with the current Machinery Directive. This document is the reference for any translation of this instruction manual. In case of doubts or uncertainties the text in the original instruction manual is the valid. LaboGene A/S Bjarkesvej 5 DK-3450 Allerød Phone No.
Page 3: Table Of Contents
Instruction manual for Fortuna Table of contents Introduction to this instruction manual ..........5 Introduction ....................5 Operating conditions and factory settings ..........5 Compliance and basic features ..............5 Standard Fortuna cabinet ................6 Safety precautions ..................6 Description ....................6 Safety systems ..................
Page 4 Instruction manual for Fortuna Table of contents Cleaning/Decontamination of cabinets ..........24 Caring for and cleaning of stainless steel ..........24 Caring for and cleaning of coated surfaces ..........25 Disinfection of working chamber .............. 25 Rinsing of working chamber ..............25 UV Disinfection after cleaning the working chamber .......
Page 5: Introduction To This Instruction Manual
The EN 12469 standard requires that the downflow air velocity is in the interval 0,25 m/s – 0,50 m/s. The LaboGene default downflow setting is 0,32 m/s for 350 mm work opening with a maximum variation of ± 20% on single measuring points, which is in accordance with annex G in EN 12469.
Page 6: Standard Fortuna Cabinet
Instruction manual for Fortuna One-piece table top for big working area. Digital electrical direct adjustable Fan speeds. Standard Fortuna cabinet A standard Fortuna cabinet comprises: The basic unit - four sizes 900, 1200, 1500 and 1800 including: 2 electrical outlets. Side windows (left and right) with three holes.
Page 7: Hepa Filter
Product name Catalogue No. Fortuna 900 downflow filter 9.000.050.001 Fortuna 1200 downflow filter 9.000.050.002 Fortuna 1500 downflow filter 9.000.050.003...
Page 8: Control Panel: Standard Set Up
Instruction manual for Fortuna Control Panel: Standard set up All functions are controlled by an electronic card with microprocessor via the control panel with display shown below. Control Navigation Display buttons buttons ENTER 3.3.1 Control panel Button 1 with green LED light to select the fan ON/OFF at normal velocity. The green light indicates that the fan is running at normal velocity, and that conditions are safe.
Page 9: Display
Instruction manual for Fortuna 3.3.2 Display The display is used for showing the current running conditions or the current alarm condition. The display is further used during setup of the cabinet in either user mode or service mode (password protected). Some examples: In the top right-hand corner of the display, the navigation possibilities are shown.
Page 10: Lighting In Working Chamber
The optional, factory-installed UV light is at the top of the front section of the working chamber. The standard LaboGene control system is prepared for full control of safety and timing for the use of UV light – see section “UV light option” for operation and build in safety measures.
Page 11: Specific Considerations
Instruction manual for Fortuna Specific considerations To ensure that the build in safety features of the cabinets function properly, the location of installation must be selected carefully. The recommended ambient conditions, for safe and proper operation, are listed below. All cabinets are developed and produced for use in clean environments. Cabinets must not be operated outdoors or in environments with extreme air pollution.
Page 12: Sterile Cabinets And Open Flames
Instruction manual for Fortuna Caution Whenever transportation of the cabinet is needed, precautions should be taken to prevent it from overturning due to the high-located mass centre. Caution To prevent damage to the cabinet it must be handled as fragile goods. Storage of the cabinet must be in an environment of maximum 80 % relative humidity and at temperatures between 5 °C to 50 °C.
Page 13: Start-Up Of The Fortuna Cabinets
Instruction manual for Fortuna Start-up of the Fortuna cabinets Caution Correct assembly and installation is essential for proper start-up and operation of the Fortuna cabinets. Preparation Caution The installations site for the unit must be draught-free and should be selected so that frequent passing of people in front of the work opening is avoided.
Page 14: Assemble The Stand For The Fortuna Cabinets
Stand, Fortuna 1200, 90-95cm 9.001.030.012 Stand, Fortuna 1500, 90-95cm 9.001.030.013 Stand, Fortuna 1800, 90-95 cm 9.001.030.014 Electrical stand, Fortuna 900, 75-105 cm 9.001.020.101 Electrical stand, Fortuna 1200, 75-105 cm 9.001.020.102 Electrical stand, Fortuna 1500, 75-105 cm 9.001.020.103 Electrical stand, Fortuna 1800, 75-105 cm 9.001.020.104...
Page 15: Installation Test On The Fortuna Cabinets
The operational safety of the cabinet is guaranteed only, if all safety functions of the cabinet have been tested and approved. Caution LaboGene will not warrant the operational safety if the cabinet is operated without the required installation tests, or if these tests and are not performed by adequately trained personnel.
Page 16: Operating The Fortuna Cabinets
Instruction manual for Fortuna Operating the Fortuna cabinets All functions are controlled via the control panel shown below and by an electronic microprocessor bases control system. Control Navigation Display buttons buttons ENTER The control panel contains 6 buttons with LED for operating the basic functions in the cabinet, a text display, that will show current running conditions and error messages and 5 buttons for navigational purposes.
Page 17 Instruction manual for Fortuna By pressing 8 or 9 the user can move to Display mode – where there is a possibility for constant read out of velocity speeds – both inflow and down – flow – showed in m/s or in counts from 0-255.
Page 19: Programming
Programming Password protected access for trained personnel only! Service mode: This menu is only operated by authorised service people from LaboGene, distributors and trained technical people for safety reasons – who have got the Service access code. In Service mode the following can be adjusted: Airflow speeds downflow and exhaust through 2 air flow sensors.
Page 20: Setting Of Light
Instruction manual for Fortuna In this case a PIR sensor can be mounted – let the cabinet run at full speed for defined time – as long as there are movements. If no movements it will stop after the pre-set time from 60 seconds and up.
Page 21: Working Mode (Operating Mode)
Instruction manual for Fortuna 6.7.2 Working mode (Operating mode) In normal operation mode or working mode no alarms can be active. I this case it is safe to work in the cabinet, product, operator and environment is protected. The green LED in button (1) is on and the blue LED in button (4) is on.
Page 22: Working Safely - Recommendations
Instruction manual for Fortuna Working safely - Recommendations 6.9.1 Before start-up ° ° The cabinets may only be operated at temperatures between 15 C and 35 C, at maximum 80% relative humidity, and at normal air pressure. Approximately 15 minutes before any work in the cabinet, the fan of the unit must be switched on at normal velocity.
Page 23: 6.10.1 After Work
Instruction manual for Fortuna Rapid movements of the operator’s hand, arm, or body both in and in front of the work chamber. Large objects and apparatus. Devices making rapid movements, e.g. agitators, centrifuges. Caution Do not damage the laminator or the main filter in the ceiling of the work chamber by mechanical objects or heat sources, otherwise the microbiological safety is no longer ensured.
Page 24: Disposal Of Cabinets
Instruction manual for Fortuna 6.13 Disposal of cabinets All components except for the HEPA filter can be discarded after having been thoroughly cleaned and decontaminated. The HEPA filter must be discarded in accordance with the applicable international, national and local regulations for chemical or biological waste. Warning As this cabinet can be used for processing and treating infectious substances, it must be decontaminated prior to disposal, in accordance with acceptable standards and...
Page 25: Caring For And Cleaning Of Coated Surfaces
Instruction manual for Fortuna Caution Never use abrasive cleaners, scouring pads or steel wool when caring for stainless steel. If the stainless steel does become stained, corroded or rusted, the iron deposits left on the surface can be removed by neutralizing them with the passivation process. This process uses an acid to neutralize the “free iron”...
Page 26: Cleaning Of External Surfaces
Instruction manual for Fortuna Cleaning of external surfaces Clean the exterior surfaces of the cabinet using a solution of tepid water and commercially available mild dishwashing agent. Then, dry all surfaces well, using a soft, clean cloth. Cleaning the windows For cleaning the front and side windows, use a commercially available window cleaner.
Page 27: Service On Fortuna Cabinets
Instruction manual for Fortuna Service on Fortuna cabinets Service comprises the following activities: General evaluation of the state of the cabinet. Check and if necessary replacement of light tubes (normal and UV if mounted). Leak test of HEPA filter. Check and adjustment of downflow air velocity and downflow alarms. Check of window alarm.
Page 28: Optional Uv Lights
Instruction manual for Fortuna Product name Catalogue No. Light tube Fortuna 900 9.000.040.011 Light tube Fortuna 1200 9.000.040.012 Light tube Fortuna 1500 9.000.040.013 Light tube Fortuna 1800 9.000.040.014 Optional UV lights The UV light is located on the top front wall of the working chamber. Release lamps from the fixtures by rotating it 90º.
Page 29: Replacement Of Laminator
Pull on the two flaps located at the back edge of the laminator and pull downwards. Be careful not to damage the main downflow filter located just above the laminator. Install the replacement laminator and mount the fixing screws again. Product name Catalogue No. Laminator Fortuna 900 9.000.071.001 Laminator Fortuna 1200 9.000.071.002 Laminator Fortuna 1500 9.000.071.003...
Page 30: Specifications
As this cabinet can be used for processing and treating infectious substances, it may become contaminated. Prior to disposal, the entire cabinet with filters must be decontaminated in accordance with acceptable standards and procedures. Specifications Fortuna 900 Unit Part no: 702904 General Specifications...
Page 31 Instruction manual for Fortuna Fortuna 1200 Unit Part no: 702905 General Specifications Certificates None Compliance with ISO 14644, EN 61010-1, EN 61000-6, EN 11201 ≤47 Sound Pressure Level at factory settings and standard configuration dB(A) ≤42 Sound Pressure Level in Eco-Save mode dB(A) Down flow, Air velocity 0,32 ±0,01...
Page 32 Instruction manual for Fortuna Fortuna 1500 Unit Part no: 702906 General Specifications Certificates None Compliance with ISO 14644, EN 61010-1, EN 61000-6, EN 11201 ≤49 Sound Pressure Level at factory settings and standard configuration dB(A) ≤42 Sound Pressure Level in Eco-Save mode dB(A) Down flow, Air velocity 0,32 ±0,01...
Page 33 Instruction manual for Fortuna Fortuna 1800 Unit Part no: 702907 General Specifications Certificates None Compliance with ISO 14644, EN 61010-1, EN 61000-6, EN 11201 ≤52 Sound Pressure Level at factory settings and standard configuration dB(A) ≤42 Sound Pressure Level in Eco-Save mode dB(A) Down flow, Air velocity 0,32 ±0,01...
Page 34: Spare Parts
Light tube for Fortuna 1500 9.000.040.014 Light tube for Fortuna 1800 9.000.050.001 Main HEPA filter for Fortuna 900 - 915x457x115 mm 9.000.050.002 Main HEPA filter for Fortuna 1200 - 1220x457x115 mm 9.000.050.003 Main HEPA filter Fortuna 1500 - 1525x457x115 mm 9.000.050.004...
Page 35: Quality Testing Of The Fortuna Cabinets
HEPA filter test certificates and an instruction manual, shipped with the cabinet. 10.1 Test terms and definitions Nominal value Default value as specified by LaboGene. Measured value Value measured at the location of the sterile cabinet. Tolerance Acceptable deviation from the nominal value.
Page 36: Test Information
A number of optional components can be fitted to the Fortuna cabinets. The cabinets can be ordered with these options or the options can be retro-fitted by trained service technicians. The most common options are listed below. Contact your distributor or LaboGene for availability of other options. 11.1 LED light As an option to the traditional fluorescent light tubes, LED light can be fitted.
Page 37: Pir Sensor
Utility valves Utility valves are mounted in the side windows as default. The connection to the utility supplies cannot be done by LaboGene. If optional valves for utilities are delivered, make sure that local rules and regulations are complied with during installation and use. It is generally recommended, to use an authorized technician for this kind of work.
Page 47: Annex 2 - Service Log Book
Instruction manual for Fortuna Annex 2 - Service log book Type: Product name: Serial no.: Supplier: Service interval Location Item No. 700745 12062017QA01 Page 47 of 49 CopyRight © 2017...
Page 48: Annex 3 - Decontamination Statement
Instruction manual for Fortuna Annex 3 - Decontamination statement Statement regarding personal safety for repair/inspection ScanLaf is legally obliged to protect its employees from all dangers. We therefore kindly ask you to copy and complete this statement before work is commenced. Subject: Service report no.

This manual is also suitable for:

Fortuna 1200 Fortuna 1500 Fortuna 1800
