3.1 Programming with mikroBootloader

You can program the microcontroller with a
bootloader which is preprogrammed by default.
To transfer .hex file from a PC to MCU you need
bootloader software (mikroBootloader USB HID)
which can be downloaded from:
download.mikroe.com/examples/starter-boards/clicker-2/
pic32mz/clicker-2-pic32mz-mikrobootloader-usb-hid-v100.zip
After the mikroBootloader software is downloaded,
unzip it to desired location and start it.
clicker_2_pic32mz_bootloader.zip
WinRAR ZIP archive
clicker_2_pic32mz_bootloader
File folder
Software
File folder
Firmware
File folder
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
mikroBootloader USB HID.exe
Bootloader tool for mikroElektron...
mikroElektronika
Clicker 2 PIC32MZ USB HID
Bootloader v1.300.hex
HEX File
step 1 – Connecting clicker 2 for PIC32MZ

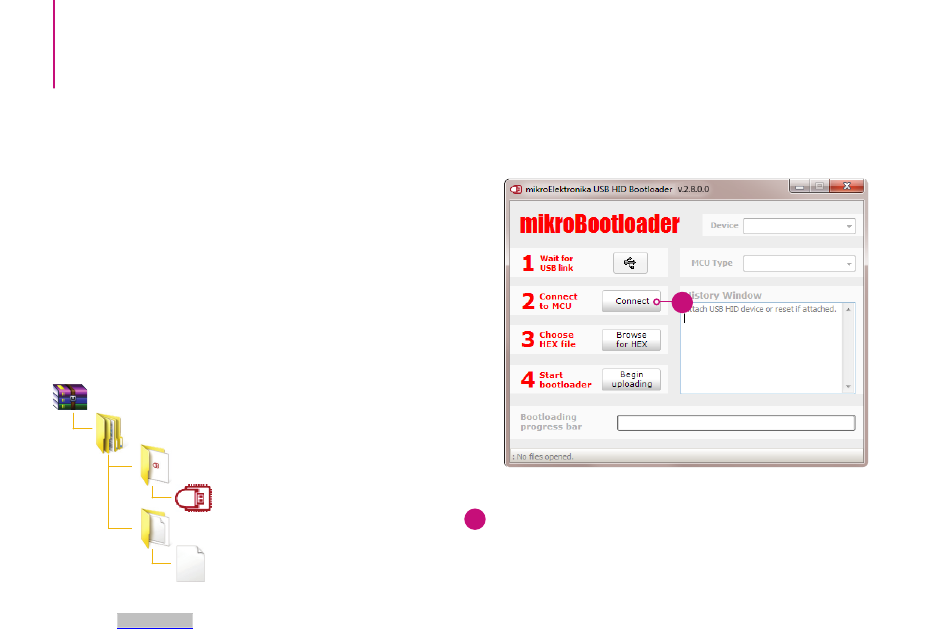

Figure 3-2: USB HID mikroBootloader window
To start, connect the USB cable, or if already connected
1
press the Reset button on your Clicker 2 for PIC32MZ. Click
the Connect button within 5s to enter the bootloader mode,
otherwise existing microcontroller program will execute.
Page 9
