MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild dish soap. IMPORTANT: Keep liquids
away from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
The console requires activation. If you have not
activated the console, see assembly step 17 on
page 15.
If the handgrip heart rate monitor does not function
properly, see step 5 on page 20.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
Using a standard
screwdriver,
remove the Top
Shield (41).

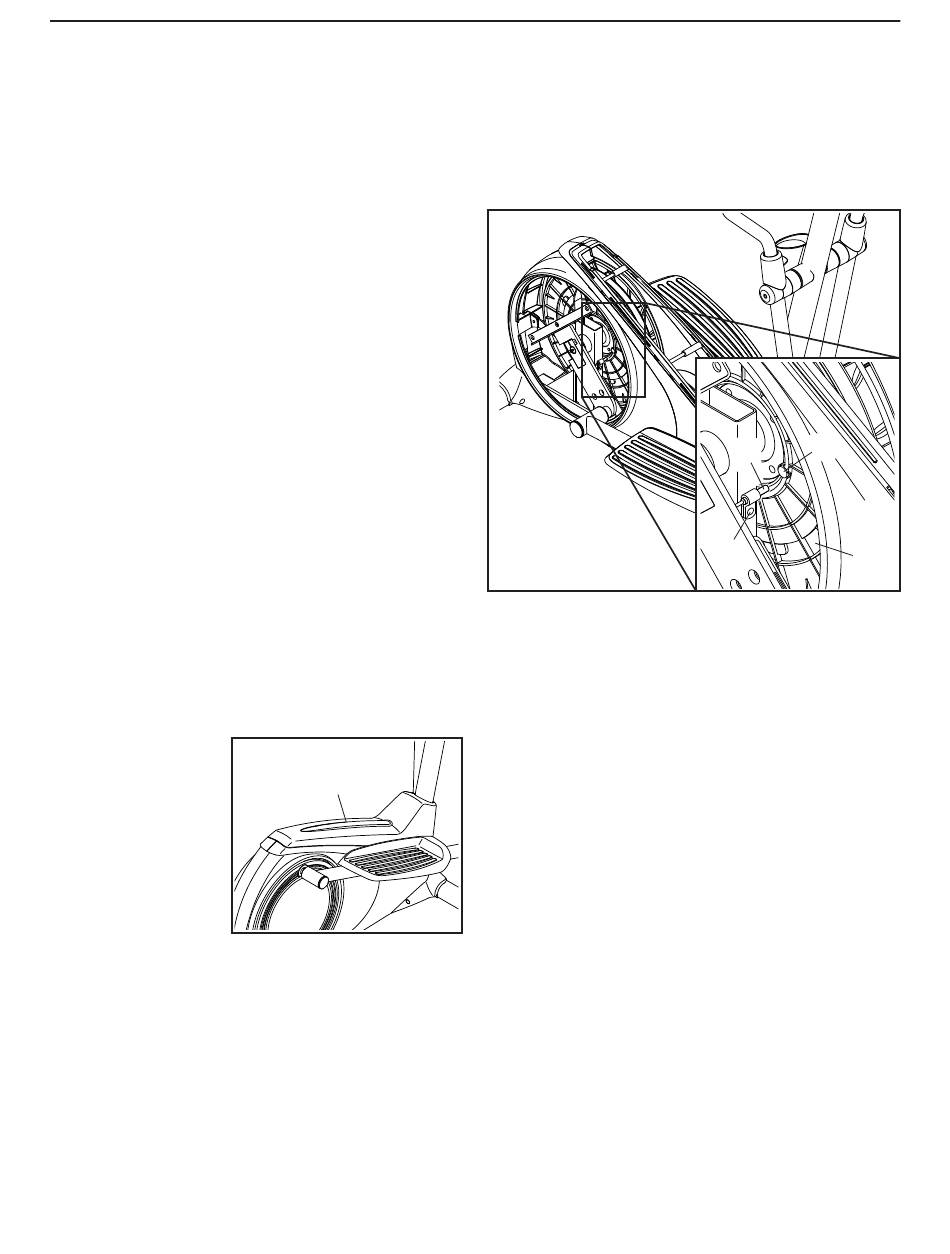

Note: For clarity, the right pedal disc is not shown in the
drawing below.
Locate the Reed Switch (53). Slightly loosen the
M4 x 16mm Screw (52).
Next, rotate the Pulley (61) until a Magnet (58) is
aligned with the Reed Switch (53). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (52). Rotate the Pulley
for a moment.
Repeat these actions until the console displays correct
feedback.
41
When the reed switch is correctly adjusted, reattach
the top shield.
25
58
53
52
