Pro-Form CADENCE LE User Manual page 12

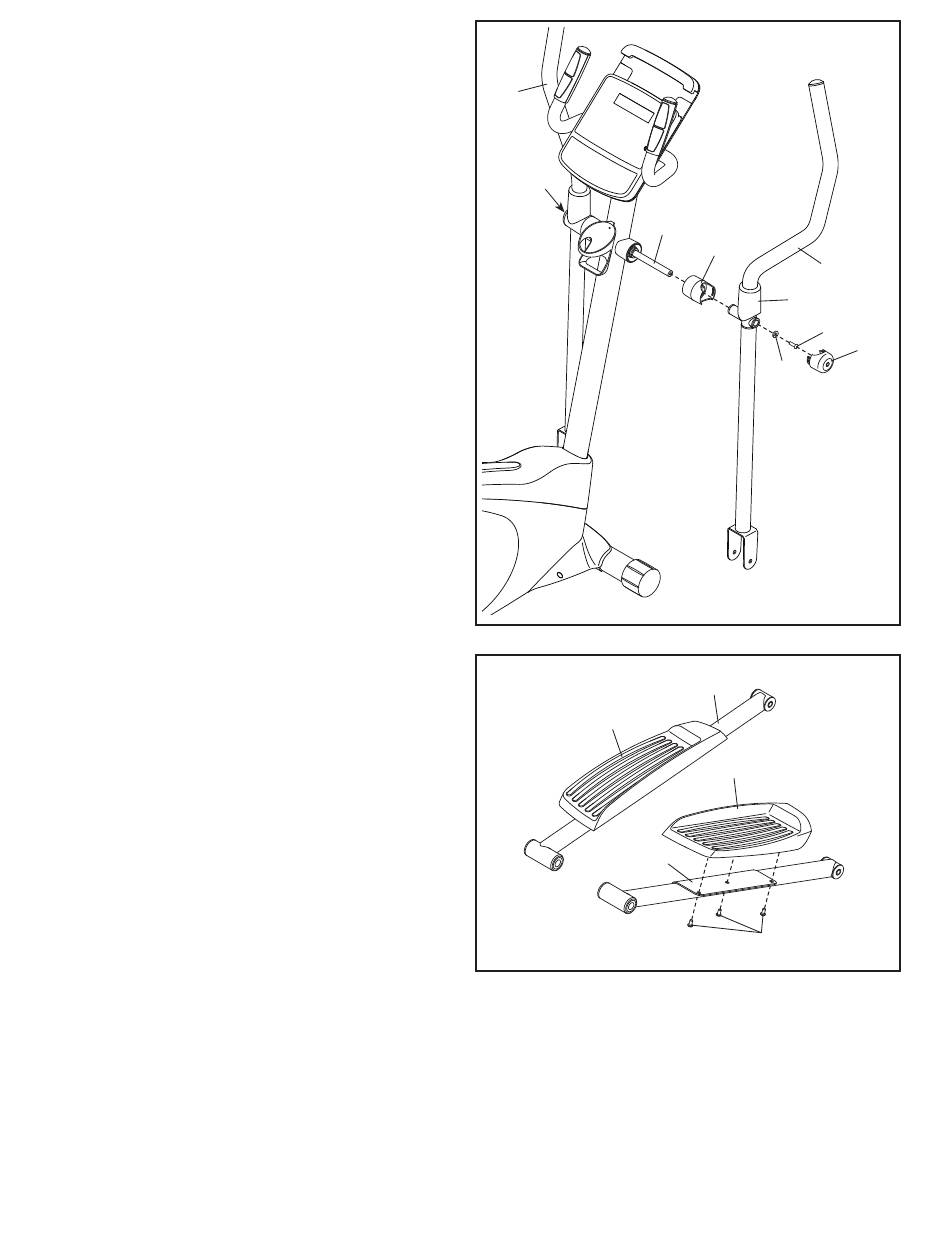

11. Orient an Upper Body Arm Spacer (47) as
shown, and slide it onto the right side of the
Pivot Axle (26).
Next, slide the Right Upper Body Arm (8) onto
the right side of the Pivot Axle (26).
Repeat these actions on the other side of the
elliptical.
Next, tighten an M8 x 25mm Screw (56) with an
M8 Washer (55) into each end of the Pivot Axle
(26) at the same time.
Next, slide the right Upper Body Arm Cover
(42) upward. Then, press the tabs on an Axle
Cap (46) into the Upper Body Arm Spacer (47).
Repeat this action on the other side of the
elliptical.
Then, slide the Upper Body Arm Cover (42)
downward to cover the M8 x 41mm Bolts (not
shown). Repeat this action on the other side
of the elliptical.
12. Identify the Right Pedal (14) and the Right Pedal
Arm (12).
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 10mm Screws (27);
start all the Screws, and then tighten them.
Attach the Left Pedal (13) to the Left Pedal
Arm (11) in the same way.
11
6
56
12
13
12
26
47
8
42
56
55
11
14
12
27
46
