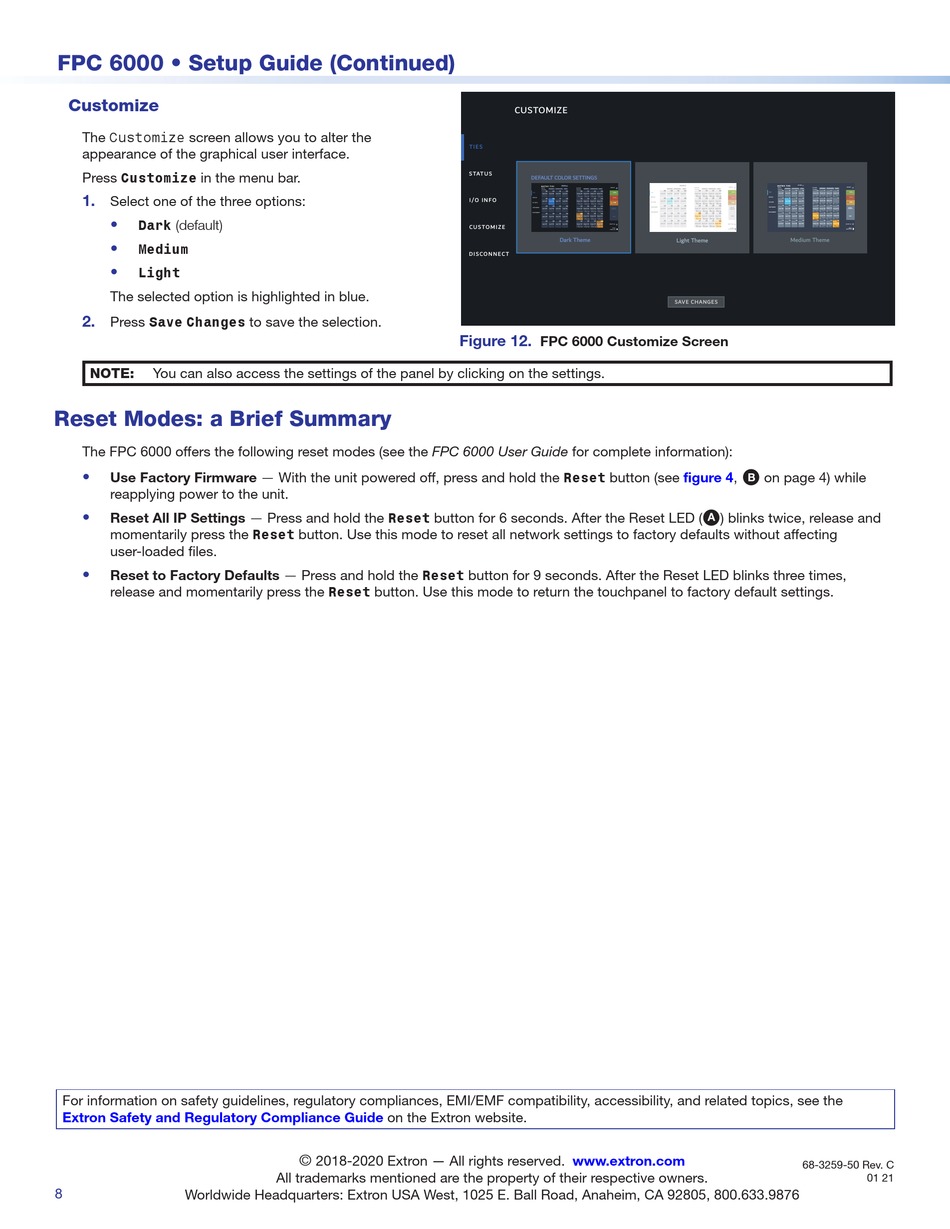

FPC 6000 • Setup Guide (Continued)
Customize
The Customize screen allows you to alter the
appearance of the graphical user interface.
Press Customize in the menu bar.
1.
Select one of the three options:
•
Dark (default)
•
Medium
•
Light
The selected option is highlighted in blue.
2.
Press Save Changes to save the selection.
NOTE:
You can also access the settings of the panel by clicking on the settings.
Reset Modes: a Brief Summary
The FPC 6000 offers the following reset modes (see the FPC 6000 User Guide for complete information):
•
Use Factory Firmware — With the unit powered off, press and hold the Reset button (see
reapplying power to the unit.
•
Reset All IP Settings — Press and hold the Reset button for 6 seconds. After the Reset LED (
momentarily press the Reset button. Use this mode to reset all network settings to factory defaults without affecting
user-loaded files.
•
Reset to Factory Defaults — Press and hold the Reset button for 9 seconds. After the Reset LED blinks three times,
release and momentarily press the Reset button. Use this mode to return the touchpanel to factory default settings.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
8
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
on the Extron website.
©
2018-2020 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
