Select All

1.
Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change
to orange.
2.
Press Select All. All the output buttons are selected. The Take button becomes active and a new Break button is also
available.
3.
Press Take to tie the selected input to all outputs, or press Break to break all existing ties to the selected input.
Save Presets (Global Presets only)
NOTE: To save rooms or room presets, use Simple Instruction Set™ commands (see the user guide for your matrix switcher).
The FPC 6000 can save global presets and recall global and room presets.
1.
Press Presets to open the presets menu.
2.
Press Save As.... A drop-down menu shows all the previously saved and unassigned presets.
3.
Select a preset. You can overwrite an existing preset or select [unassigned] and create a new preset.
4.
If you select an unassigned preset, an on-screen keyboard opens. Enter a name for the preset.
5.
Press Submit on the keyboard (for a new preset) or press Save Preset to overwrite an existing preset.
Recall Presets
When you recall a preset, it overwrites the current configuration for the matrix switcher.
1.
Press Presets to open the presets menu.
2.
Press Recall from....
3.
Select either Global or Room from the Preset Type menu.
•
If you select Global, a list of global presets appears. Select a preset and press Recall Preset.
•
If you select Room, a list of rooms appears. Select a room. A list of presets for that room appears. Select a preset and press

Recall Preset.

Status
Press the Status menu button.
The Status screen is read-only and provides
information about the status of the matrix switcher.
I/O Info
The I/O Info screen allows you to find complete
information about a single input or output.
1.
Press I/O Info in the menu bar.
2.
Select either the Inputs or Outputs tab.
•
To select Inputs, press an input button.
If there are any tied outputs, they are listed
on the right of the screen.
•
To select Outputs, press any output
button. If it is tied to an input, that input is
shown on the right of the screen.
SYSTEM STATUS
TEMPERATURE
T I E S
POWER SUPPLY FANS
Primary PS1 status PASS
S TAT U S
Redundant PS2 status FAIL
I /O I N F O
+12 Volts (Primary) PASS 12.43V
+12 Volts (redundant) FAIL OV
C U S TO M I Z E
D I S C O N N E C T
LINKLICENSE

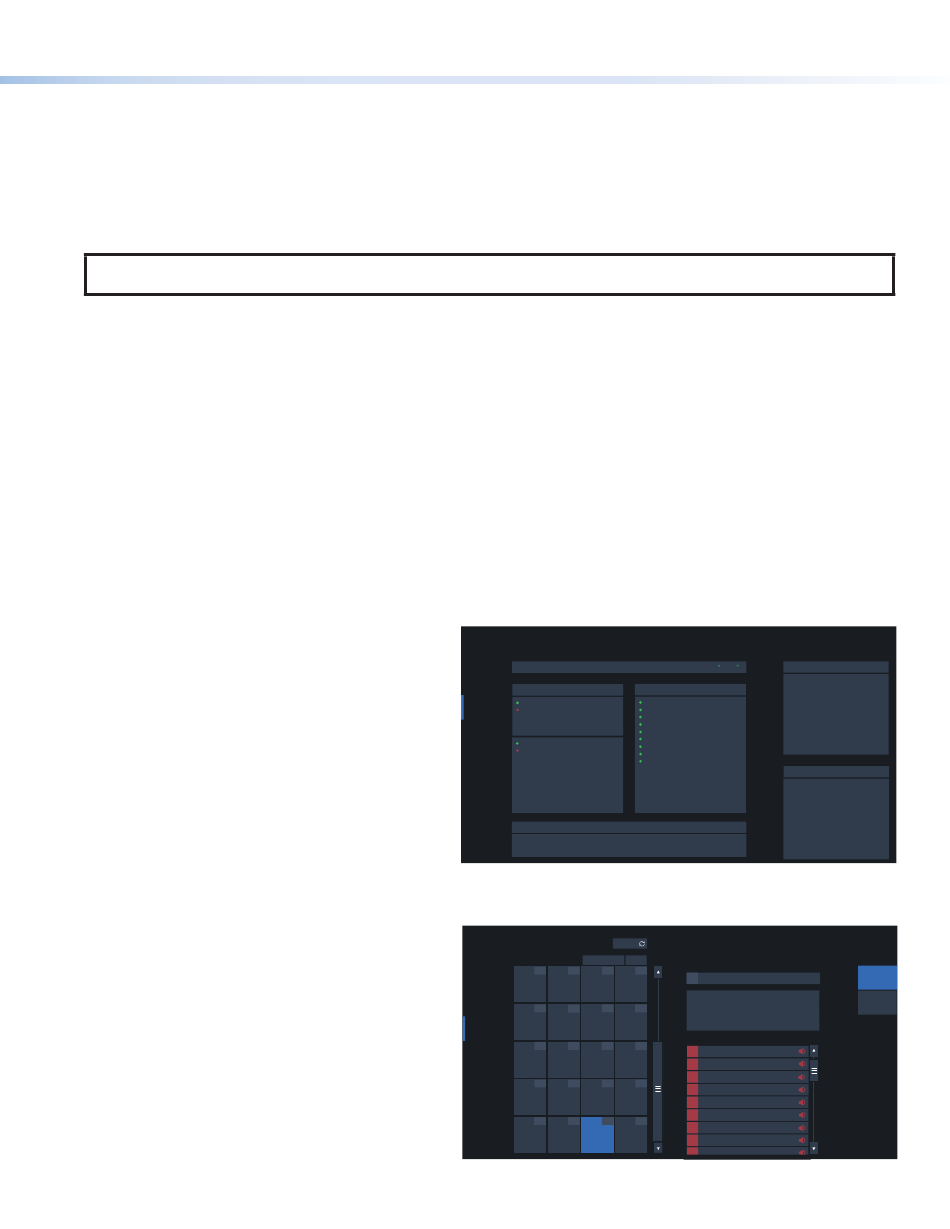

Figure 10.
FPC 6000 Status Screen
I/O INFORMATION
REFRES H
INP UT
Grid (Standard) Numpad
Viewing Mode:
13 14 15 16
T I E S
Input 13 Input 14 Input 15 Input 16
S TAT U S
17 18 19 20
Input 17 Input 18 Input 19 Input 20
I /O I N F O
21 22 23 24
C U S TO M I Z E
Input 21 Input 22 Input 23 Input 24
D I S C O N N E C T
25 26 27 28
Input 25 Input 26 Input 27 Input 28
29 30 31 32
Input 29 Input 30 Input 31 Input 32
Figure 11.
FPC 6000 I/O Info Screen
SYSTEM INFORMATION
PASS 86 F / 3O C D E V I C E
FOX3-Matrix-320x-19-D8-36
Model
Part Number
FAN 1 PASS 2066
FAN 2 PASS 2892
Firmware
FAN 3 PASS 2094
Firmware Date
FAN 4 PASS 2064
Date
FAN 5 PASS 2868
FAN 6 PASS 2094
Time
FAN 7 PASS 2068
FAN 8 PASS 2870
FAN 9 PASS 2071
S E R I A L P O R T
Port Type
Baud Rate
Data Bits
Parity
Stop Bits
Flow Control
Selected Input:
3 1 I n p u t 3 1
SFP Module Status FINI
Board Config Type Slot 4, Non-reclocking Singlem
Laser Status 1 (Enable)
Re-clocker status 5 (10.0 Gbps)
Tied Outputs:
1
O u t p u t 1
2 O u t p u t 2
3 O u t p u t 3
4 O u t p u t 4
5
O u t p u t 5
O u t p u t 6
6
O u t p u t 7
7
O u t p u t 8
8
9 O u t p u t 9
FOX3 Matrix 320x
60-1578-02
1.01.0002
04 Nov 2020 17:03 U
17 Nov 2020
14:32:17
RS-232
9600
8
N
1
N
Inputs
Outputs
