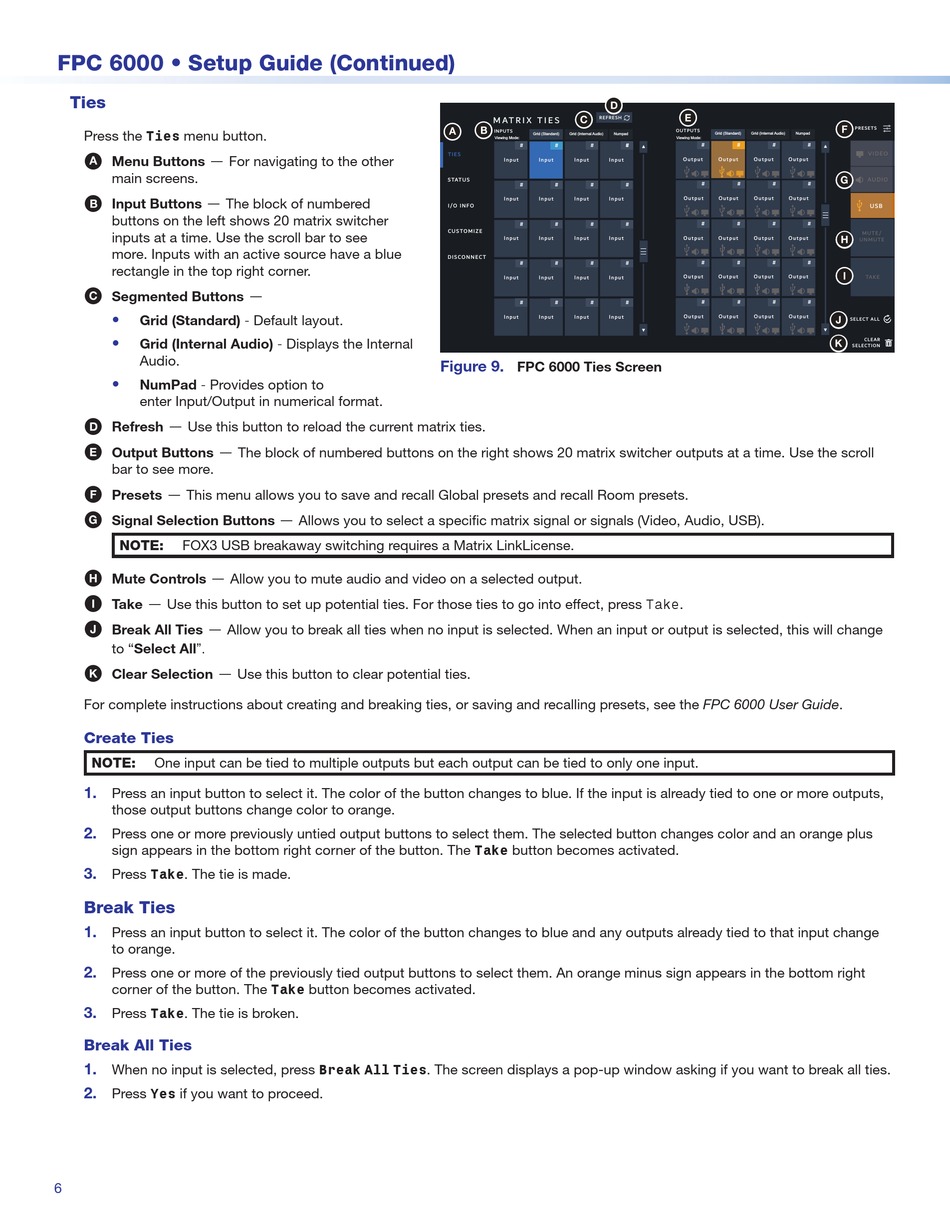

FPC 6000 • Setup Guide (Continued)
Ties
Press the Ties menu button.
—
A
Menu Buttons For navigating to the other
main screens.
—
B Input Buttons The block of numbered
buttons on the left shows 20 matrix switcher
inputs at a time. Use the scroll bar to see
more. Inputs with an active source have a blue
rectangle in the top right corner.
C
Segmented Buttons
•
Grid (Standard) - Default layout.
•
Grid (Internal Audio) - Displays the Internal
Audio.
•
NumPad - Provides option to
enter Input/Output in numerical format.
—
D Refresh Use this button to reload the current matrix ties.
—
E
Output Buttons
bar to see more.
—
F Presets This menu allows you to save and recall Global presets and recall Room presets.
G
Signal Selection Buttons
NOTE: FOX3 USB breakaway switching requires a Matrix LinkLicense.
—
H
Mute Controls Allow you to mute audio and video on a selected output.
—
I Take Use this button to set up potential ties. For those ties to go into effect, press Take.
—
J Break All Ties Allow you to break all ties when no input is selected. When an input or output is selected, this will change
to "Select All".
—
K Clear Selection
For complete instructions about creating and breaking ties, or saving and recalling presets, see the FPC 6000 User Guide.
Create Ties
NOTE: One input can be tied to multiple outputs but each output can be tied to only one input.
1.
Press an input button to select it. The color of the button changes to blue. If the input is already tied to one or more outputs,
those output buttons change color to orange.
2.
Press one or more previously untied output buttons to select them. The selected button changes color and an orange plus
sign appears in the bottom right corner of the button. The Take button becomes activated.
3.
Press Take. The tie is made.
Break Ties
1.
Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change
to orange.
2.
Press one or more of the previously tied output buttons to select them. An orange minus sign appears in the bottom right
corner of the button. The Take button becomes activated.
3.
Press Take. The tie is broken.
Break All Ties
1.
When no input is selected, press Break All Ties. The screen displays a pop-up window asking if you want to break all ties.
2.
Press Yes if you want to proceed.
6
—
The block of numbered buttons on the right shows 20 matrix switcher outputs at a time. Use the scroll
—
Allows you to select a specific matrix signal or signals (Video, Audio, USB).
Use this button to clear potential ties.
D D D
C C C
M AT R I X T I E S
RE F RE S H
B B B
A A A
INPUTS
Grid (Standard) Grid (Internal Audio) Numpad
Viewing Mode:
# # #
T I E S
I n p u t I n p u t I n p u t I n p u t
S TAT U S
# # #
I n p u t I n p u t I n p u t I n p u t
I /O I N F O
#
# #
C U S TO M I Z E
I n p u t I n p u t I n p u t I n p u t
D I S C O N N E C T
# # #
I n p u t I n p u t I n p u t I n p u t
# # #
I n p u t I n p u t I n p u t I n p u t
Figure 9.
FPC 6000 Ties Screen
E E E
O UT PU TS
Grid (Standard) Grid (Internal Audio) Numpad
Viewing Mode:
# # #
# #
O u t p u t O u t p u t O u t p u t O u t p u t
# # #
# # #
O u t p u t O u t p u t O u t p u t O u t p u t
# # # #
O u t p u t O u t p u t O u t p u t O u t p u t
# # # # #
#
O u t p u t O u t p u t O u t p u t O u t p u t
O u t p u t
# # # #
O u t p u t O u t p u t O u t p u t O u t p u t
F F F
P RE SE TS
#
VI DEO VI DEO
G G G
AUDI O AU DI O
#
#
US B
#
M UT E/
H H H
U N M UTE
#
I I I
TA KE
#
J J J
SE LEC T A L L
K K K C LEA R
SE LEC T IO N
