Maintenance by the operator
6.5

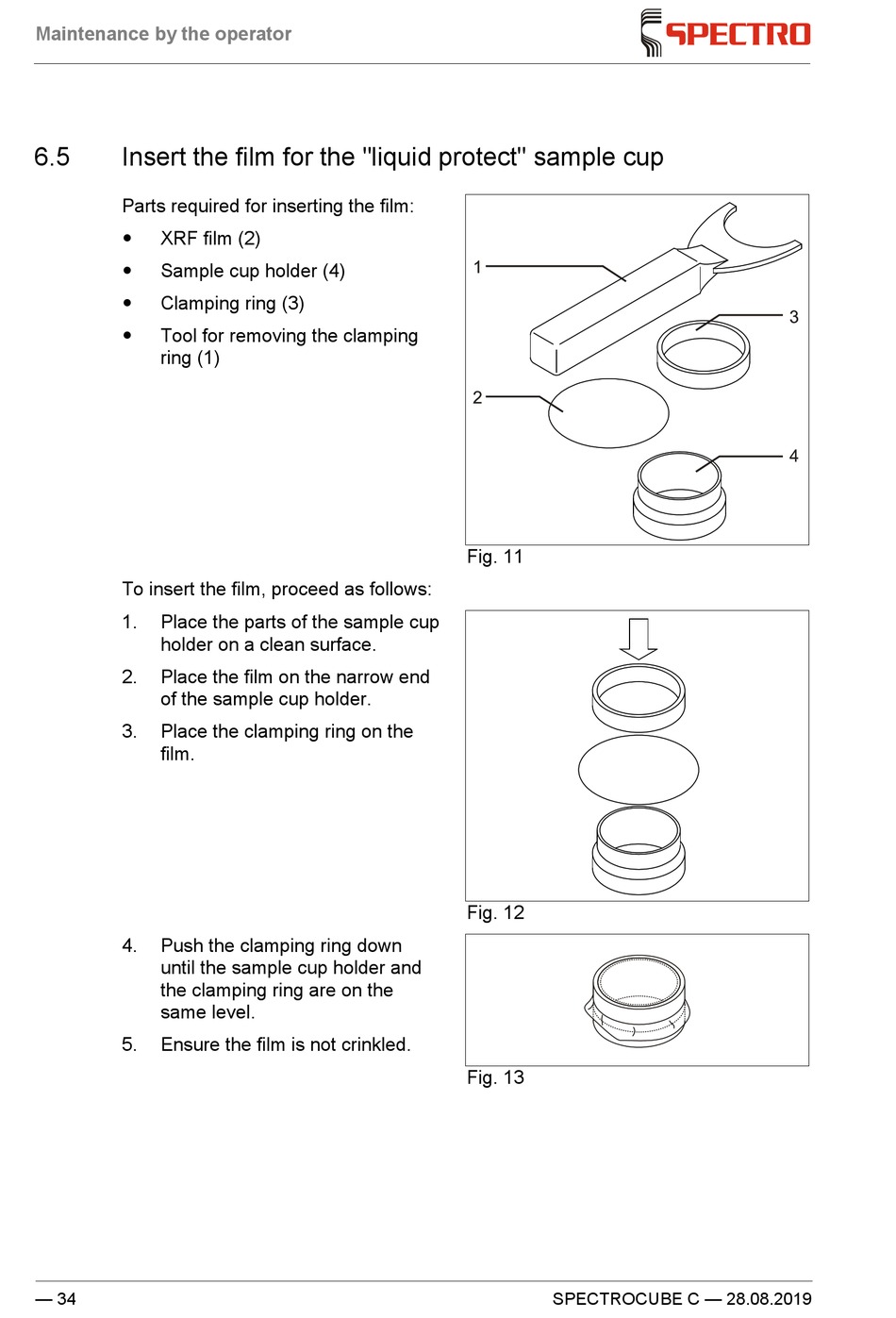

Insert the film for the "liquid protect" sample cup

Parts required for inserting the film:
XRF film (2)

Sample cup holder (4)

Clamping ring (3)

Tool for removing the clamping

ring (1)
To insert the film, proceed as follows:
1. Place the parts of the sample cup
holder on a clean surface.
2. Place the film on the narrow end
of the sample cup holder.
3. Place the clamping ring on the
film.
4. Push the clamping ring down
until the sample cup holder and
the clamping ring are on the
same level.
5. Ensure the film is not crinkled.
