Operation

5.1

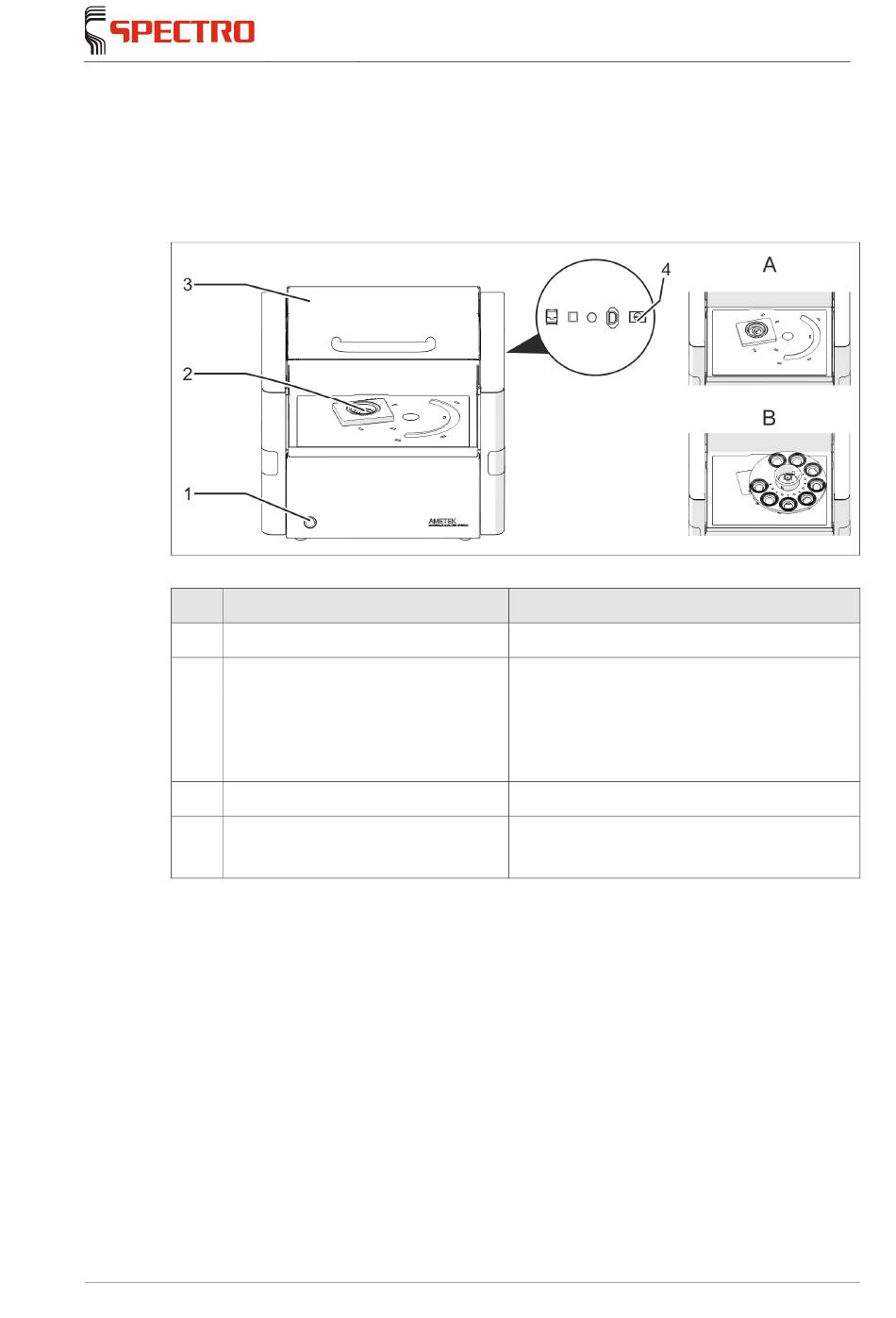

Overview of controls

Fig. 6
No. Control element
1 Pushbutton
2 Measurement position:
A Single sample holder / single
sample rotation
B Sample tray
3 Sample chamber lid
4 Key switch with removable key
(rear of instrument)
SPECTROCUBE C — 28.08.2019
Function
Used to start a measurement
Positioning of sample to be measured
Used to open and close the sample chamber
Horizontal position: ON setting
Vertical position: OFF setting
