Operation
5.5.1

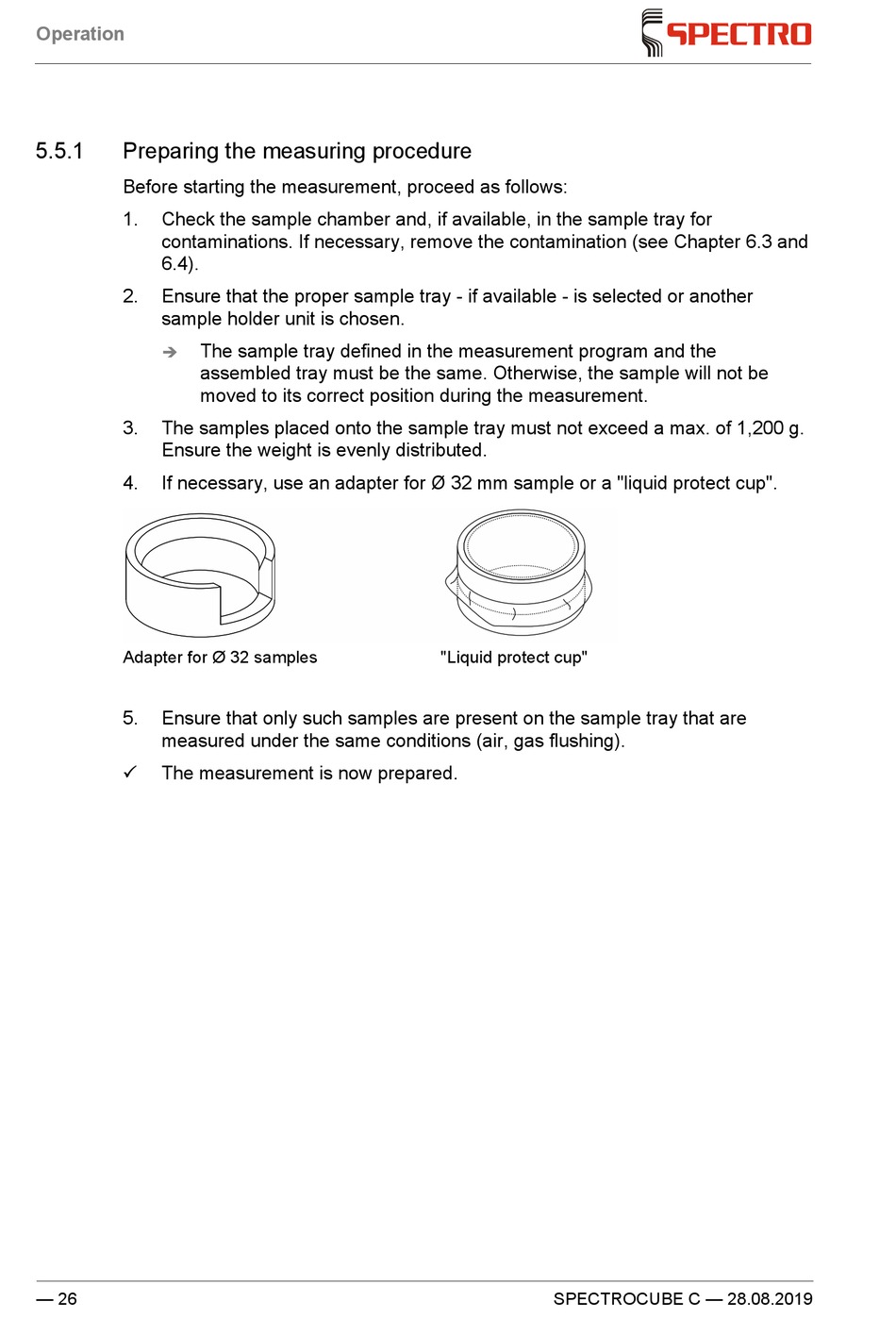

Preparing the measuring procedure

Before starting the measurement, proceed as follows:
1. Check the sample chamber and, if available, in the sample tray for
contaminations. If necessary, remove the contamination (see Chapter 6.3 and
6.4).
2. Ensure that the proper sample tray - if available - is selected or another
sample holder unit is chosen.
The sample tray defined in the measurement program and the

assembled tray must be the same. Otherwise, the sample will not be
moved to its correct position during the measurement.
3. The samples placed onto the sample tray must not exceed a max. of 1,200 g.
Ensure the weight is evenly distributed.
4. If necessary, use an adapter for Ø 32 mm sample or a "liquid protect cup".
Adapter for Ø 32 samples
5. Ensure that only such samples are present on the sample tray that are
measured under the same conditions (air, gas flushing).
The measurement is now prepared.

— 26
"Liquid protect cup"
SPECTROCUBE C — 28.08.2019
